S400B Ø80 Heavy Split Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	80 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400B Ø80 Heavy Split Anti-Slip

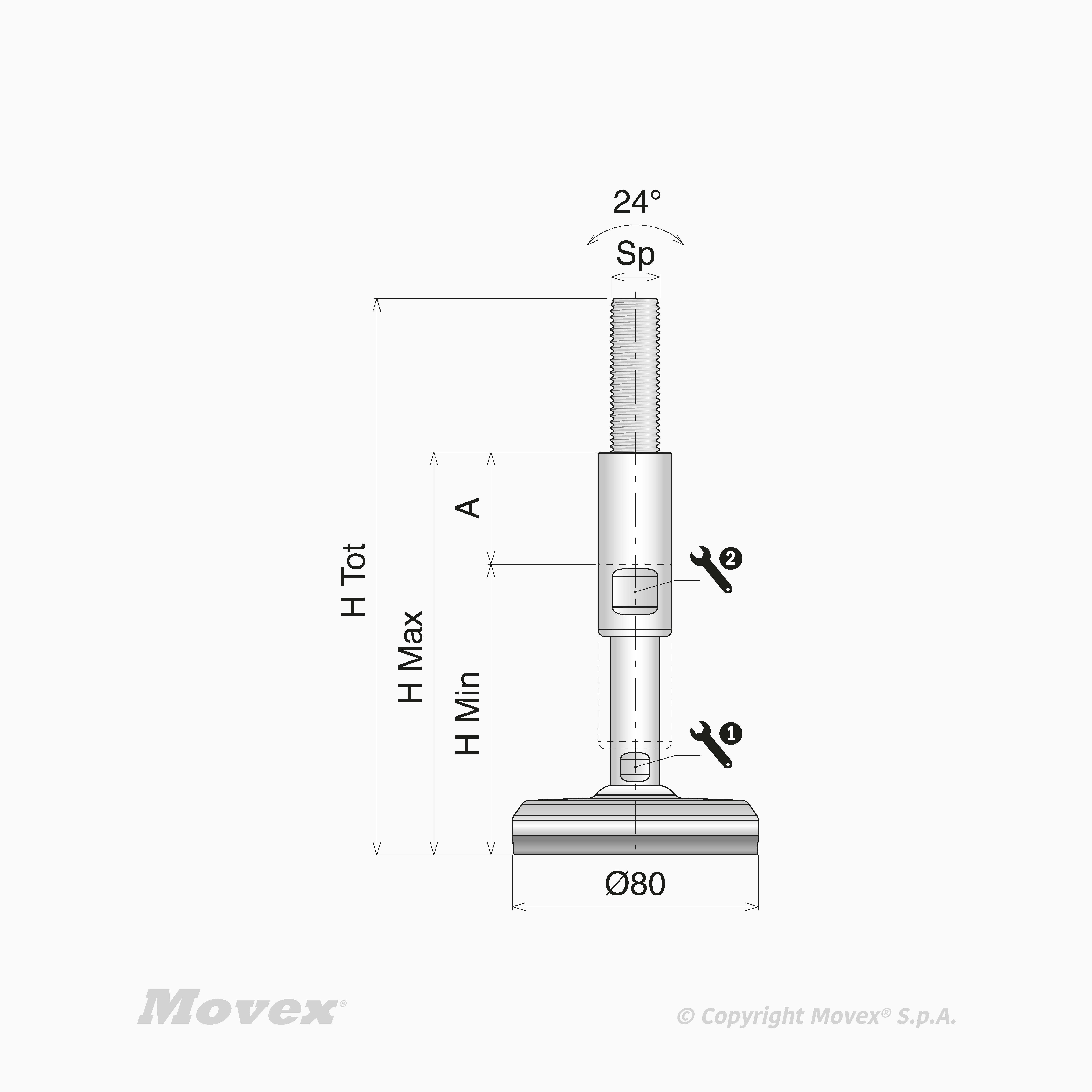

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902767	45 mm	Standard	Stainless steel	M12	182.5	Heavy Split	102.5 mm	147.5 mm	10 mm	17 mm	-25÷100 °C
P902768	65 mm	Standard	Stainless steel	M12	231.5	Heavy Split	132.5 mm	197.5 mm	10 mm	17 mm	-25÷100 °C
P902769	45 mm	Standard	Stainless steel	M16	182.5	Heavy Split	102.5 mm	147.5 mm	13 mm	19 mm	-25÷100 °C
P902770	65 mm	Standard	Stainless steel	M16	231.5	Heavy Split	132.5 mm	197.5 mm	13 mm	19 mm	-25÷100 °C
P902771	45 mm	Standard	Stainless steel	M20	182.5	Heavy Split	102.5 mm	147.5 mm	17 mm	24 mm	-25÷100 °C
P902772	65 mm	Standard	Stainless steel	M20	231.5	Heavy Split	132.5 mm	197.5 mm	17 mm	24 mm	-25÷100 °C
P902773	45 mm	Standard	Stainless steel	M24	182.5	Heavy Split	102.5 mm	147.5 mm	19 mm	30 mm	-25÷100 °C
P902774	65 mm	Standard	Stainless steel	M24	231.5	Heavy Split	132.5 mm	197.5 mm	19 mm	30 mm	-25÷100 °C
P902775	45 mm	Standard	Stainless steel	M30	182.5	Heavy Split	102.5 mm	147.5 mm	24 mm	36 mm	-25÷100 °C
P902776	65 mm	Standard	Stainless steel	M30	231.5	Heavy Split	132.5 mm	197.5 mm	24 mm	36 mm	-25÷100 °C
P902777	65 mm	Standard	Stainless steel	M30	292.5	Heavy Split	192.5 mm	257.5 mm	24 mm	36 mm	-25÷100 °C
P902778	45 mm	Standard	Stainless steel	M36	182.5	Heavy Split	102.5 mm	147.5 mm	30 mm	42 mm	-25÷100 °C
P902779	65 mm	Standard	Stainless steel	M36	231.5	Heavy Split	132.5 mm	197.5 mm	30 mm	42 mm	-25÷100 °C
P902780	65 mm	Standard	Stainless steel	M36	292.5	Heavy Split	192.5 mm	257.5 mm	30 mm	42 mm	-25÷100 °C
