Home Leveling feet S400B S400B Ø60 Split Anti-Slip

S400B Ø60 Split Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Split
Base material:	Metal
Diameter:	60 mm
Max Load:	0÷9999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400B Ø60 Split Anti-Slip

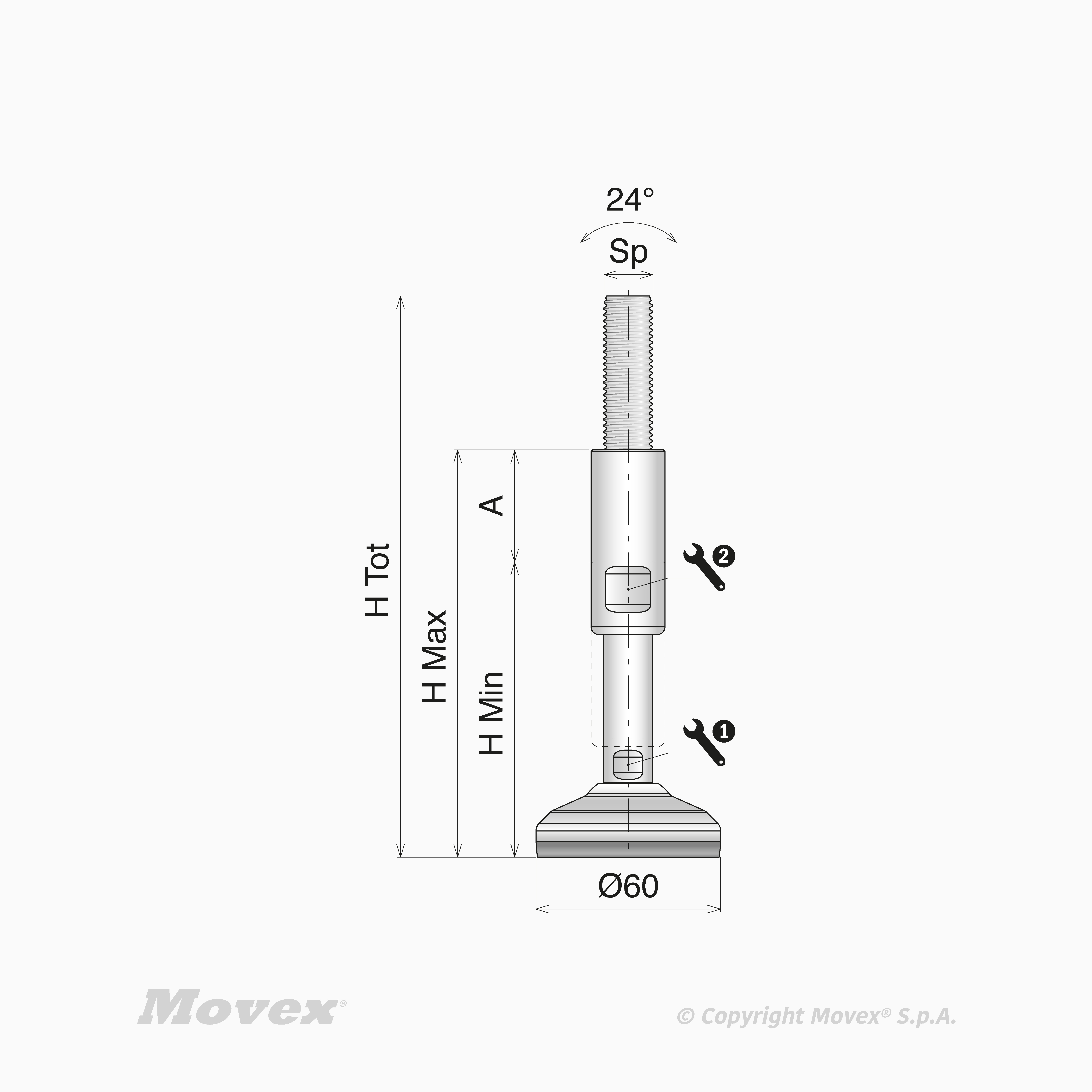

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902333	45 mm	Standard	Stainless steel	M12	184	Split	104 mm	149 mm	10 mm	17 mm	-25÷100 °C
P902334	65 mm	Standard	Stainless steel	M12	234	Split	134 mm	199 mm	10 mm	17 mm	-25÷100 °C
P902335	45 mm	Standard	Stainless steel	M16	184	Split	104 mm	149 mm	13 mm	19 mm	-25÷100 °C
P902336	65 mm	Standard	Stainless steel	M16	234	Split	134 mm	199 mm	13 mm	19 mm	-25÷100 °C
P902337	45 mm	Standard	Stainless steel	M20	184	Split	104 mm	149 mm	17 mm	24 mm	-25÷100 °C
P902338	65 mm	Standard	Stainless steel	M20	234	Split	134 mm	199 mm	17 mm	24 mm	-25÷100 °C
P902339	45 mm	Standard	Stainless steel	M24	184	Split	104 mm	149 mm	19 mm	30 mm	-25÷100 °C
P902340	65 mm	Standard	Stainless steel	M24	234	Split	134 mm	199 mm	19 mm	30 mm	-25÷100 °C
P902341	45 mm	Standard	Stainless steel	M30	184	Split	104 mm	149 mm	24 mm	36 mm	-25÷100 °C
P902342	65 mm	Standard	Stainless steel	M30	234	Split	134 mm	199 mm	24 mm	36 mm	-25÷100 °C
P902343	65 mm	Standard	Stainless steel	M30	294	Split	194 mm	259 mm	24 mm	36 mm	-25÷100 °C
P902344	45 mm	Standard	Stainless steel	M36	184	Split	104 mm	149 mm	30 mm	42 mm	-25÷100 °C
P902345	65 mm	Standard	Stainless steel	M36	234	Split	134 mm	199 mm	30 mm	42 mm	-25÷100 °C
P902346	65 mm	Standard	Stainless steel	M36	294	Split	194 mm	259 mm	30 mm	42 mm	-25÷100 °C
