S400B Ø60 Heavy Split Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	60 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400B Ø60 Heavy Split Anti-Slip

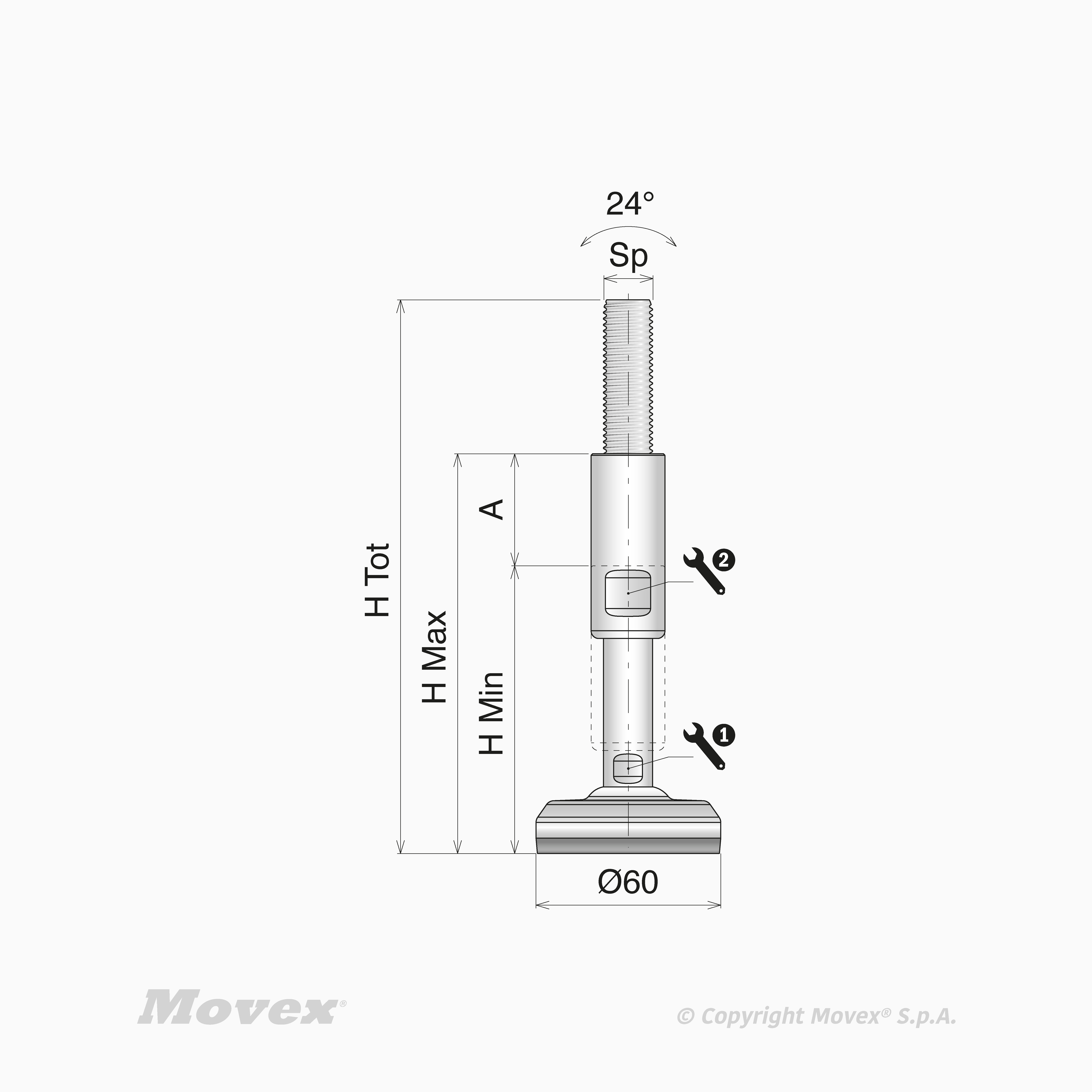

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902753	45 mm	Standard	Stainless steel	M12	181.5	Heavy Split	101.5 mm	146.5 mm	10 mm	17 mm	-25÷100 °C
P902754	65 mm	Standard	Stainless steel	M12	231.5	Heavy Split	131.5 mm	196.5 mm	10 mm	17 mm	-25÷100 °C
P902755	45 mm	Standard	Stainless steel	M16	181.5	Heavy Split	101.5 mm	146.5 mm	13 mm	19 mm	-25÷100 °C
P902756	65 mm	Standard	Stainless steel	M16	231.5	Heavy Split	131.5 mm	196.5 mm	13 mm	19 mm	-25÷100 °C
P902757	45 mm	Standard	Stainless steel	M20	181.5	Heavy Split	101.5 mm	146.5 mm	17 mm	24 mm	-25÷100 °C
P902758	65 mm	Standard	Stainless steel	M20	231.5	Heavy Split	131.5 mm	196.5 mm	17 mm	24 mm	-25÷100 °C
P902759	45 mm	Standard	Stainless steel	M24	181.5	Heavy Split	101.5 mm	146.5 mm	19 mm	30 mm	-25÷100 °C
P902760	65 mm	Standard	Stainless steel	M24	231.5	Heavy Split	131.5 mm	196.5 mm	19 mm	30 mm	-25÷100 °C
P902761	45 mm	Standard	Stainless steel	M30	181.5	Heavy Split	101.5 mm	146.5 mm	24 mm	36 mm	-25÷100 °C
P902762	65 mm	Standard	Stainless steel	M30	231.5	Heavy Split	131.5 mm	196.5 mm	24 mm	36 mm	-25÷100 °C
P902763	65 mm	Standard	Stainless steel	M30	291.5	Heavy Split	191.5 mm	256.5 mm	24 mm	36 mm	-25÷100 °C
P902764	45 mm	Standard	Stainless steel	M36	181.5	Heavy Split	101.5 mm	146.5 mm	30 mm	42 mm	-25÷100 °C
P902765	65 mm	Standard	Stainless steel	M36	231.5	Heavy Split	131.5 mm	196.5 mm	30 mm	42 mm	-25÷100 °C
P902766	65 mm	Standard	Stainless steel	M36	291.5	Heavy Split	191.5 mm	256.5 mm	30 mm	42 mm	-25÷100 °C
