Home Leveling feet S400B S400B Ø60 Anti-Slip

S400B Ø60 Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Standard
Base material:	Metal
Diameter:	60 mm
Max Load:	0÷9999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

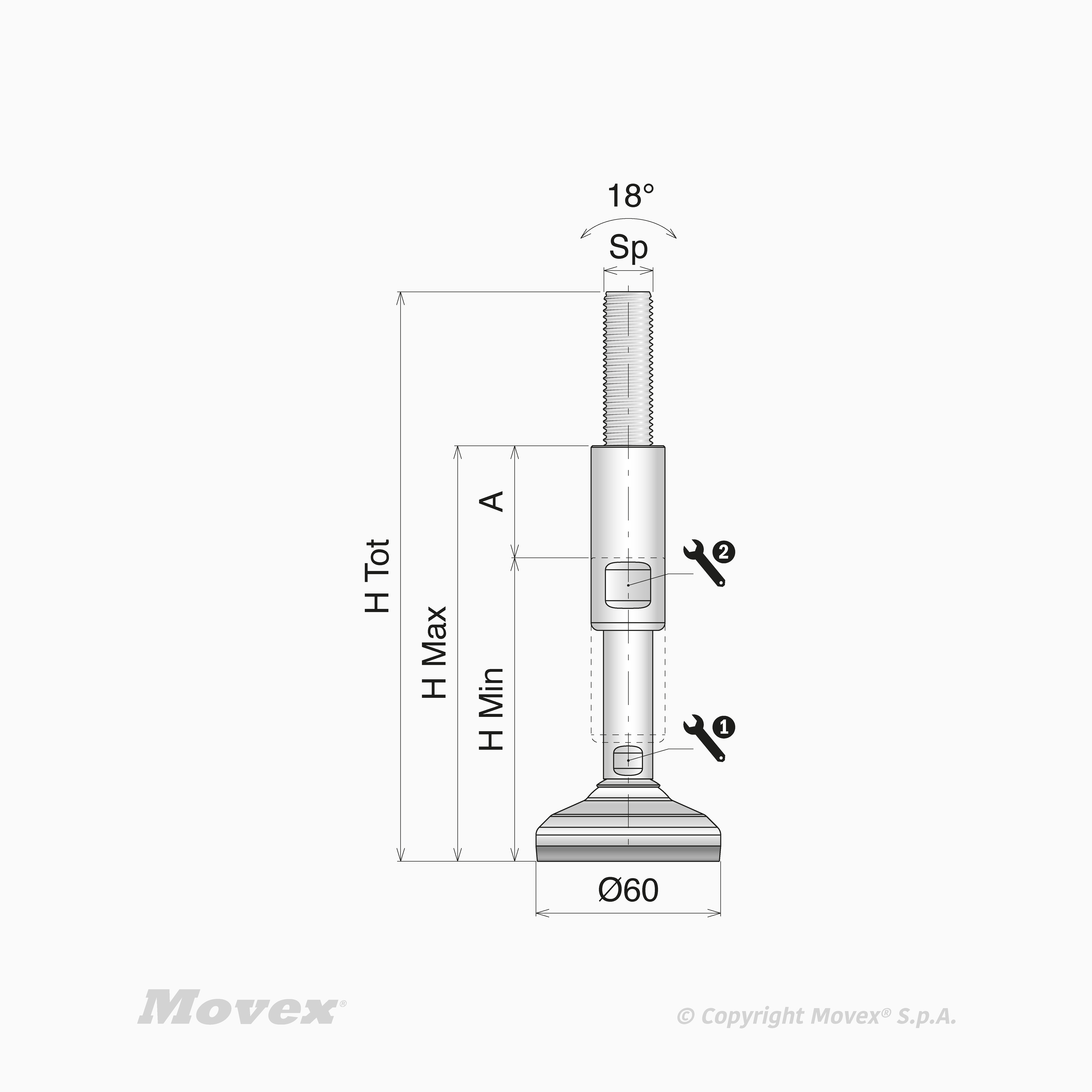

S400B Ø60 Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902123	45 mm	Standard	Stainless steel	M12	185	Standard	105 mm	150 mm	10 mm	17 mm	-25÷100 °C
P902124	65 mm	Standard	Stainless steel	M12	235	Standard	135 mm	200 mm	10 mm	17 mm	-25÷100 °C
P902125	45 mm	Standard	Stainless steel	M16	185	Standard	105 mm	150 mm	13 mm	19 mm	-25÷100 °C
P902126	65 mm	Standard	Stainless steel	M16	235	Standard	135 mm	200 mm	13 mm	19 mm	-25÷100 °C
P902127	45 mm	Standard	Stainless steel	M20	185	Standard	105 mm	150 mm	17 mm	24 mm	-25÷100 °C
P902128	65 mm	Standard	Stainless steel	M20	235	Standard	135 mm	200 mm	17 mm	24 mm	-25÷100 °C
P902129	45 mm	Standard	Stainless steel	M24	185	Standard	105 mm	150 mm	19 mm	30 mm	-25÷100 °C
P902130	65 mm	Standard	Stainless steel	M24	235	Standard	135 mm	200 mm	19 mm	30 mm	-25÷100 °C
P902131	45 mm	Standard	Stainless steel	M30	185	Standard	105 mm	150 mm	24 mm	36 mm	-25÷100 °C
P902132	65 mm	Standard	Stainless steel	M30	235	Standard	135 mm	200 mm	24 mm	36 mm	-25÷100 °C
P902133	65 mm	Standard	Stainless steel	M30	295	Standard	195 mm	260 mm	24 mm	36 mm	-25÷100 °C
P902134	45 mm	Standard	Stainless steel	M36	185	Standard	105 mm	150 mm	30 mm	42 mm	-25÷100 °C
P902135	65 mm	Standard	Stainless steel	M36	235	Standard	135 mm	200 mm	30 mm	42 mm	-25÷100 °C
P902136	65 mm	Standard	Stainless steel	M36	295	Standard	195 mm	260 mm	30 mm	42 mm	-25÷100 °C
