Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Standard
Base material:	Metal
Diameter:	60 mm
Max Load:	0÷9999 N
Fixing point:	1
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

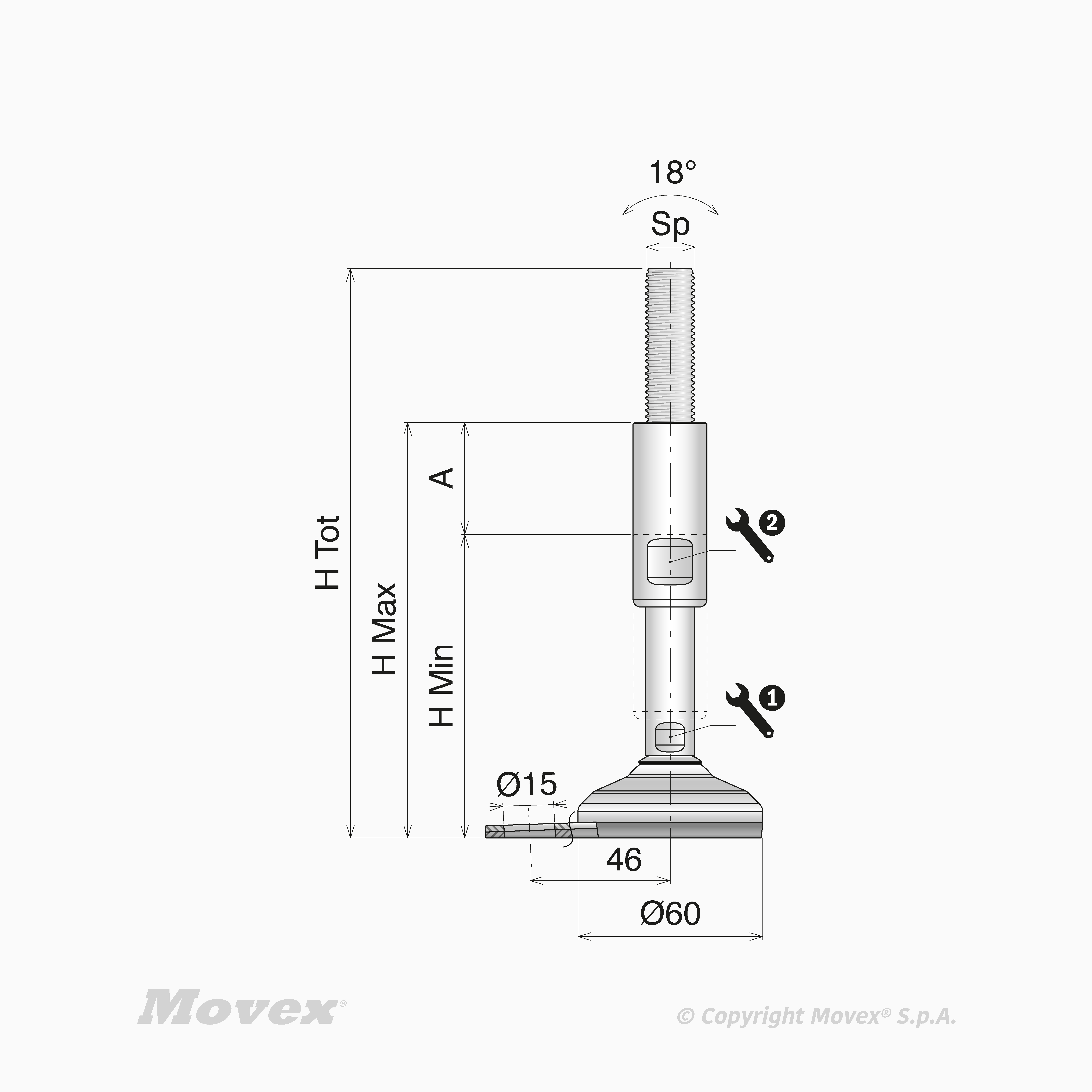

S400B Ø60 1 Fixing point Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902249	45 mm	Standard	Stainless steel	M12	185	Standard	105 mm	150 mm	10 mm	17 mm	-25÷100 °C
P902250	65 mm	Standard	Stainless steel	M12	235	Standard	135 mm	200 mm	10 mm	17 mm	-25÷100 °C
P902251	45 mm	Standard	Stainless steel	M16	185	Standard	105 mm	150 mm	13 mm	19 mm	-25÷100 °C
P902252	65 mm	Standard	Stainless steel	M16	235	Standard	135 mm	200 mm	13 mm	19 mm	-25÷100 °C
P902253	45 mm	Standard	Stainless steel	M20	185	Standard	105 mm	150 mm	17 mm	24 mm	-25÷100 °C
P902254	65 mm	Standard	Stainless steel	M20	235	Standard	135 mm	200 mm	17 mm	24 mm	-25÷100 °C
P902255	45 mm	Standard	Stainless steel	M24	185	Standard	105 mm	150 mm	19 mm	30 mm	-25÷100 °C
P902256	65 mm	Standard	Stainless steel	M24	235	Standard	135 mm	200 mm	19 mm	30 mm	-25÷100 °C
P902257	45 mm	Standard	Stainless steel	M30	185	Standard	105 mm	150 mm	24 mm	36 mm	-25÷100 °C
P902258	65 mm	Standard	Stainless steel	M30	235	Standard	135 mm	200 mm	24 mm	36 mm	-25÷100 °C
P902259	65 mm	Standard	Stainless steel	M30	295	Standard	195 mm	260 mm	24 mm	36 mm	-25÷100 °C
P902260	45 mm	Standard	Stainless steel	M36	185	Standard	105 mm	150 mm	30 mm	42 mm	-25÷100 °C
P902261	65 mm	Standard	Stainless steel	M36	235	Standard	135 mm	200 mm	30 mm	42 mm	-25÷100 °C
P902262	65 mm	Standard	Stainless steel	M36	295	Standard	195 mm	260 mm	30 mm	42 mm	-25÷100 °C
