Home Leveling feet S400B S400B Ø125 Heavy Anti-Slip

S400B Ø125 Heavy Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	125 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

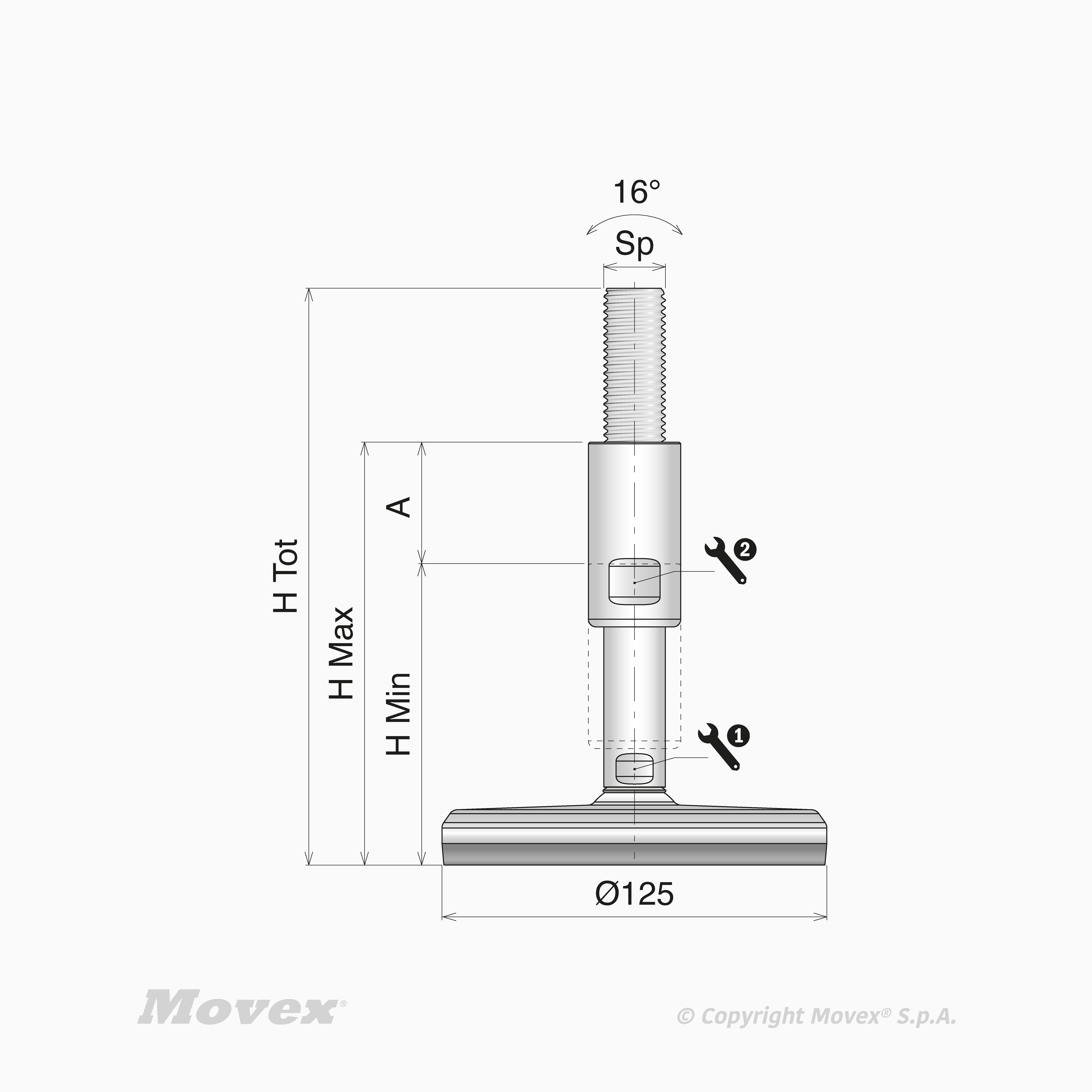

S400B Ø125 Heavy Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902515	45 mm	Standard	Stainless steel	M12	184.5	Heavy	104.5 mm	149.5 mm	10 mm	17 mm	-25÷100 °C
P902516	65 mm	Standard	Stainless steel	M12	234.5	Heavy	134.5 mm	199.5 mm	10 mm	17 mm	-25÷100 °C
P902517	45 mm	Standard	Stainless steel	M16	184.5	Heavy	104.5 mm	149.5 mm	13 mm	19 mm	-25÷100 °C
P902518	65 mm	Standard	Stainless steel	M16	234.5	Heavy	134.5 mm	199.5 mm	13 mm	19 mm	-25÷100 °C
P902519	45 mm	Standard	Stainless steel	M20	184.5	Heavy	104.5 mm	149.5 mm	17 mm	24 mm	-25÷100 °C
P902520	65 mm	Standard	Stainless steel	M20	234.5	Heavy	134.5 mm	199.5 mm	17 mm	24 mm	-25÷100 °C
P902521	45 mm	Standard	Stainless steel	M24	184.5	Heavy	104.5 mm	149.5 mm	19 mm	30 mm	-25÷100 °C
P902522	65 mm	Standard	Stainless steel	M24	234.5	Heavy	134.5 mm	199.5 mm	19 mm	30 mm	-25÷100 °C
P902523	45 mm	Standard	Stainless steel	M30	184.5	Heavy	104.5 mm	149.5 mm	24 mm	36 mm	-25÷100 °C
P902524	65 mm	Standard	Stainless steel	M30	234.5	Heavy	134.5 mm	199.5 mm	24 mm	36 mm	-25÷100 °C
P902525	65 mm	Standard	Stainless steel	M30	294.5	Heavy	194.5 mm	259.5 mm	24 mm	36 mm	-25÷100 °C
P902526	45 mm	Standard	Stainless steel	M36	184.5	Heavy	104.5 mm	149.5 mm	30 mm	42 mm	-25÷100 °C
P902527	65 mm	Standard	Stainless steel	M36	234.5	Heavy	134.5 mm	199.5 mm	30 mm	42 mm	-25÷100 °C
P902528	65 mm	Standard	Stainless steel	M36	294.5	Heavy	194.5 mm	259.5 mm	30 mm	42 mm	-25÷100 °C
