Home Leveling feet S400B S400B Ø105 Split Anti-Slip

S400B Ø105 Split Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Split
Base material:	Metal
Diameter:	105 mm
Max Load:	19999÷49999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

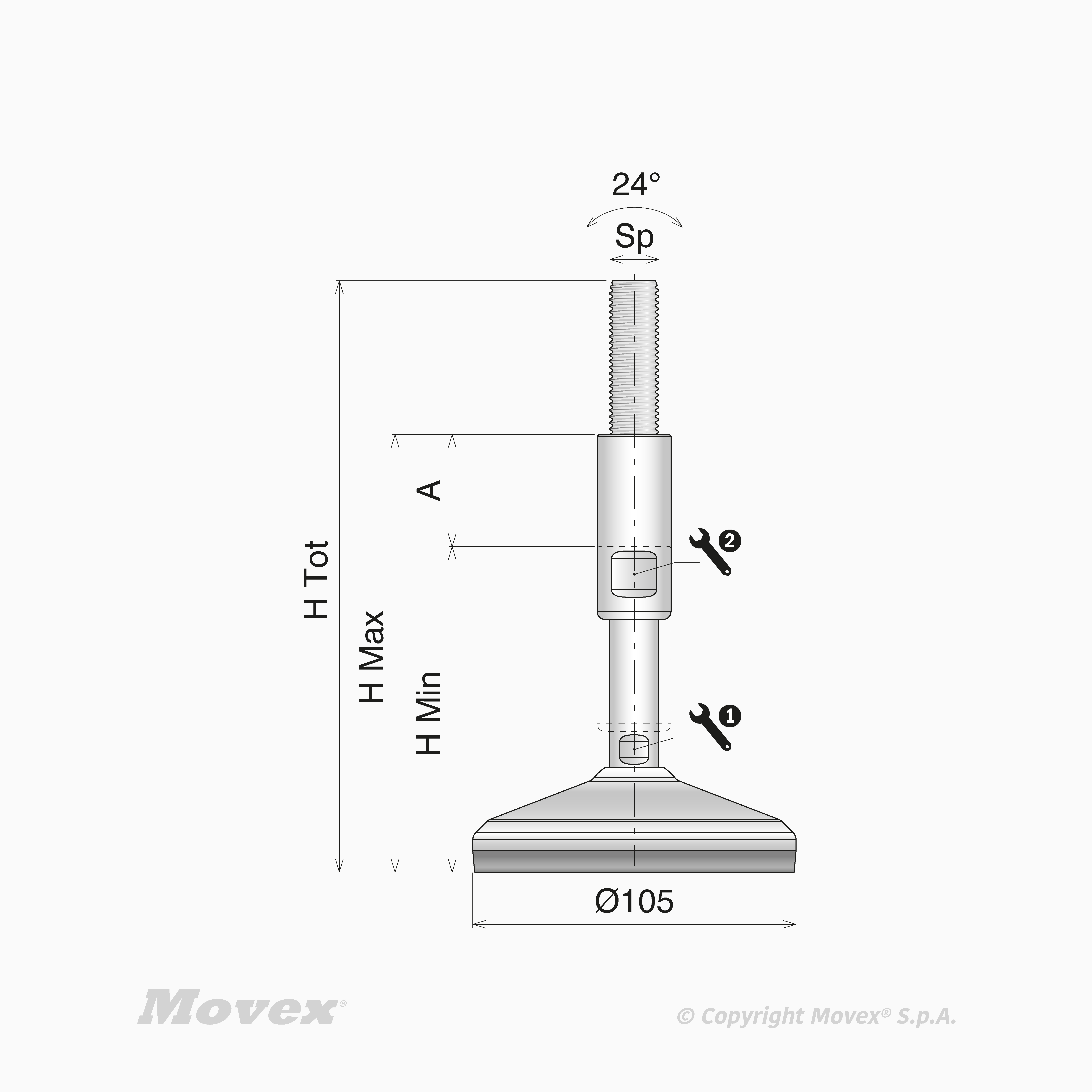

S400B Ø105 Split Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902361	45 mm	Standard	Stainless steel	M12	194	Split	114 mm	159 mm	10 mm	17 mm Max Load 12000 N	-25÷100 °C
P902362	65 mm	Standard	Stainless steel	M12	244	Split	144 mm	209 mm	10 mm	17 mm	-25÷100 °C
P902363	45 mm	Standard	Stainless steel	M16	194	Split	114 mm	159 mm	13 mm	19 mm	-25÷100 °C
P902364	65 mm	Standard	Stainless steel	M16	244	Split	144 mm	209 mm	13 mm	19 mm	-25÷100 °C
P902365	45 mm	Standard	Stainless steel	M20	194	Split	114 mm	159 mm	17 mm	24 mm	-25÷100 °C
P902366	65 mm	Standard	Stainless steel	M20	244	Split	144 mm	209 mm	17 mm	24 mm	-25÷100 °C
P902367	45 mm	Standard	Stainless steel	M24	194	Split	114 mm	159 mm	19 mm	30 mm	-25÷100 °C
P902368	65 mm	Standard	Stainless steel	M24	244	Split	144 mm	209 mm	19 mm	30 mm	-25÷100 °C
P902369	45 mm	Standard	Stainless steel	M30	194	Split	114 mm	159 mm	24 mm	36 mm	-25÷100 °C
P902370	65 mm	Standard	Stainless steel	M30	244	Split	144 mm	209 mm	24 mm	36 mm	-25÷100 °C
P902371	65 mm	Standard	Stainless steel	M30	304	Split	204 mm	269 mm	24 mm	36 mm	-25÷100 °C
P902372	45 mm	Standard	Stainless steel	M36	194	Split	114 mm	159 mm	30 mm	42 mm	-25÷100 °C
P902373	65 mm	Standard	Stainless steel	M36	244	Split	144 mm	209 mm	30 mm	42 mm	-25÷100 °C
P902374	65 mm	Standard	Stainless steel	M36	304	Split	204 mm	269 mm	30 mm	42 mm	-25÷100 °C
