S400B Ø105 Heavy Split

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	105 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

S400B Ø105 Heavy Split

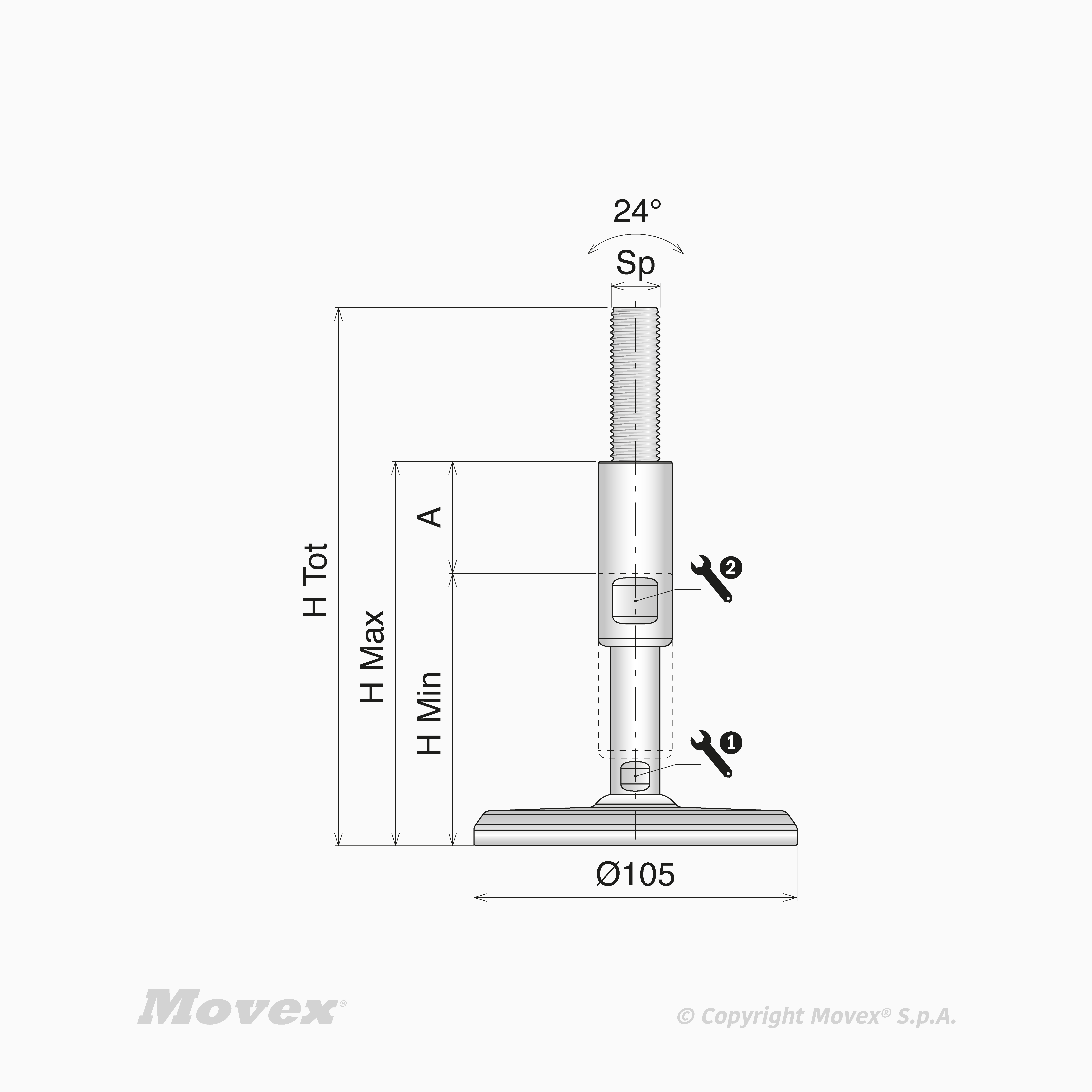

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry	Temperature range wet
Code													Actions
P902711	45 mm	Standard	Stainless steel	M12	176.5	Heavy Split	96.5 mm	141.5 mm	10 mm	17 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P902712	65 mm	Standard	Stainless steel	M12	226.5	Heavy Split	126.5 mm	191.5 mm	10 mm	17 mm	-30÷400 °C	-30÷130 °C
P902713	45 mm	Standard	Stainless steel	M16	176.5	Heavy Split	96.5 mm	141.5 mm	13 mm	19 mm	-30÷400 °C	-30÷130 °C
P902714	65 mm	Standard	Stainless steel	M16	226.5	Heavy Split	126.5 mm	191.5 mm	13 mm	19 mm	-30÷400 °C	-30÷130 °C
P902715	45 mm	Standard	Stainless steel	M20	176.5	Heavy Split	96.5 mm	141.5 mm	17 mm	24 mm	-30÷400 °C	-30÷130 °C
P902716	65 mm	Standard	Stainless steel	M20	226.5	Heavy Split	126.5 mm	191.5 mm	17 mm	24 mm	-30÷400 °C	-30÷130 °C
P902717	45 mm	Standard	Stainless steel	M24	176.5	Heavy Split	96.5 mm	141.5 mm	19 mm	30 mm	-30÷400 °C	-30÷130 °C
P902718	65 mm	Standard	Stainless steel	M24	226.5	Heavy Split	126.5 mm	191.5 mm	19 mm	30 mm	-30÷400 °C	-30÷130 °C
P902719	45 mm	Standard	Stainless steel	M30	176.5	Heavy Split	96.5 mm	141.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902720	65 mm	Standard	Stainless steel	M30	226.5	Heavy Split	126.5 mm	191.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902721	65 mm	Standard	Stainless steel	M30	286.5	Heavy Split	186.5 mm	251.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902722	45 mm	Standard	Stainless steel	M36	176.5	Heavy Split	96.5 mm	141.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
P902723	65 mm	Standard	Stainless steel	M36	226.5	Heavy Split	126.5 mm	191.5 mm	30 mm	42 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P902724	65 mm	Standard	Stainless steel	M36	286.5	Heavy Split	186.5 mm	251.5 mm	30 mm	42 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
