S400B Ø105 Heavy Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	105 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

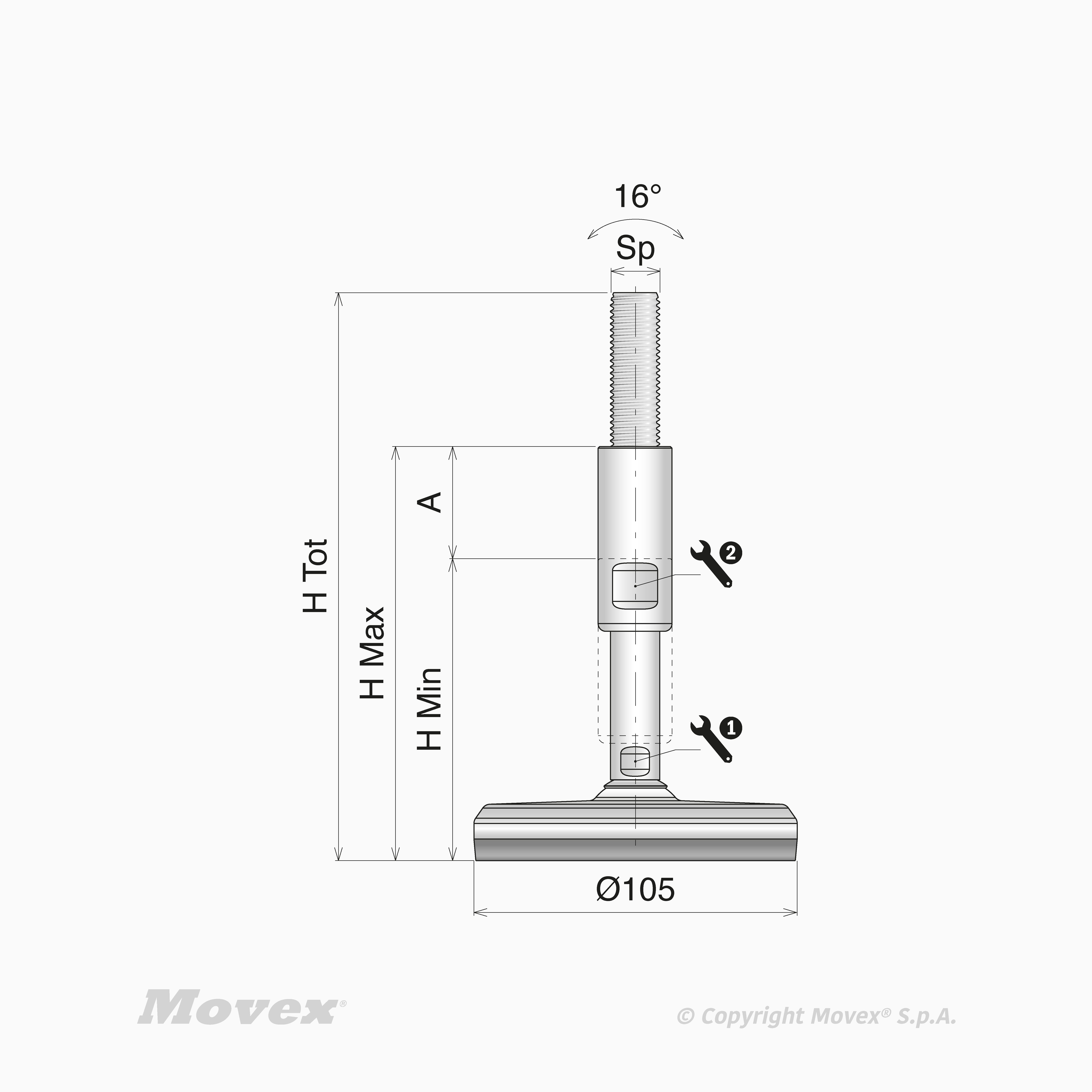

S400B Ø105 Heavy Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902501	45 mm	Standard	Stainless steel	M12	184.5	Heavy	104.5 mm	149.5 mm	10 mm	17 mm	-25÷100 °C
P902502	65 mm	Standard	Stainless steel	M12	234.5	Heavy	134.5 mm	199.5 mm	10 mm	17 mm	-25÷100 °C
P902503	45 mm	Standard	Stainless steel	M16	184.5	Heavy	104.5 mm	149.5 mm	13 mm	19 mm	-25÷100 °C
P902504	65 mm	Standard	Stainless steel	M16	234.5	Heavy	134.5 mm	199.5 mm	13 mm	19 mm	-25÷100 °C
P902505	45 mm	Standard	Stainless steel	M20	184.5	Heavy	104.5 mm	149.5 mm	17 mm	24 mm	-25÷100 °C
P902506	65 mm	Standard	Stainless steel	M20	234.5	Heavy	134.5 mm	199.5 mm	17 mm	24 mm	-25÷100 °C
P902507	45 mm	Standard	Stainless steel	M24	184.5	Heavy	104.5 mm	149.5 mm	19 mm	30 mm	-25÷100 °C
P902508	65 mm	Standard	Stainless steel	M24	234.5	Heavy	134.5 mm	199.5 mm	19 mm	30 mm	-25÷100 °C
P902509	45 mm	Standard	Stainless steel	M30	184.5	Heavy	104.5 mm	149.5 mm	24 mm	36 mm	-25÷100 °C
P902510	65 mm	Standard	Stainless steel	M30	234.5	Heavy	134.5 mm	199.5 mm	24 mm	36 mm	-25÷100 °C
P902511	65 mm	Standard	Stainless steel	M30	294.5	Heavy	194.5 mm	259.5 mm	24 mm	36 mm	-25÷100 °C
P902512	45 mm	Standard	Stainless steel	M36	184.5	Heavy	104.5 mm	149.5 mm	30 mm	42 mm	-25÷100 °C
P902513	65 mm	Standard	Stainless steel	M36	234.5	Heavy	134.5 mm	199.5 mm	30 mm	42 mm	-25÷100 °C
P902514	65 mm	Standard	Stainless steel	M36	294.5	Heavy	194.5 mm	259.5 mm	30 mm	42 mm	-25÷100 °C
