Home Leveling feet S400B S400B Ø105 Heavy

S400B Ø105 Heavy

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	105 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

S400B Ø105 Heavy

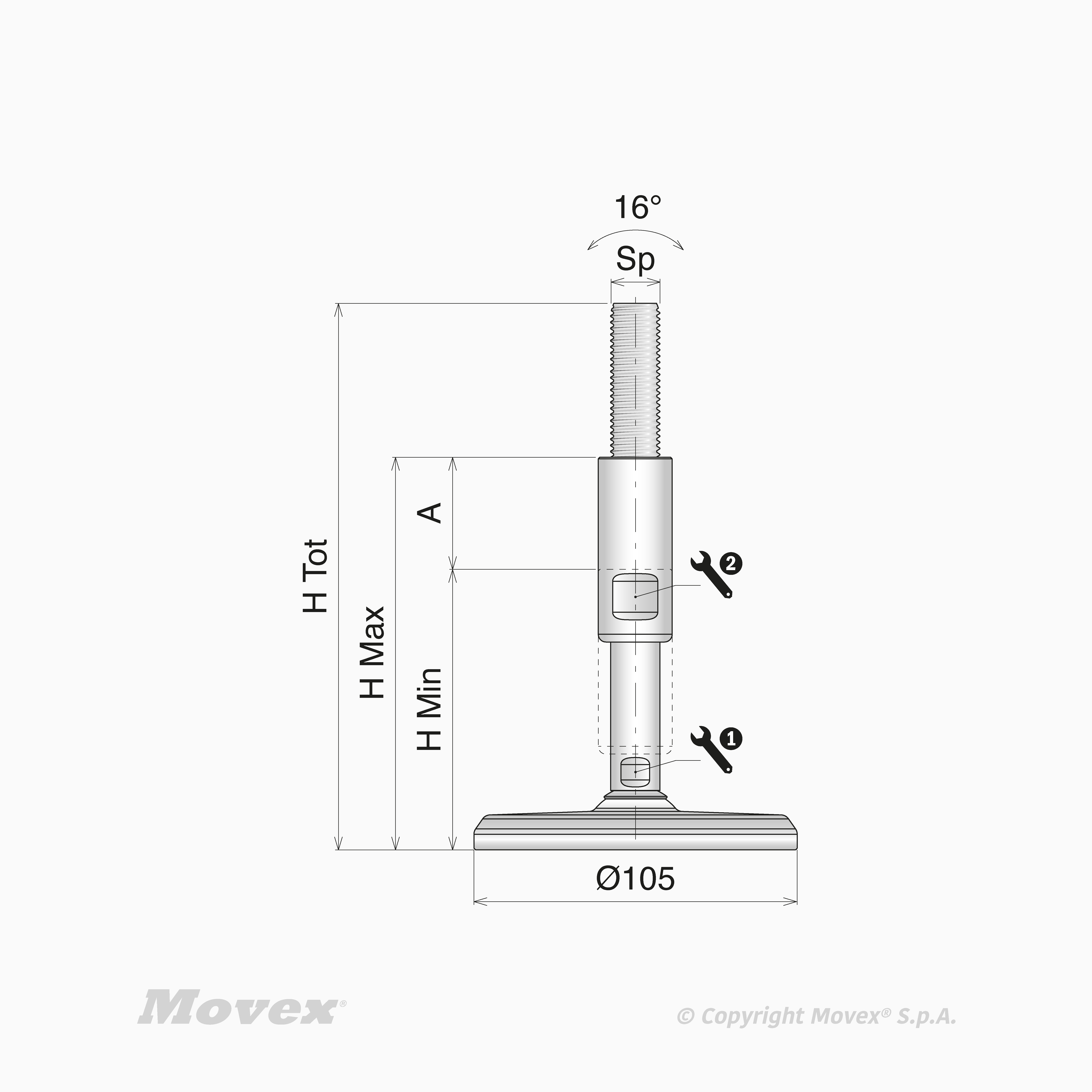

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry	Temperature range wet
Code													Actions
P902431	45 mm	Standard	Stainless steel	M12	177.5	Heavy	97.5 mm	142.5 mm	10 mm	17 mm	-30÷400 °C	-30÷130 °C
P902432	65 mm	Standard	Stainless steel	M12	227.5	Heavy	127.5 mm	192.5 mm	10 mm	17 mm	-30÷400 °C	-30÷130 °C
P902433	45 mm	Standard	Stainless steel	M16	177.5	Heavy	97.5 mm	142.5 mm	13 mm	19 mm	-30÷400 °C	-30÷130 °C
P902434	65 mm	Standard	Stainless steel	M16	227.5	Heavy	127.5 mm	192.5 mm	13 mm	19 mm	-30÷400 °C	-30÷130 °C
P902435	45 mm	Standard	Stainless steel	M20	177.5	Heavy	97.5 mm	142.5 mm	17 mm	24 mm	-30÷400 °C	-30÷130 °C
P902436	65 mm	Standard	Stainless steel	M20	227.5	Heavy	127.5 mm	192.5 mm	17 mm	24 mm	-30÷400 °C	-30÷130 °C
P902437	45 mm	Standard	Stainless steel	M24	177.5	Heavy	97.5 mm	142.5 mm	19 mm	30 mm	-30÷400 °C	-30÷130 °C
P902438	65 mm	Standard	Stainless steel	M24	227.5	Heavy	127.5 mm	192.5 mm	19 mm	30 mm	-30÷400 °C	-30÷130 °C
P902439	45 mm	Standard	Stainless steel	M30	177.5	Heavy	97.5 mm	142.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902440	65 mm	Standard	Stainless steel	M30	227.5	Heavy	127.5 mm	192.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902441	65 mm	Standard	Stainless steel	M30	287.5	Heavy	187.5 mm	252.5 mm	24 mm	36 mm	-30÷400 °C	-30÷130 °C
P902442	45 mm	Standard	Stainless steel	M36	177.5	Heavy	97.5 mm	142.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
P902443	65 mm	Standard	Stainless steel	M36	227.5	Heavy	127.5 mm	192.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
P902444	65 mm	Standard	Stainless steel	M36	287.5	Heavy	187.5 mm	252.5 mm	30 mm	42 mm	-30÷400 °C	-30÷130 °C
