Home Leveling feet S400B S400B Ø105 1 Fixing point Anti-Slip

S400B Ø105 1 Fixing point Anti-Slip

S400B

Enquire Now

Description

The S400B series, with overmolded baseplate in AISI 304 stainless steel, threaded spindle with complete closure cover and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required, like food, chemical and pharmaceutical industries. The stainless steel baseplate and its particular shape guarantee an excellent cleanability, especially in critical conditions; the stainless steel cover avoids exposure of the thread part to external agents; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip proprieties and hermetic closure between the leveler and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SLIT and HEAVY-DUTY).

Basic features

Design:	Standard
Base material:	Metal
Diameter:	105 mm
Max Load:	19999÷49999 N
Fixing point:	1
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400B Ø105 1 Fixing point Anti-Slip

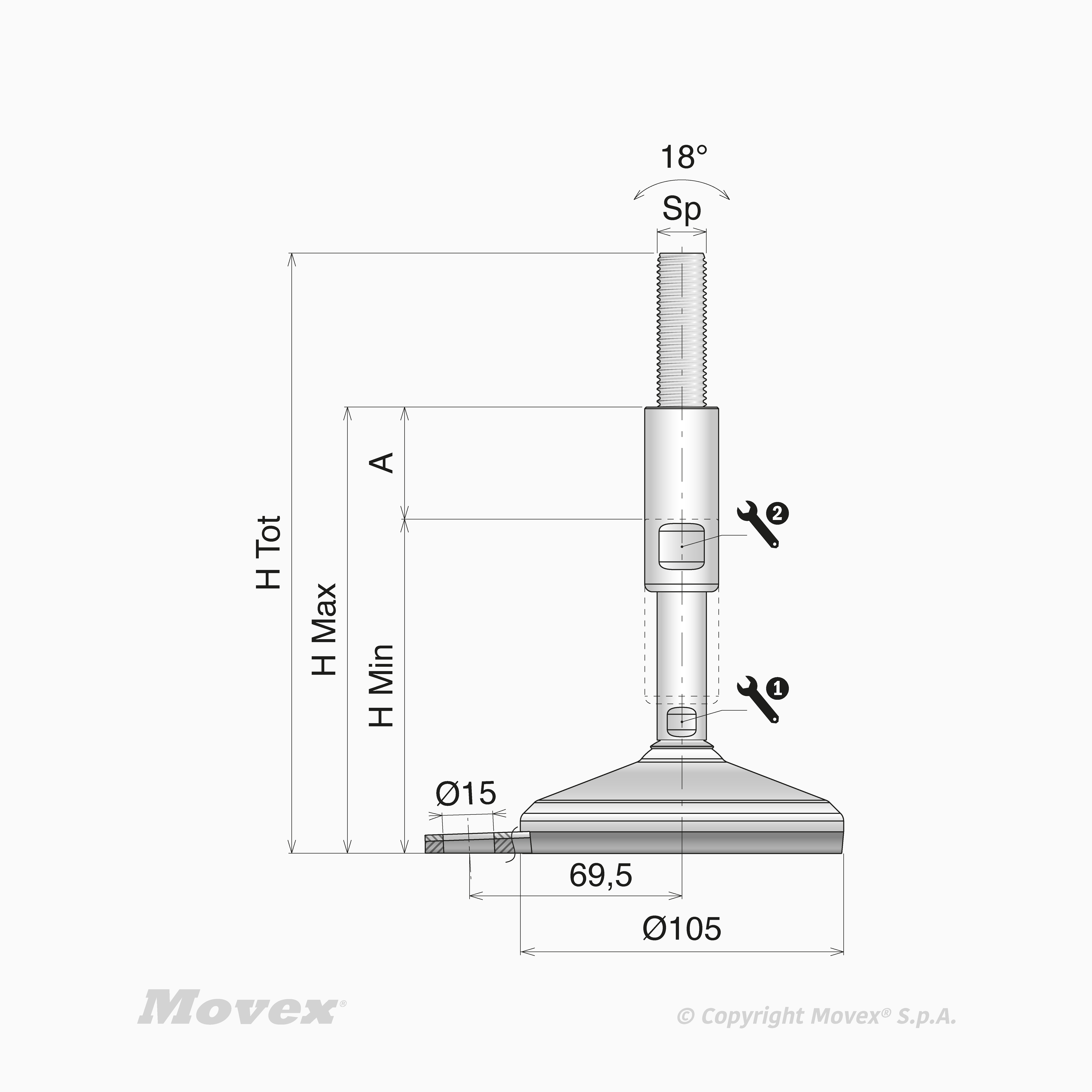

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902305	45 mm	Standard	Stainless steel	M12	195	Standard	115 mm	160 mm	10 mm	17 mm	-25÷100 °C
P902306	65 mm	Standard	Stainless steel	M12	245	Standard	145 mm	210 mm	10 mm	17 mm	-25÷100 °C
P902307	45 mm	Standard	Stainless steel	M16	195	Standard	115 mm	160 mm	13 mm	19 mm	-25÷100 °C
P902308	65 mm	Standard	Stainless steel	M16	245	Standard	145 mm	210 mm	13 mm	19 mm	-25÷100 °C
P902309	45 mm	Standard	Stainless steel	M20	195	Standard	115 mm	160 mm	17 mm	24 mm	-25÷100 °C
P902310	65 mm	Standard	Stainless steel	M20	245	Standard	145 mm	210 mm	17 mm	24 mm	-25÷100 °C
P902311	45 mm	Standard	Stainless steel	M24	195	Standard	115 mm	160 mm	19 mm	30 mm	-25÷100 °C
P902312	65 mm	Standard	Stainless steel	M24	245	Standard	145 mm	210 mm	19 mm	30 mm	-25÷100 °C
P902313	45 mm	Standard	Stainless steel	M30	195	Standard	115 mm	160 mm	24 mm	36 mm	-25÷100 °C
P902314	65 mm	Standard	Stainless steel	M30	245	Standard	145 mm	210 mm	24 mm	36 mm	-25÷100 °C
P902315	65 mm	Standard	Stainless steel	M30	305	Standard	205 mm	270 mm	24 mm	36 mm	-25÷100 °C
P902316	45 mm	Standard	Stainless steel	M36	195	Standard	115 mm	160 mm	30 mm	42 mm	-25÷100 °C
P902317	65 mm	Standard	Stainless steel	M36	245	Standard	145 mm	210 mm	30 mm	42 mm	-25÷100 °C
P902318	65 mm	Standard	Stainless steel	M36	305	Standard	205 mm	270 mm	30 mm	42 mm	-25÷100 °C
