Home Leveling feet S400 S400 Ø80 Heavy Split Anti-Slip

S400 Ø80 Heavy Split Anti-Slip

S400

Enquire Now

Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	80 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400 Ø80 Heavy Split Anti-Slip

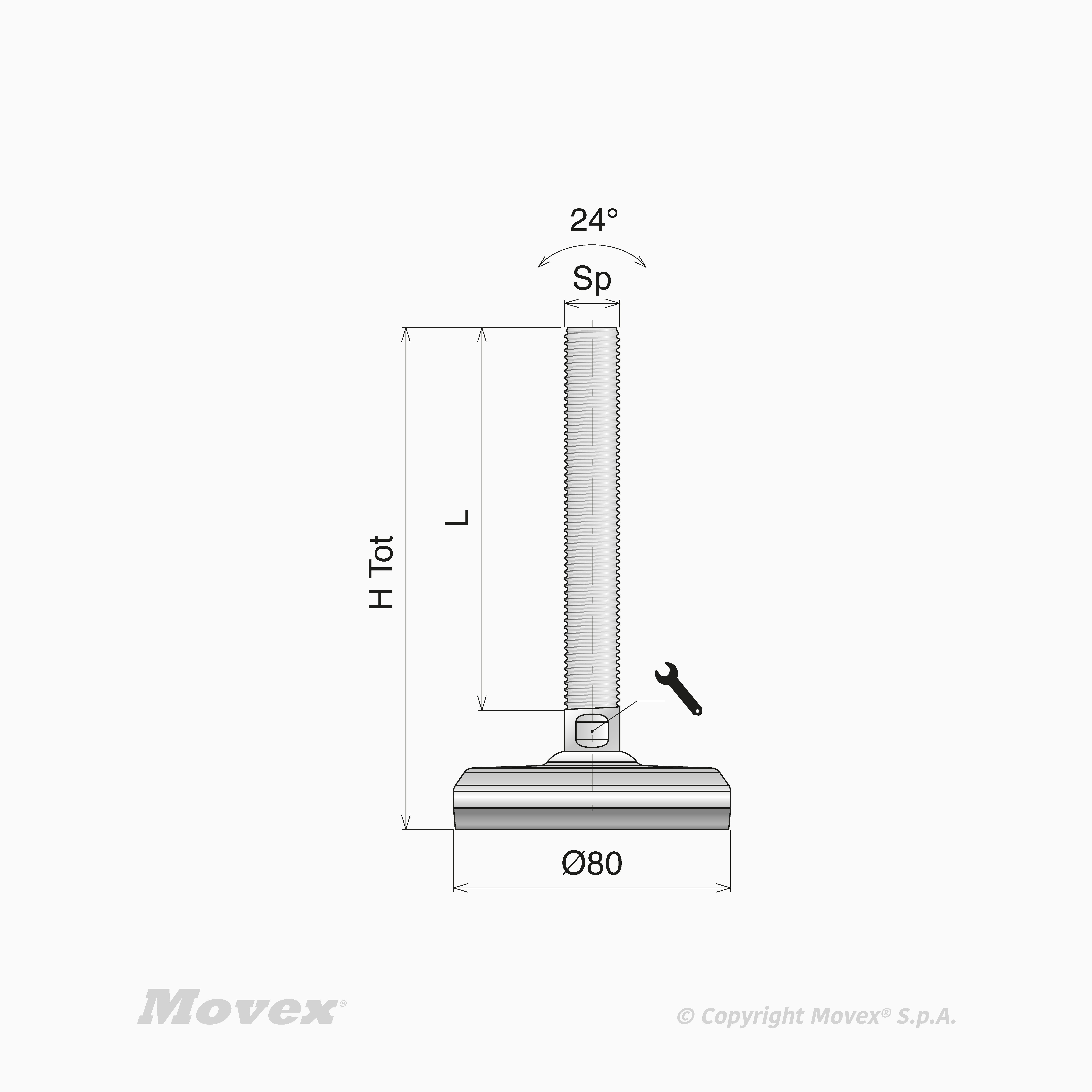

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry
Code									Actions
P902019	50.8 mm	Standard	Stainless steel	M12	87.5	Heavy Split	10 mm Max Load 30000 N	-25÷100 °C
P902020	80.8 mm	Standard	Stainless steel	M12	117.5	Heavy Split	10 mm	-25÷100 °C
P902021	110.8 mm	Standard	Stainless steel	M12	147.5	Heavy Split	10 mm	-25÷100 °C
P902022	140.8 mm	Standard	Stainless steel	M12	177.5	Heavy Split	10 mm	-25÷100 °C
P902023	51.3 mm	Standard	Stainless steel	M16	87.5	Heavy Split	13 mm	-25÷100 °C
P902024	81.3 mm	Standard	Stainless steel	M16	117.5	Heavy Split	13 mm	-25÷100 °C
P902025	111.3 mm	Standard	Stainless steel	M16	147.5	Heavy Split	13 mm	-25÷100 °C
P902026	141.3 mm	Standard	Stainless steel	M16	177.5	Heavy Split	13 mm	-25÷100 °C
P902027	191.3 mm	Standard	Stainless steel	M16	227.5	Heavy Split	13 mm	-25÷100 °C
P902028	52.3 mm	Standard	Stainless steel	M20	287.5	Heavy Split	17 mm	-25÷100 °C
P902029	82.3 mm	Standard	Stainless steel	M20	117.5	Heavy Split	17 mm	-25÷100 °C
P902030	112.3 mm	Standard	Stainless steel	M20	147.5	Heavy Split	17 mm	-25÷100 °C
P902031	142.3 mm	Standard	Stainless steel	M20	177.5	Heavy Split	17 mm	-25÷100 °C
P902032	192.3 mm	Standard	Stainless steel	M20	227.5	Heavy Split	17 mm	-25÷100 °C
P902033	252.3 mm	Standard	Stainless steel	M20	287.5	Heavy Split	17 mm	-25÷100 °C
P902034	76 mm	Standard	Stainless steel	M24	117.5	Heavy Split	19 mm Max Load 12000 N	-25÷100 °C
P902035	106 mm	Standard	Stainless steel	M24	147.5	Heavy Split	19 mm Max Load 12000 N	-25÷100 °C
P902036	136 mm	Standard	Stainless steel	M24	177.5	Heavy Split	19 mm Max Load 12000 N	-25÷100 °C
P902037	186 mm	Standard	Stainless steel	M24	227.5	Heavy Split	19 mm Max Load 12000 N	-25÷100 °C
P902038	246 mm	Standard	Stainless steel	M24	287.5	Heavy Split	19 mm Max Load 12000 N	-25÷100 °C
P902039	106 mm	Standard	Stainless steel	M30	147.5	Heavy Split	24 mm Max Load 12000 N	-25÷100 °C
P902040	136 mm	Standard	Stainless steel	M30	177.5	Heavy Split	24 mm Max Load 30000 N	-25÷100 °C
P902041	186 mm	Standard	Stainless steel	M30	227.5	Heavy Split	24 mm Max Load 30000 N	-25÷100 °C
P902042	246 mm	Standard	Stainless steel	M30	287.5	Heavy Split	24 mm Max Load 30000 N	-25÷100 °C
P902043	296 mm	Standard	Stainless steel	M30	337.5	Heavy Split	24 mm Max Load 30000 N	-25÷100 °C
