S400 Ø80 Heavy Split

S400

Enquire Now

Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	80 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

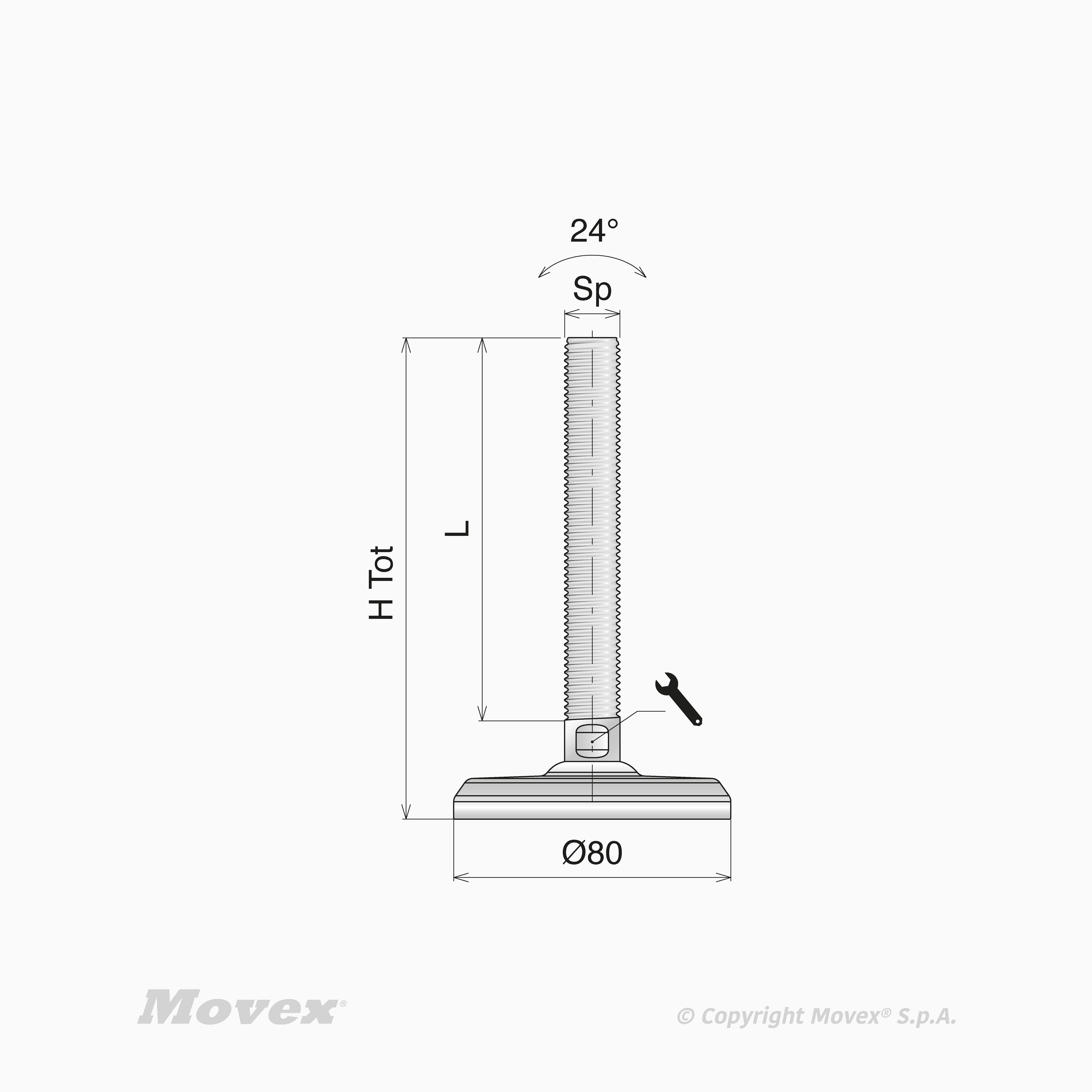

S400 Ø80 Heavy Split

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P901911	50.8 mm	Standard	Stainless steel	M12	81.5	Heavy Split	10 mm Max Load 80000 N	-30÷400 °C	-30÷130 °C
P901912	80.8 mm	Standard	Stainless steel	M12	111.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901913	110.8 mm	Standard	Stainless steel	M12	141.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901914	140.8 mm	Standard	Stainless steel	M12	171.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901915	51.3 mm	Standard	Stainless steel	M16	81.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901916	81.3 mm	Standard	Stainless steel	M16	111.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901917	111.3 mm	Standard	Stainless steel	M16	141.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901918	141.3 mm	Standard	Stainless steel	M16	171.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901919	191.3 mm	Standard	Stainless steel	M16	221.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901920	52.3 mm	Standard	Stainless steel	M20	81.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901921	82.3 mm	Standard	Stainless steel	M20	111.5	Heavy Split	17 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P901922	112.3 mm	Standard	Stainless steel	M20	141.5	Heavy Split	17 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P901923	142.3 mm	Standard	Stainless steel	M20	171.5	Heavy Split	17 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P901924	192.3 mm	Standard	Stainless steel	M20	221.5	Heavy Split	17 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P901925	252.3 mm	Standard	Stainless steel	M20	281.5	Heavy Split	17 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P901926	76 mm	Standard	Stainless steel	M24	111.5	Heavy Split	19 mm Max Load 12000 N	-30÷400 °C	-30÷130 °C
P901927	106 mm	Standard	Stainless steel	M24	141.5	Heavy Split	19 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901928	136 mm	Standard	Stainless steel	M24	171.5	Heavy Split	19 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901929	186 mm	Standard	Stainless steel	M24	221.5	Heavy Split	19 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901930	246 mm	Standard	Stainless steel	M24	281.5	Heavy Split	19 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901931	106 mm	Standard	Stainless steel	M30	141.5	Heavy Split	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901932	136 mm	Standard	Stainless steel	M30	171.5	Heavy Split	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901933	186 mm	Standard	Stainless steel	M30	221.5	Heavy Split	24 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901934	246 mm	Standard	Stainless steel	M30	281.5	Heavy Split	24 mm Max Load 70000 N	-30÷400 °C	-30÷130 °C
P901935	296 mm	Standard	Stainless steel	M30	331.5	Heavy Split	24 mm Max Load 70000 N	-30÷400 °C	-30÷130 °C
