Home Leveling feet S400 S400 Ø60 Split Anti-Slip

S400 Ø60 Split Anti-Slip

S400

Enquire Now

Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Split
Base material:	Metal
Diameter:	60 mm
Max Load:	0÷9999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

S400 Ø60 Split Anti-Slip

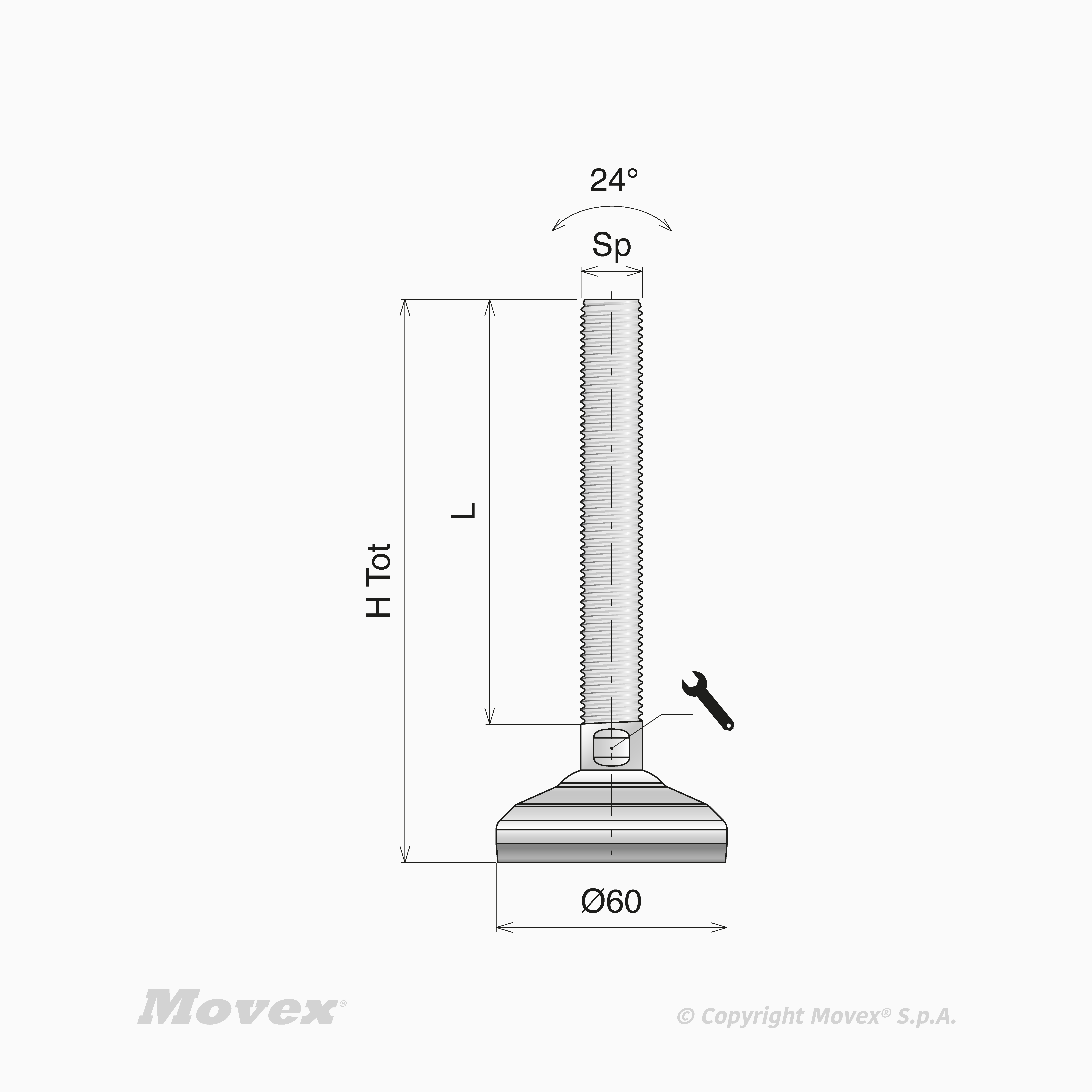

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry
Code									Actions
P901353	50.5 mm	Standard	Stainless steel	M10	89	Split	7 mm	-25÷100 °C
P901354	80.5 mm	Standard	Stainless steel	M10	119	Split	7 mm	-25÷100 °C
P901355	110.5 mm	Standard	Stainless steel	M10	149	Split	7 mm	-25÷100 °C
P901356	50.8 mm	Standard	Stainless steel	M12	89	Split	10 mm	-25÷100 °C
P901357	80.8 mm	Standard	Stainless steel	M12	119	Split	10 mm	-25÷100 °C
P901358	110.8 mm	Standard	Stainless steel	M12	149	Split	10 mm	-25÷100 °C
P901359	140.8 mm	Standard	Stainless steel	M12	179	Split	10 mm	-25÷100 °C
P901360	51.3 mm	Standard	Stainless steel	M16	89	Split	13 mm	-25÷100 °C
P901361	81.3 mm	Standard	Stainless steel	M16	119	Split	13 mm	-25÷100 °C
P901362	111.3 mm	Standard	Stainless steel	M16	149	Split	13 mm	-25÷100 °C
P901363	141.3 mm	Standard	Stainless steel	M16	179	Split	13 mm	-25÷100 °C
P901364	191.3 mm	Standard	Stainless steel	M16	229	Split	13 mm	-25÷100 °C
P901365	52.3 mm	Standard	Stainless steel	M20	89	Split	17 mm	-25÷100 °C
P901366	82.3 mm	Standard	Stainless steel	M20	119	Split	17 mm	-25÷100 °C
P901367	112.3 mm	Standard	Stainless steel	M20	149	Split	17 mm	-25÷100 °C
P901368	142.3 mm	Standard	Stainless steel	M20	179	Split	17 mm	-25÷100 °C
P901369	192.3 mm	Standard	Stainless steel	M20	229	Split	17 mm	-25÷100 °C
P901370	252.3 mm	Standard	Stainless steel	M20	289	Split	17 mm	-25÷100 °C
