Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	60 mm
Max Load:	0÷9999 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

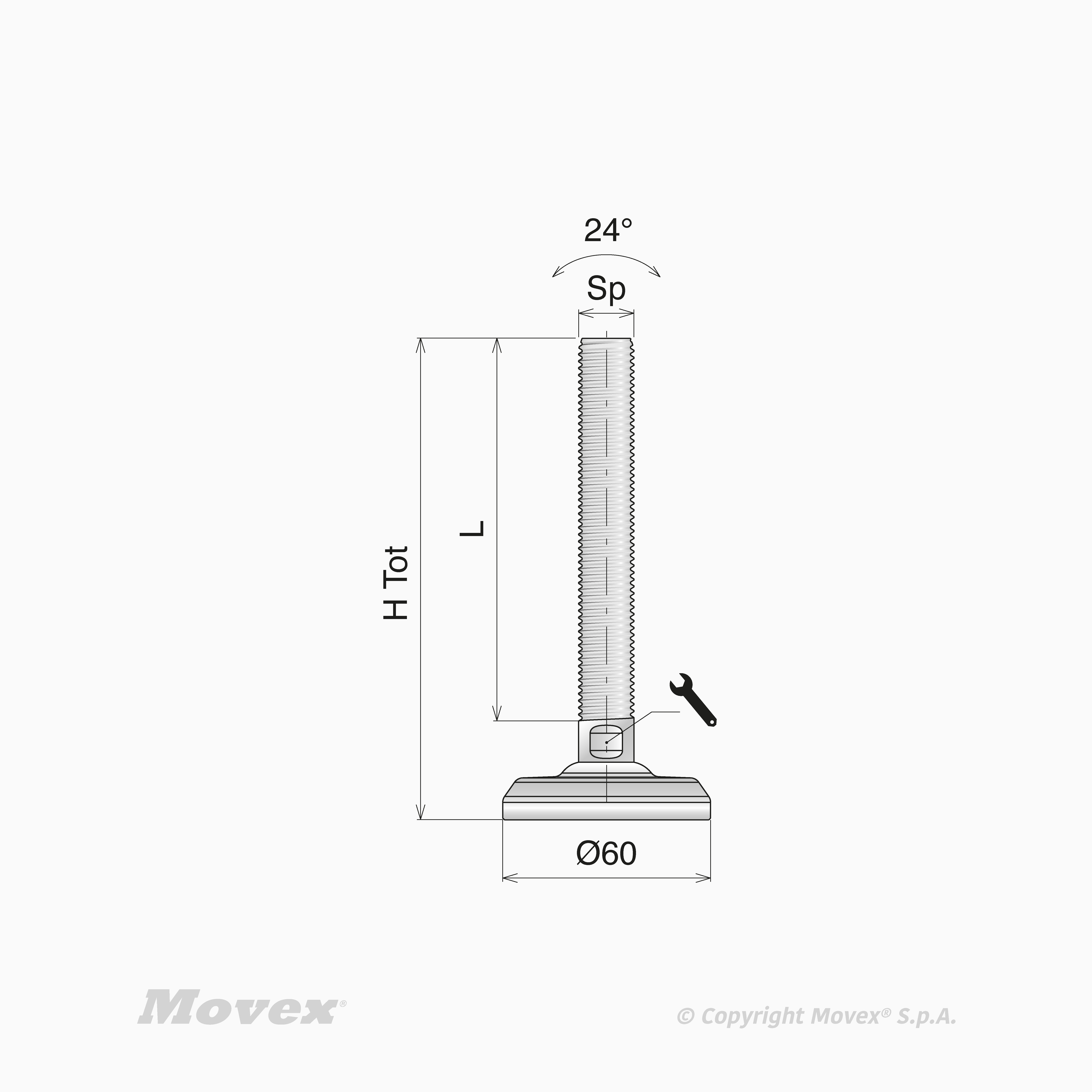

S400 Ø60 Heavy Split

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P901893	50.5 mm	Standard	Stainless steel	M10	81.5	Heavy Split	7 mm Max Load 3000 N	-30÷400 °C	-30÷130 °C
P901894	80.5 mm	Standard	Stainless steel	M10	111.5	Heavy Split	7 mm	-30÷400 °C	-30÷130 °C
P901895	110.5 mm	Standard	Stainless steel	M10	141.5	Heavy Split	7 mm	-30÷400 °C	-30÷130 °C
P901896	50.8 mm	Standard	Stainless steel	M12	81.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901897	80.8 mm	Standard	Stainless steel	M12	111.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901898	110.8 mm	Standard	Stainless steel	M12	141.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901899	140.8 mm	Standard	Stainless steel	M12	171.5	Heavy Split	10 mm	-30÷400 °C	-30÷130 °C
P901900	51.3 mm	Standard	Stainless steel	M16	81.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901901	81.3 mm	Standard	Stainless steel	M16	111.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901902	111.3 mm	Standard	Stainless steel	M16	141.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901903	141.3 mm	Standard	Stainless steel	M16	171.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901904	191.3 mm	Standard	Stainless steel	M16	221.5	Heavy Split	13 mm	-30÷400 °C	-30÷130 °C
P901905	52.3 mm	Standard	Stainless steel	M20	81.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901906	82.3 mm	Standard	Stainless steel	M20	111.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901907	112.3 mm	Standard	Stainless steel	M20	141.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901908	142.3 mm	Standard	Stainless steel	M20	171.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901909	192.3 mm	Standard	Stainless steel	M20	221.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901910	252.3 mm	Standard	Stainless steel	M20	281.5	Heavy Split	17 mm Max Load 3000 N	-30÷400 °C	-30÷130 °C
