S400 Ø150 Split Anti-Slip
S400
Description
Description
The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required.
The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).
Basic features
| Design: | Split |
|---|---|
| Base material: | Metal |
| Diameter: | 150 mm |
| Max Load: | 19999÷49999 N |
| Fixing point: | 0 |
| Anti-slip: | Yes |
| Unit of measure: | Ea |
| Box: | - |
S400 Ø150 Split Anti-Slip

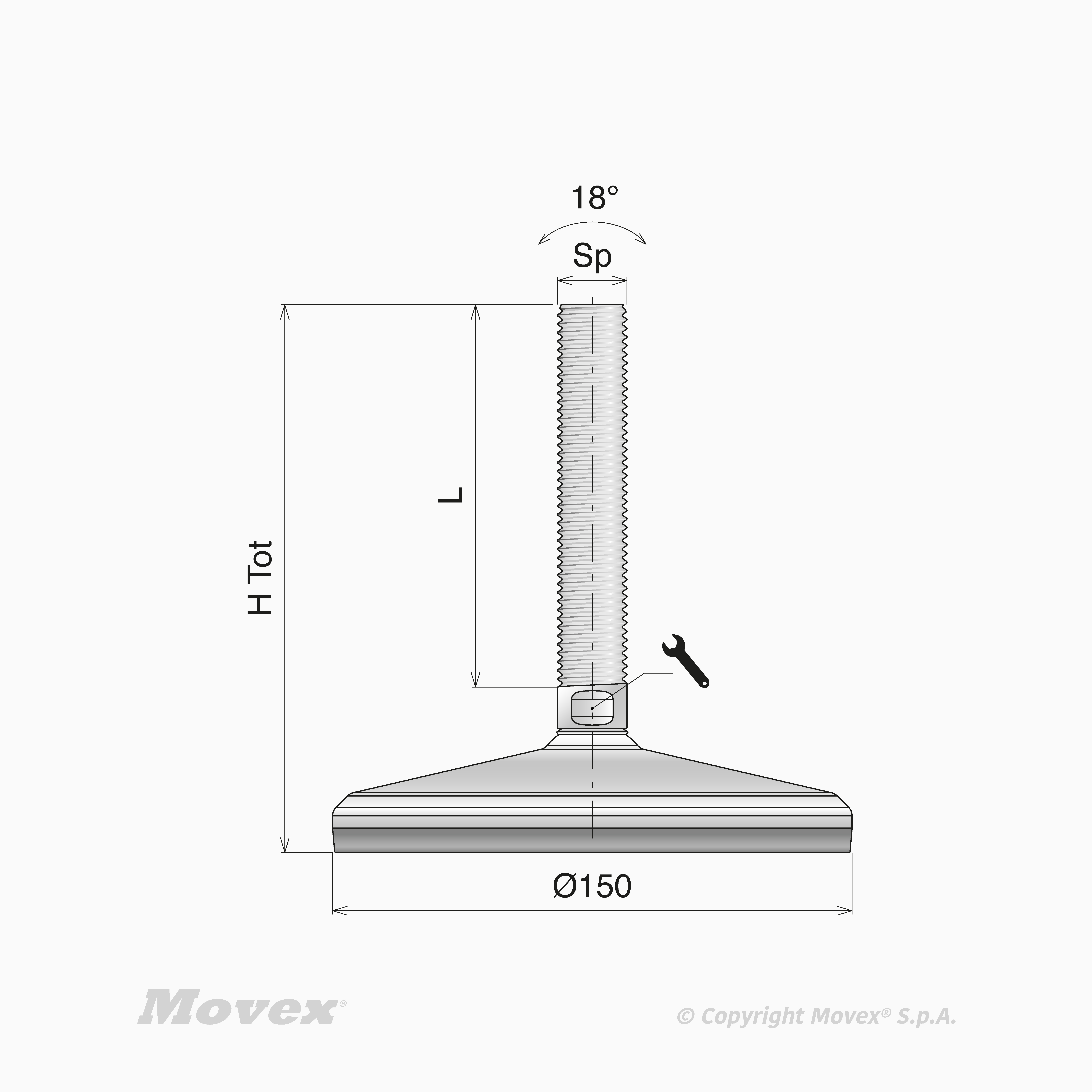

| L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 | Temperature range dry | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P901441 | 52.3 mm | Standard | Stainless steel | M20 | 99 | Split | 17 mm Max Load 45000 N | -25÷100 °C |
|
| P901442 | 82.3 mm | Standard | Stainless steel | M20 | 129 | Split | 17 mm | -25÷100 °C |
|
| P901443 | 112.3 mm | Standard | Stainless steel | M20 | 159 | Split | 17 mm | -25÷100 °C |
|
| P901444 | 142.3 mm | Standard | Stainless steel | M20 | 189 | Split | 17 mm | -25÷100 °C |
|
| P901445 | 192.3 mm | Standard | Stainless steel | M20 | 239 | Split | 17 mm | -25÷100 °C |
|
| P901446 | 252.3 mm | Standard | Stainless steel | M20 | 299 | Split | 17 mm | -25÷100 °C |
|
| P901447 | 76 mm | Standard | Stainless steel | M24 | 130 | Split | 19 mm | -25÷100 °C |
|
| P901448 | 106 mm | Standard | Stainless steel | M24 | 160 | Split | 19 mm | -25÷100 °C |
|
| P901449 | 136 mm | Standard | Stainless steel | M24 | 190 | Split | 19 mm | -25÷100 °C |
|
| P901450 | 186 mm | Standard | Stainless steel | M24 | 240 | Split | 19 mm | -25÷100 °C |
|
| P901451 | 246 mm | Standard | Stainless steel | M24 | 300 | Split | 19 mm | -25÷100 °C |
|
| P901452 | 106 mm | Standard | Stainless steel | M30 | 160 | Split | 24 mm | -25÷100 °C |
|
| P901453 | 136 mm | Standard | Stainless steel | M30 | 190 | Split | 24 mm | -25÷100 °C |
|
| P901454 | 186 mm | Standard | Stainless steel | M30 | 240 | Split | 24 mm | -25÷100 °C |
|
| P901455 | 246 mm | Standard | Stainless steel | M30 | 300 | Split | 24 mm | -25÷100 °C |
|
| P901456 | 296 mm | Standard | Stainless steel | M30 | 350 | Split | 24 mm | -25÷100 °C |
|
| P901457 | 136 mm | Standard | Stainless steel | M36 | 190 | Split | 30 mm | -25÷100 °C |
|
| P901458 | 186 mm | Standard | Stainless steel | M36 | 240 | Split | 30 mm | -25÷100 °C |
|
| P901459 | 246 mm | Standard | Stainless steel | M36 | 300 | Split | 30 mm | -25÷100 °C |
|
| P901460 | 296 mm | Standard | Stainless steel | M36 | 350 | Split | 30 mm Max Load 45000 N | -25÷100 °C |
|
