S400 Ø150 Heavy Split Anti-Slip
S400
Description
Description
The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required.
The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).
Basic features
| Design: | Heavy Split |
|---|---|
| Base material: | Metal |
| Diameter: | 150 mm |
| Max Load: | 100000÷200000 N |
| Fixing point: | 0 |
| Anti-slip: | Yes |
| Unit of measure: | Ea |
| Box: | - |

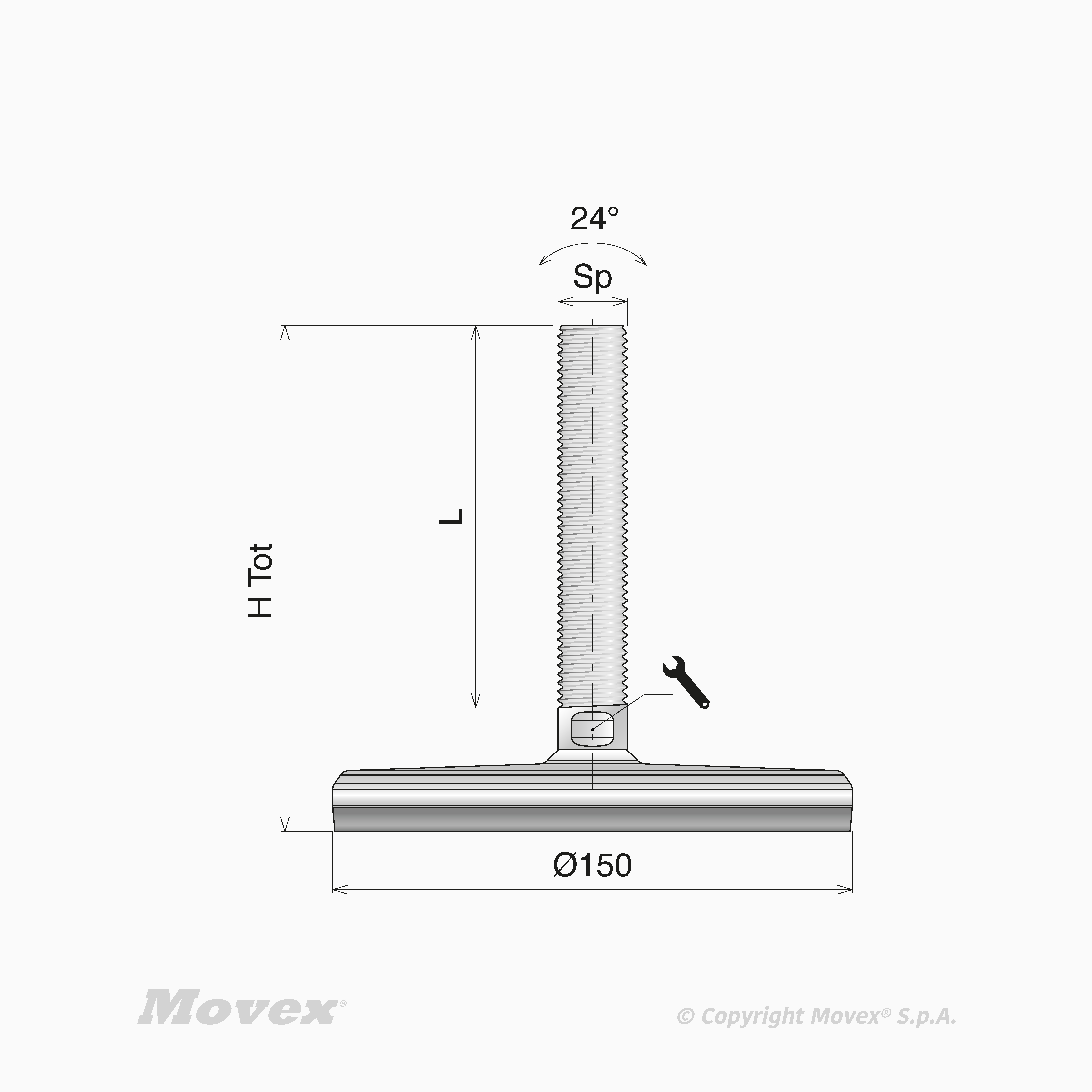

S400 Ø150 Heavy Split Anti-Slip
| L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 | Temperature range dry | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P902089 | 52.3 mm | Standard | Stainless steel | M20 | 87.5 | Heavy Split | 17 mm Max Load 45000 N | -25÷100 °C |
|
| P902090 | 82.3 mm | Standard | Stainless steel | M20 | 117.5 | Heavy Split | 17 mm | -25÷100 °C |
|
| P902091 | 112.3 mm | Standard | Stainless steel | M20 | 147.5 | Heavy Split | 17 mm | -25÷100 °C |
|
| P902092 | 142.3 mm | Standard | Stainless steel | M20 | 177.5 | Heavy Split | 17 mm | -25÷100 °C |
|
| P902093 | 192.3 mm | Standard | Stainless steel | M20 | 227.5 | Heavy Split | 17 mm | -25÷100 °C |
|
| P902094 | 252.3 mm | Standard | Stainless steel | M20 | 287.5 | Heavy Split | 17 mm | -25÷100 °C |
|
| P902095 | 76 mm | Standard | Stainless steel | M24 | 117.5 | Heavy Split | 19 mm | -25÷100 °C |
|
| P902096 | 106 mm | Standard | Stainless steel | M24 | 147.5 | Heavy Split | 19 mm | -25÷100 °C |
|
| P902097 | 136 mm | Standard | Stainless steel | M24 | 177.5 | Heavy Split | 19 mm | -25÷100 °C |
|
| P902098 | 186 mm | Standard | Stainless steel | M24 | 227.5 | Heavy Split | 19 mm | -25÷100 °C |
|
| P902099 | 246 mm | Standard | Stainless steel | M24 | 287.5 | Heavy Split | 19 mm | -25÷100 °C |
|
| P902100 | 106 mm | Standard | Stainless steel | M30 | 147.5 | Heavy Split | 24 mm | -25÷100 °C |
|
| P902101 | 136 mm | Standard | Stainless steel | M30 | 177.5 | Heavy Split | 24 mm | -25÷100 °C |
|
| P902102 | 186 mm | Standard | Stainless steel | M30 | 227.5 | Heavy Split | 24 mm | -25÷100 °C |
|
| P902103 | 246 mm | Standard | Stainless steel | M30 | 287.5 | Heavy Split | 24 mm | -25÷100 °C |
|
| P902104 | 296 mm | Standard | Stainless steel | M30 | 337.5 | Heavy Split | 24 mm | -25÷100 °C |
|
| P902105 | 136 mm | Standard | Stainless steel | M36 | 177.5 | Heavy Split | 30 mm | -25÷100 °C |
|
| P902106 | 186 mm | Standard | Stainless steel | M36 | 221.5 | Heavy Split | 30 mm | -25÷100 °C |
|
| P902107 | 246 mm | Standard | Stainless steel | M36 | 281.5 | Heavy Split | 30 mm | -25÷100 °C |
|
| P902108 | 296 mm | Standard | Stainless steel | M36 | 337.5 | Heavy Split | 30 mm Max Load 45000 N | -25÷100 °C |
|
