S400 Ø150 Heavy
S400
Description
Description
The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required.
The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).
Basic features
| Design: | Heavy |
|---|---|
| Base material: | Metal |
| Diameter: | 150 mm |
| Max Load: | 100000÷200000 N |
| Fixing point: | 0 |
| Anti-slip: | No |
| Unit of measure: | Ea |
| Box: | - |
S400 Ø150 Heavy

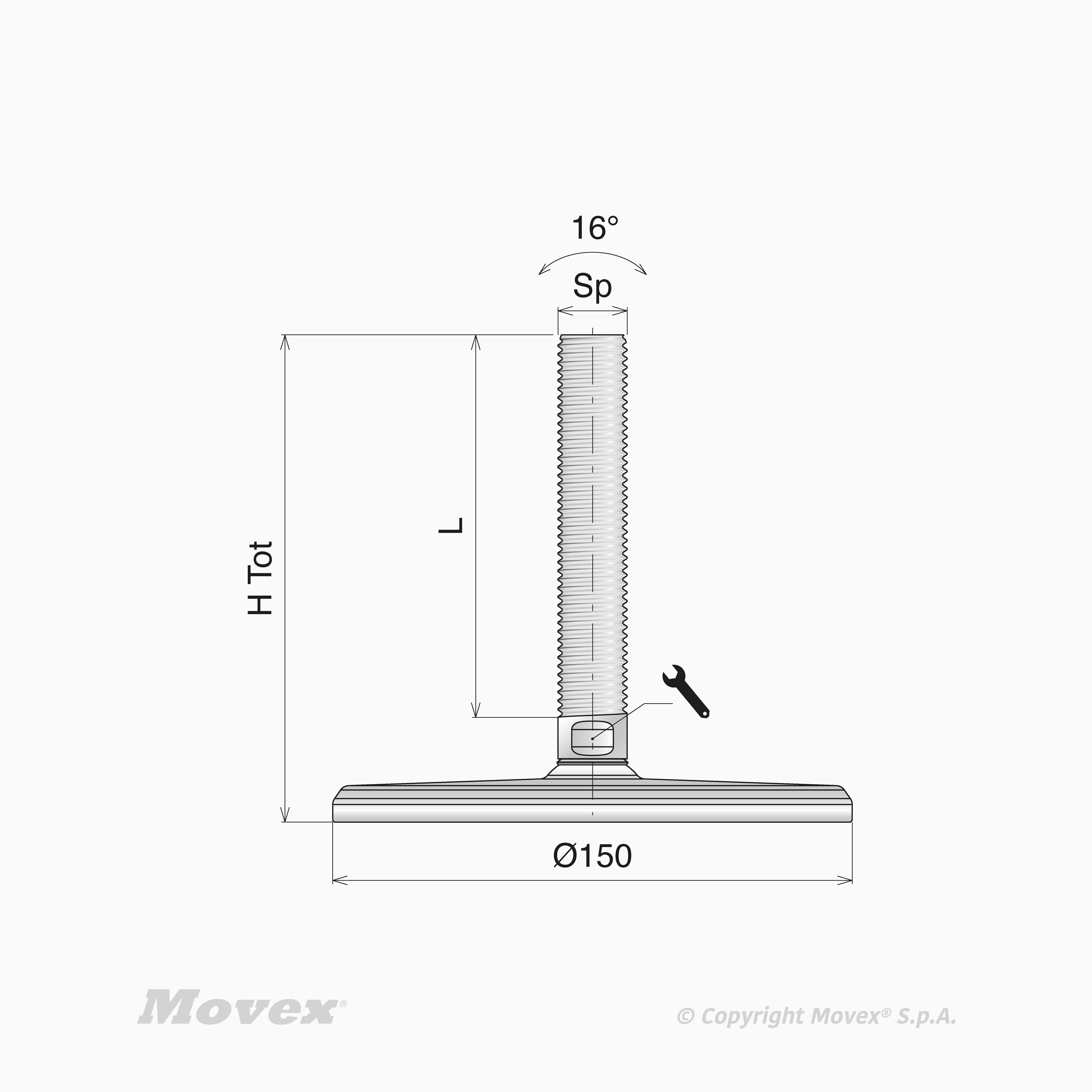

| L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P901549 | 52.3 mm | Standard | Stainless steel | M20 | 82.5 | Heavy | 17 mm Max Load 70000 N | -30÷400 °C | -30÷130 °C |
|
| P901550 | 82.3 mm | Standard | Stainless steel | M20 | 112.5 | Heavy | 17 mm | -30÷400 °C | -30÷130 °C |
|
| P901551 | 112.3 mm | Standard | Stainless steel | M20 | 142.5 | Heavy | 17 mm | -30÷400 °C | -30÷130 °C |
|
| P901552 | 142.3 mm | Standard | Stainless steel | M20 | 172.5 | Heavy | 17 mm | -30÷400 °C | -30÷130 °C |
|
| P901553 | 192.3 mm | Standard | Stainless steel | M20 | 222.5 | Heavy | 17 mm | -30÷400 °C | -30÷130 °C |
|
| P901554 | 252.3 mm | Standard | Stainless steel | M20 | 282.5 | Heavy | 17 mm | -30÷400 °C | -30÷130 °C |
|
| P901555 | 76 mm | Standard | Stainless steel | M24 | 112.5 | Heavy | 19 mm | -30÷400 °C | -30÷130 °C |
|
| P901556 | 106 mm | Standard | Stainless steel | M24 | 142.5 | Heavy | 19 mm | -30÷400 °C | -30÷130 °C |
|
| P901557 | 136 mm | Standard | Stainless steel | M24 | 172.5 | Heavy | 19 mm | -30÷400 °C | -30÷130 °C |
|
| P901558 | 186 mm | Standard | Stainless steel | M24 | 222.5 | Heavy | 19 mm | -30÷400 °C | -30÷130 °C |
|
| P901559 | 246 mm | Standard | Stainless steel | M24 | 282.5 | Heavy | 19 mm | -30÷400 °C | -30÷130 °C |
|
| P901560 | 106 mm | Standard | Stainless steel | M30 | 142.5 | Heavy | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P901561 | 136 mm | Standard | Stainless steel | M30 | 172.5 | Heavy | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P901562 | 186 mm | Standard | Stainless steel | M30 | 222.5 | Heavy | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P901563 | 246 mm | Standard | Stainless steel | M30 | 282.5 | Heavy | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P901564 | 296 mm | Standard | Stainless steel | M30 | 332.5 | Heavy | 24 mm | -30÷400 °C | -30÷130 °C |
|
| P901565 | 136 mm | Standard | Stainless steel | M36 | 172.5 | Heavy | 30 mm Max Load 45000 N | -30÷400 °C | -30÷130 °C |
|
| P901566 | 186 mm | Standard | Stainless steel | M36 | 222.5 | Heavy | 30 mm Max Load 45000 N | -30÷400 °C | -30÷130 °C |
|
| P901567 | 246 mm | Standard | Stainless steel | M36 | 282.5 | Heavy | 30 mm Max Load 45000 N | -30÷400 °C | -30÷130 °C |
|
| P901568 | 296 mm | Standard | Stainless steel | M36 | 332.5 | Heavy | 30 mm Max Load 45000 N | -30÷400 °C | -30÷130 °C |
|
