Home Leveling feet S400 S400 Ø125 Heavy Split

S400 Ø125 Heavy Split

S400

Enquire Now

Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	125 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

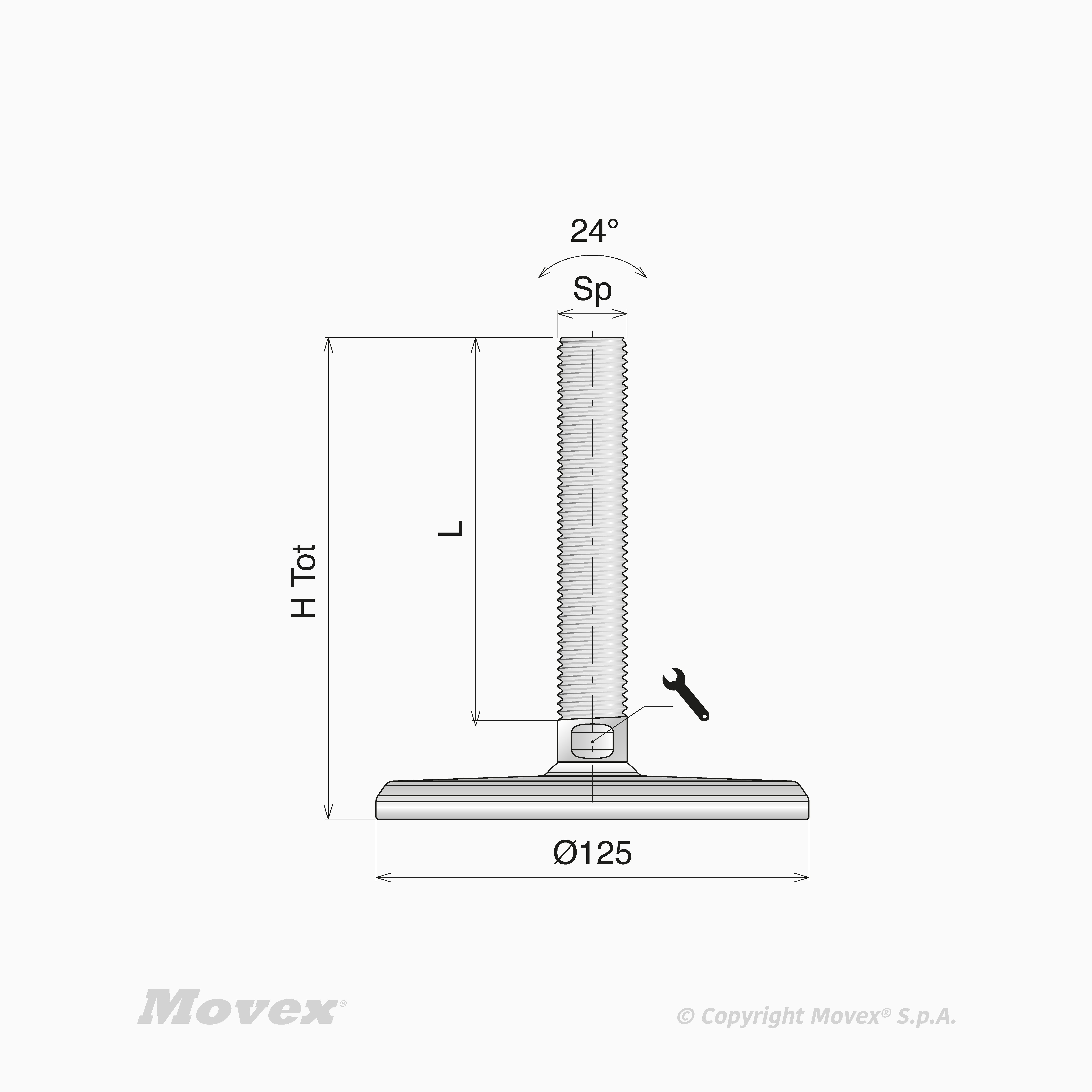

S400 Ø125 Heavy Split

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P901961	52.3 mm	Standard	Stainless steel	M20	81.5	Heavy Split	17 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901962	82.3 mm	Standard	Stainless steel	M20	111.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901963	112.3 mm	Standard	Stainless steel	M20	141.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901964	142.3 mm	Standard	Stainless steel	M20	171.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901965	192.3 mm	Standard	Stainless steel	M20	221.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901966	252.3 mm	Standard	Stainless steel	M20	281.5	Heavy Split	17 mm	-30÷400 °C	-30÷130 °C
P901967	76 mm	Standard	Stainless steel	M24	111.5	Heavy Split	19 mm	-30÷400 °C	-30÷130 °C
P901968	106 mm	Standard	Stainless steel	M24	141.5	Heavy Split	19 mm	-30÷400 °C	-30÷130 °C
P901969	136 mm	Standard	Stainless steel	M24	171.5	Heavy Split	19 mm	-30÷400 °C	-30÷130 °C
P901970	186 mm	Standard	Stainless steel	M24	221.5	Heavy Split	19 mm	-30÷400 °C	-30÷130 °C
P901971	246 mm	Standard	Stainless steel	M24	281.5	Heavy Split	19 mm	-30÷400 °C	-30÷130 °C
P901972	106 mm	Standard	Stainless steel	M30	141.5	Heavy Split	24 mm	-30÷400 °C	-30÷130 °C
P901973	136 mm	Standard	Stainless steel	M30	171.5	Heavy Split	24 mm	-30÷400 °C	-30÷130 °C
P901974	186 mm	Standard	Stainless steel	M30	221.5	Heavy Split	24 mm	-30÷400 °C	-30÷130 °C
P901975	246 mm	Standard	Stainless steel	M30	281.5	Heavy Split	24 mm	-30÷400 °C	-30÷130 °C
P901976	296 mm	Standard	Stainless steel	M30	331.5	Heavy Split	24 mm	-30÷400 °C	-30÷130 °C
P901977	136 mm	Standard	Stainless steel	M36	171.5	Heavy Split	30 mm	-30÷400 °C	-30÷130 °C
P901978	186 mm	Standard	Stainless steel	M36	221.5	Heavy Split	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901979	246 mm	Standard	Stainless steel	M36	281.5	Heavy Split	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901980	296 mm	Standard	Stainless steel	M36	331.5	Heavy Split	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
