S400 Ø125 Heavy 2 Fixing point Anti-Slip
S400
Description
Description
The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required.
The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).
Basic features
| Design: | Heavy |
|---|---|
| Base material: | Metal |
| Diameter: | 125 mm |
| Max Load: | 100000÷200000 N |
| Fixing point: | 2 |
| Anti-slip: | Yes |
| Unit of measure: | Ea |
| Box: | - |
S400 Ø125 Heavy 2 Fixing point Anti-Slip

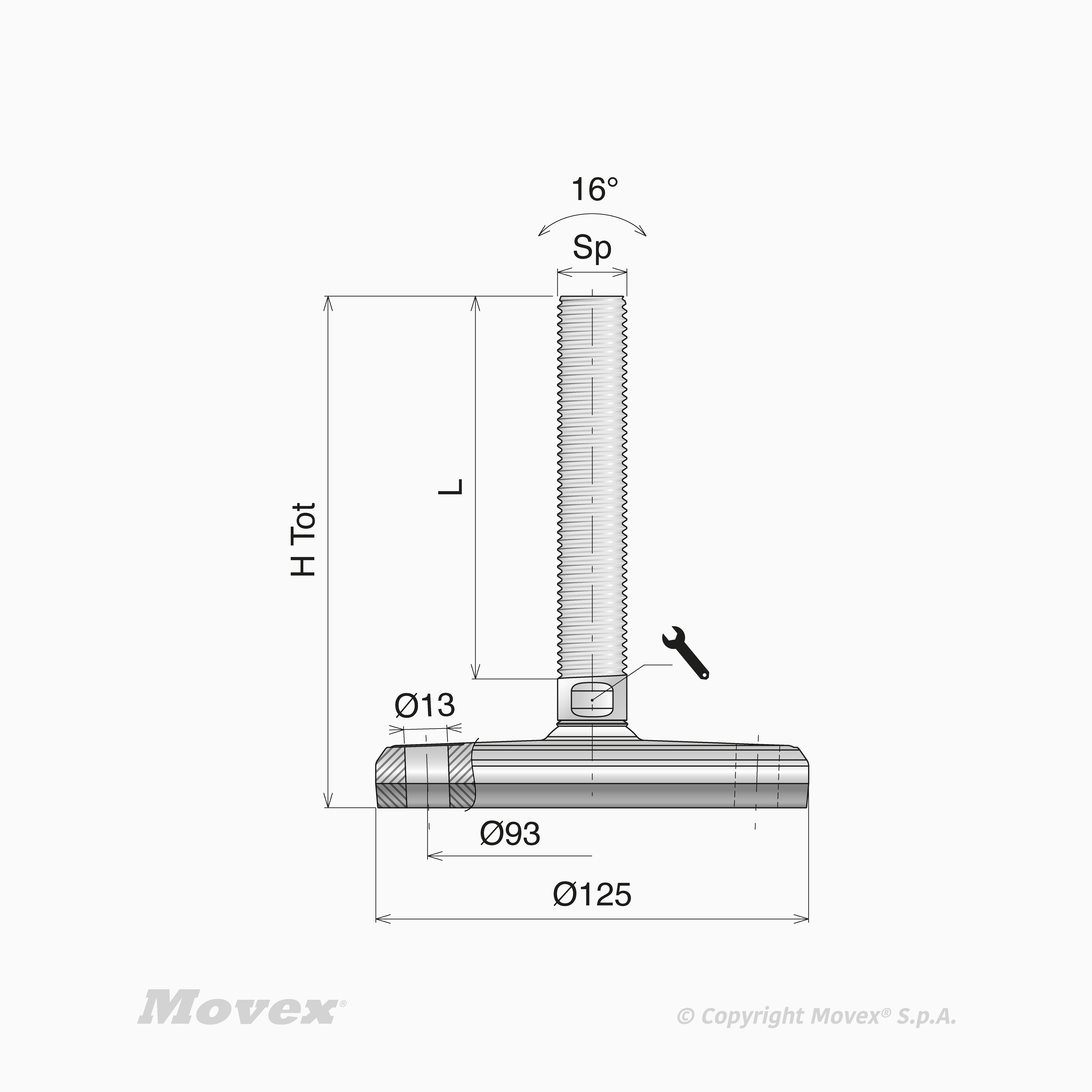

| L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 | Temperature range dry | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P901853 | 52.3 mm | Standard | Stainless steel | M20 | 88.5 | Heavy | 17 mm | -25÷100 °C |
|
| P901854 | 82.3 mm | Standard | Stainless steel | M20 | 118.5 | Heavy | 17 mm | -25÷100 °C |
|
| P901855 | 112.3 mm | Standard | Stainless steel | M20 | 148.5 | Heavy | 17 mm | -25÷100 °C |
|
| P901856 | 142.3 mm | Standard | Stainless steel | M20 | 178.5 | Heavy | 17 mm | -25÷100 °C |
|
| P901857 | 192.3 mm | Standard | Stainless steel | M20 | 228.5 | Heavy | 17 mm | -25÷100 °C |
|
| P901858 | 252.3 mm | Standard | Stainless steel | M20 | 288.5 | Heavy | 17 mm | -25÷100 °C |
|
| P901859 | 76 mm | Standard | Stainless steel | M24 | 118.5 | Heavy | 19 mm | -25÷100 °C |
|
| P901860 | 106 mm | Standard | Stainless steel | M24 | 148.5 | Heavy | 19 mm | -25÷100 °C |
|
| P901861 | 136 mm | Standard | Stainless steel | M24 | 178.5 | Heavy | 19 mm | -25÷100 °C |
|
| P901862 | 186 mm | Standard | Stainless steel | M24 | 228.5 | Heavy | 19 mm | -25÷100 °C |
|
| P901863 | 246 mm | Standard | Stainless steel | M24 | 288.5 | Heavy | 19 mm | -25÷100 °C |
|
| P901864 | 106 mm | Standard | Stainless steel | M30 | 148.5 | Heavy | 24 mm | -25÷100 °C |
|
| P901865 | 136 mm | Standard | Stainless steel | M30 | 178.5 | Heavy | 24 mm | -25÷100 °C |
|
| P901866 | 186 mm | Standard | Stainless steel | M30 | 228.5 | Heavy | 24 mm | -25÷100 °C |
|
| P901867 | 246 mm | Standard | Stainless steel | M30 | 288.5 | Heavy | 24 mm | -25÷100 °C |
|
| P901868 | 296 mm | Standard | Stainless steel | M30 | 338.5 | Heavy | 24 mm | -25÷100 °C |
|
| P901869 | 136 mm | Standard | Stainless steel | M36 | 178.5 | Heavy | 30 mm | -25÷100 °C |
|
| P901870 | 186 mm | Standard | Stainless steel | M36 | 228.5 | Heavy | 30 mm | -25÷100 °C |
|
| P901871 | 246 mm | Standard | Stainless steel | M36 | 288.5 | Heavy | 30 mm | -25÷100 °C |
|
| P901872 | 296 mm | Standard | Stainless steel | M36 | 338.5 | Heavy | 30 mm | -25÷100 °C |
|
