Home Leveling feet S400 S400 Ø105 Heavy 2 Fixing point

S400 Ø105 Heavy 2 Fixing point

S400

Enquire Now

Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	105 mm
Max Load:	100000÷200000 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

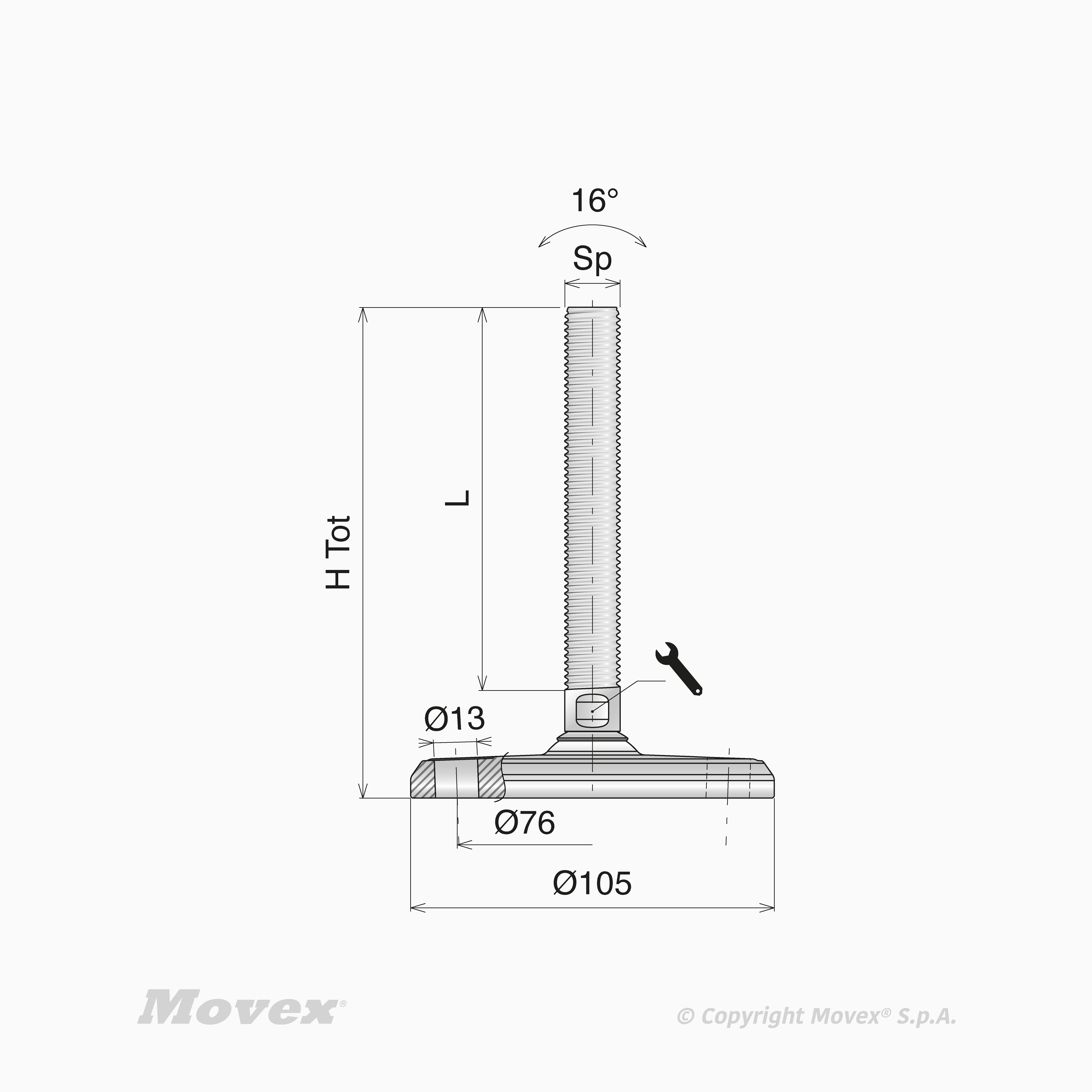

S400 Ø105 Heavy 2 Fixing point

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P901720	51.3 mm	Standard	Stainless steel	M16	82.5	Heavy	13 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901721	81.3 mm	Standard	Stainless steel	M16	112.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901722	111.3 mm	Standard	Stainless steel	M16	142.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901723	141.3 mm	Standard	Stainless steel	M16	172.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901724	191.3 mm	Standard	Stainless steel	M16	222.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901725	52.3 mm	Standard	Stainless steel	M20	82.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901726	82.3 mm	Standard	Stainless steel	M20	112.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901727	112.3 mm	Standard	Stainless steel	M20	142.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901728	142.3 mm	Standard	Stainless steel	M20	172.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901729	192.3 mm	Standard	Stainless steel	M20	222.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901730	252.3 mm	Standard	Stainless steel	M20	282.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901731	76 mm	Standard	Stainless steel	M24	112.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901732	106 mm	Standard	Stainless steel	M24	142.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901733	136 mm	Standard	Stainless steel	M24	172.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901734	186 mm	Standard	Stainless steel	M24	222.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901735	246 mm	Standard	Stainless steel	M24	282.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901736	106 mm	Standard	Stainless steel	M30	142.5	Heavy	24 mm	-30÷400 °C	-30÷130 °C
P901737	136 mm	Standard	Stainless steel	M30	172.5	Heavy	24 mm	-30÷400 °C	-30÷130 °C
P901738	186 mm	Standard	Stainless steel	M30	222.5	Heavy	24 mm	-30÷400 °C	-30÷130 °C
P901739	246 mm	Standard	Stainless steel	M30	282.5	Heavy	24 mm	-30÷400 °C	-30÷130 °C
P901740	296 mm	Standard	Stainless steel	M30	332.5	Heavy	24 mm	-30÷400 °C	-30÷130 °C
P901741	136 mm	Standard	Stainless steel	M36	172.5	Heavy	30 mm	-30÷400 °C	-30÷130 °C
P901742	186 mm	Standard	Stainless steel	M36	222.5	Heavy	30 mm	-30÷400 °C	-30÷130 °C
P901743	246 mm	Standard	Stainless steel	M36	282.5	Heavy	30 mm	-30÷400 °C	-30÷130 °C
P901744	296 mm	Standard	Stainless steel	M36	332.5	Heavy	30 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
