Home Leveling feet S400 S400 Ø105 Heavy

S400 Ø105 Heavy

S400

Enquire Now

Description

The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required. The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	105 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	No
Unit of measure:	Ea
Box:	-

S400 Ø105 Heavy

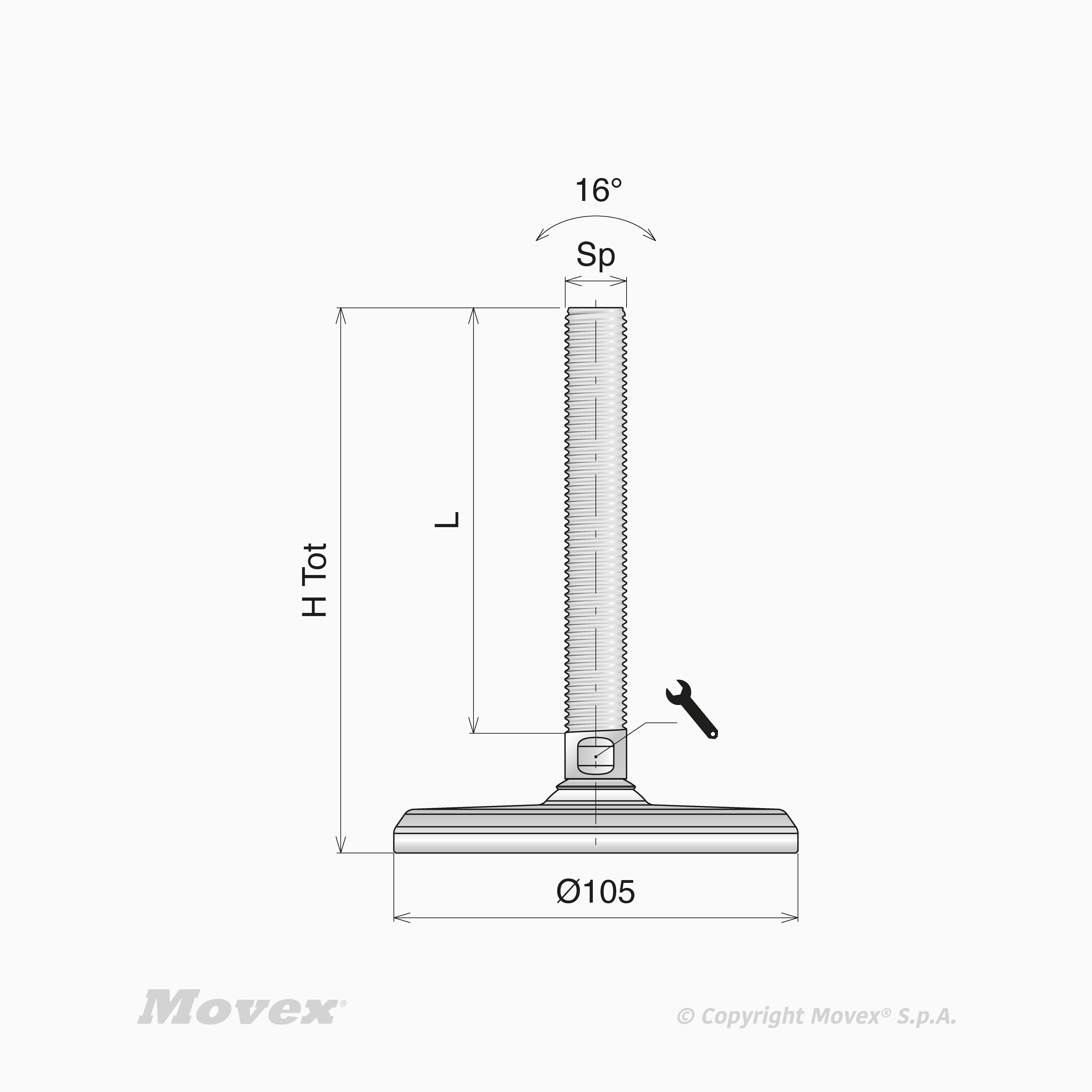

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P901504	51.3 mm	Standard	Stainless steel	M16	82.5	Heavy	13 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901505	81.3 mm	Standard	Stainless steel	M16	112.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901506	111.3 mm	Standard	Stainless steel	M16	142.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901507	141.3 mm	Standard	Stainless steel	M16	172.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901508	191.3 mm	Standard	Stainless steel	M16	222.5	Heavy	13 mm	-30÷400 °C	-30÷130 °C
P901509	52.3 mm	Standard	Stainless steel	M20	82.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901510	82.3 mm	Standard	Stainless steel	M20	112.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901511	112.3 mm	Standard	Stainless steel	M20	142.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901512	142.3 mm	Standard	Stainless steel	M20	172.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901513	192.3 mm	Standard	Stainless steel	M20	222.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901514	252.3 mm	Standard	Stainless steel	M20	282.5	Heavy	17 mm	-30÷400 °C	-30÷130 °C
P901515	76 mm	Standard	Stainless steel	M24	111.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901516	106 mm	Standard	Stainless steel	M24	142.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901517	136 mm	Standard	Stainless steel	M24	172.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901518	186 mm	Standard	Stainless steel	M24	222.5	Heavy	19 mm	-30÷400 °C	-30÷130 °C
P901519	246 mm	Standard	Stainless steel	M24	282.5	Heavy	19 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901520	106 mm	Standard	Stainless steel	M30	142.5	Heavy	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901521	136 mm	Standard	Stainless steel	M30	172.5	Heavy	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901522	186 mm	Standard	Stainless steel	M30	222.5	Heavy	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901523	246 mm	Standard	Stainless steel	M30	282.5	Heavy	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901524	296 mm	Standard	Stainless steel	M30	332.5	Heavy	24 mm Max Load 30000 N	-30÷400 °C	-30÷130 °C
P901525	136 mm	Standard	Stainless steel	M36	172.5	Heavy	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901526	186 mm	Standard	Stainless steel	M36	222.5	Heavy	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901527	246 mm	Standard	Stainless steel	M36	282.5	Heavy	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
P901528	296 mm	Standard	Stainless steel	M36	332.5	Heavy	30 mm Max Load 45000 N	-30÷400 °C	-30÷130 °C
