Round Profile For Steel Rods Part 166
Extruded profiles
Description
Description
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Products stored in coils will have the tendency to retain a certain deformation when uncoiled, therefore consistency in the profile cross section over the full length of the coil cannot be guaranteed.
Basic features
| Series: | Round Profile |
|---|---|
| Material: | Plastic profile |
| Unit of measure: | Meter |
| Box: | - |
Round Profile For Steel Rods Part 166

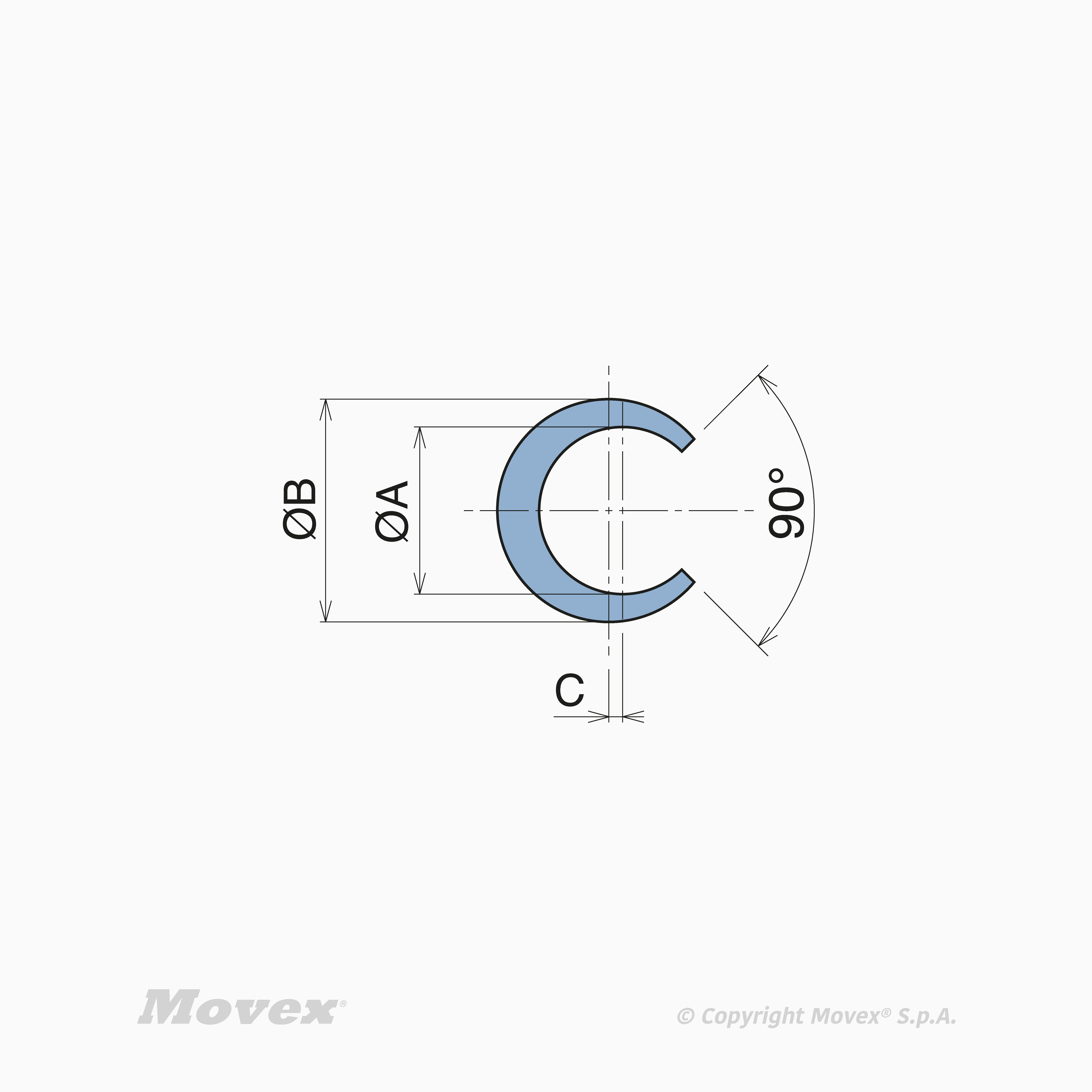

| Part | Material & color | Supply length | A | B | Operating Temperature °C | ||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| P16601 | P166 | Ti-White | 30 m / 100 ft coils | 8 mm | 12 mm | -40÷80 °C |
|
| P16601B | P166 | BluLub | 30 m / 100 ft coils | 8 mm | 12 mm | -40÷80 °C |
|
| P16601BL | P166 | UHMW-PE Blue | 30 m / 100 ft coils | 8 mm | 12 mm | -40÷80 °C |
|
| P16602 | P166 | Ti-White | 30 m / 100 ft coils | 10 mm | 14 mm | -40÷80 °C |
|
| P16602B | P166 | BluLub | 30 m / 100 ft coils | 10 mm | 14 mm | -40÷80 °C |
|
| P16602BL | P166 | UHMW-PE Blue | 30 m / 100 ft coils | 10 mm | 14 mm | -40÷80 °C |
|
| P16603 | P166 | Ti-White | 30 m / 100 ft coils | 12 mm | 16 mm | -40÷80 °C |
|
| P16603B | P166 | BluLub | 30 m / 100 ft coils | 12 mm | 16 mm | -40÷80 °C |
|
| P16603BL | P166 | UHMW-PE Blue | 30 m / 100 ft coils | 12 mm | 16 mm | -40÷80 °C |
|
| P16604 | P166 | Ti-White | 30 m / 100 ft coils | 16 mm | 20 mm | -40÷80 °C |
|
| P16604B | P166 | BluLub | 30 m / 100 ft coils | 16 mm | 20 mm | -40÷80 °C |
|
| P16604BL | P166 | UHMW-PE Blue | 30 m / 100 ft coils | 16 mm | 20 mm | -40÷80 °C |
|
