RLT-B
Brakes for ELEROLL roller tracks
Polycarbonate
Description
Main specifications
Material
Polycarbonate (PC), black colour.
Standard executions

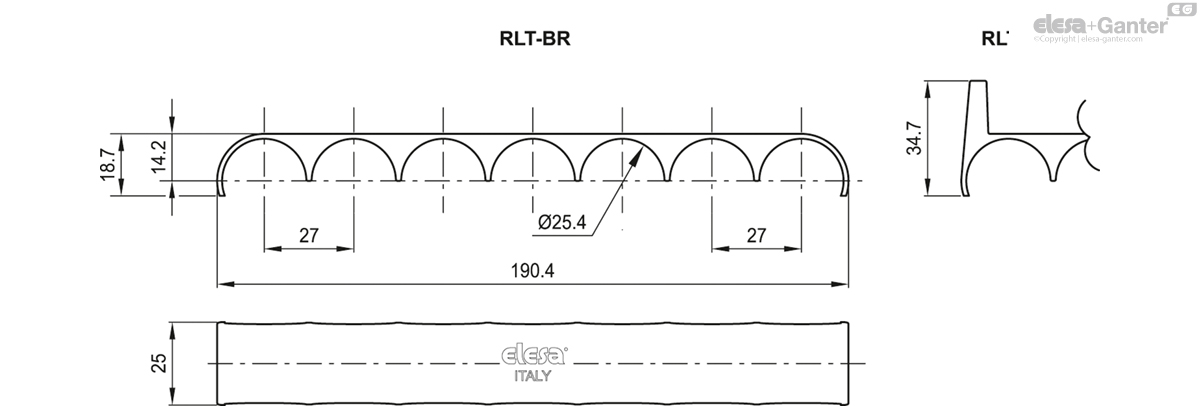

- RLT-BR: brake for RTL-U roller elements.
- RLT-BRS: brake for RLT-U roller elements with stop device.
General information
Features and applications
RLT-B brakes allow to slow down and/or stop packages handled on ELEROLL roller tracks.
The brakes are snap-in assembled on RLT-U roller elements without the need for screws or other fasteners.

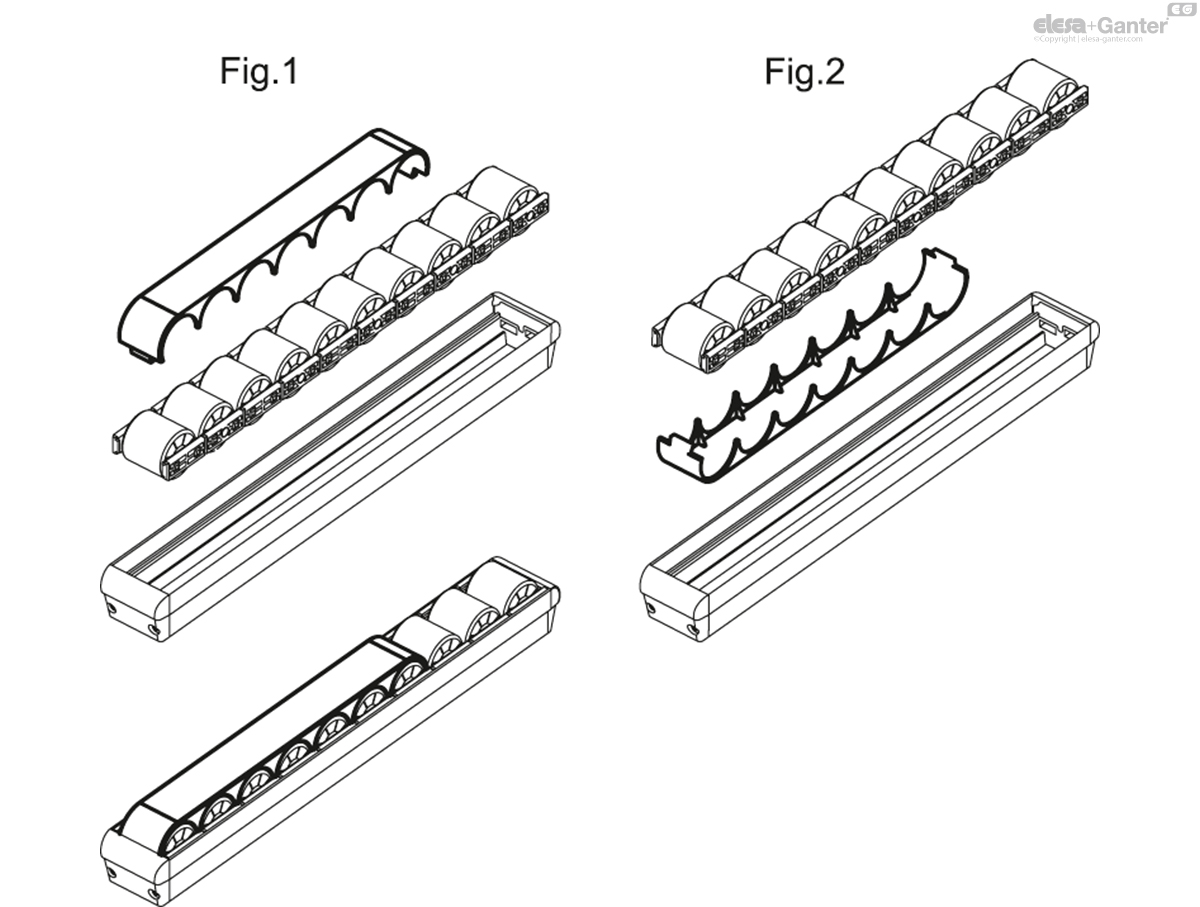

RLT-BR brake can be assembled on the upper side of RLT-U-PA and RLT-U-TPU roller elements (Fig. 1) or on the lower side of the RLT-U-TPU roller elements (Fig. 2).
 RLT-BR
 |
|||
|---|---|---|---|
| Code | Description | Actions | |
| 429831 | RLT-BRS | 14 |
|
RLT-BS
|
|||
|---|---|---|---|
| Code | Description | Actions | |
| 429836 | RLT-BR | 12 |
|
