RE.F7-N-HT

Wheel centre body

Phenolic based (PF) Duroplast monolithic wheel, resistant to temperatures up to 300°C.

Rolling action

Hub with steel and PTFE bosses.

Turning plate bracket

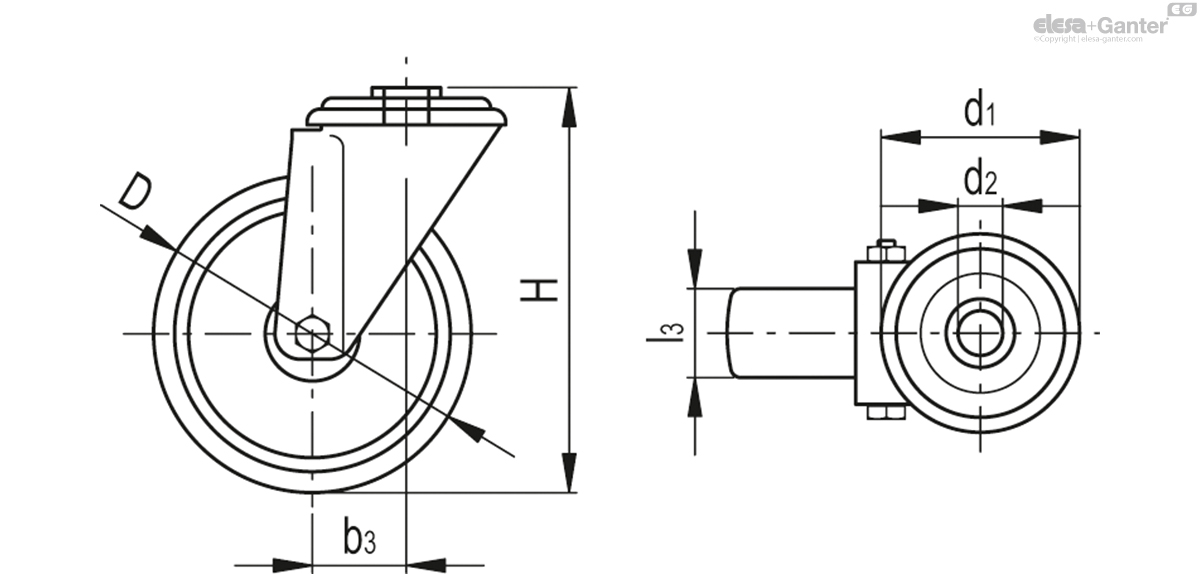

Zinc-plated steel sheet, the bracket is designed to withstand loads up to 2000N. The presence of a double ball race turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability. Does not require maintenance. It consists of (see Fig.1):

1. fitting plate: electrolytically zinc-plated steel sheet;
2. fork: electrolytically zinc-plated steel sheet;
3. ball race ring: electrolytically zinc-plated steel sheet;
4. central pin: incorporated in the plate, cold reflanged;
5. rotation system: dual ball ring, high temperature grease-lubricated;
6. dust seal: RAL 7015 dark grey technopolymer.

Standard executions

• SBL: turning plate bracket, without brake.
• FBL: turning plate bracket and centre pass-through hole, without brake.
