RE.C7-G

Twin castors for the general public with steel bracket

Vulcanised rubber coating

Enquire Now

RE.C7-SBL-G

Twin castors for the general public with steel bracket

Turning plate bracket, without brake

RE.C7-SBF-G

Twin castors for the general public with steel bracket

Turning plate bracket, with brake

RE.C7-CBL-G

Twin castors for the general public with steel bracket

Turning plate bracket and threaded centre pin, without brake

RE.C7-CBF-G

Twin castors for the general public with steel bracket

Turning plate bracket and threaded centre pin, with brake

Description

Main specifications

Covering

Grey anti-trace rubber.

Wheel centre body

Polypropylene-based (PP) technopolymer.

Rolling action

Hub with pass-through hole.

Turning plate bracket

Electrolytically zinc-plated steel sheet bracket.

The presence of a double ball race and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.

Front-actuated brake

Total brake that locks rotation of the wheel and the technopolymer bracket.

The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.

Standard executions

SBL-G: turning plate bracket, without brake.
SBF-G: turning plate bracket, with brake.
CBL-G: turning plate bracket and threaded centre pin, without brake.
CBF-G: turning plate bracket and threaded centre pin, with brake.

General information

Applications

Wheels for the general public with high carrying capacity, excellent smoothness and elasticity features.

Environmental conditions

The twin wheels RE.C7-G are suitable for use in humid environments and in the presence of medium-aggressive chemical environments; use in environments with the presence of organic, chlorinated solvents, hydrocarbons and mineral oils is not recommended.

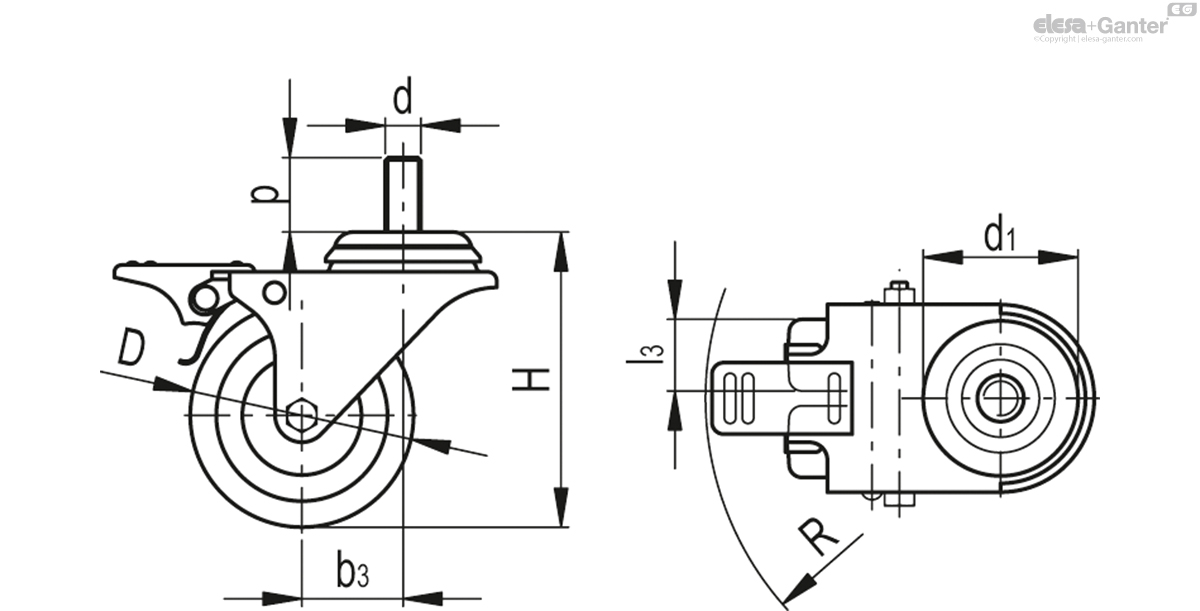

RE.C7-CBF-G

		D	d	p	d₁	l₃	b₃	H	R	Dynamic carrying capacity# [N]
Code	Description											Actions
452202	RE.C7-050-CBF-G	50	M10	15	41	18	28	71	84	600	370
452210	RE.C7-075-CBF-G	75	M12	25	52	24	34	99	97	800	680
