Home Castors and Wheels Polyurethane wheels RE.C6-C

RE.C6-C

Castors for general use

Injected polyurethane coating

Enquire Now

RE.C6-PBL

Castors for general use

Fixed plate bracket, without brake

RE.C6-SBL

Castors for general use

Turning plate bracket, without brake

RE.C6-SBF

Castors for general use

Turning plate bracket, with brake

RE.C6-CBL

Castors for general use

Turning plate bracket and threaded centre pin, without brake

RE.C6-CBF

Castors for general use

Turning plate bracket and threaded centre pin, with brake

RE.C6-FBL

Castors for general use

Turning plate bracket and centre pass-through hole, without brake

RE.C6-FBF

Castors for general use

Turning plate bracket and centre pass-through hole, with brake

Description

Main specifications

Covering

Injected polyurethane, hardness 55 Shore D.

Wheel centre body

Polyamide based (PA) technopolymer.

Rolling action

Hub with pass-through hole.

Fixed plate bracket

Electrolytically zinc-plated steel sheet bracket.

Turning plate bracket

Electrolytically zinc-plated steel sheet bracket.

The presence of a double ball race and direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.

Front-actuated brake

Total brake that locks rotation of the wheel and the technopolymer bracket.

The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.

Standard executions

PBL: fixed plate bracket, without brake.

SBL: turning plate bracket, without brake.

SBF: turning plate bracket, with brake.

CBL: turning plate bracket and threaded centre pin, without brake.

CBF: turning plate bracket and threaded centre pin, with brake.

FBL: turning plate bracket and centre pass-through hole, without brake.

FBF: turning plate bracket and centre pass-through hole, with brake.

General information

Applications

Castors for the general public, excellent rolling resistance and elasticity features, high wear and tearing resistance.

Environmental conditions

Suitable for use in industrial and institutional environments, even in the presence of moisture and chemical agents.

The good resistance to frequent cleaning cycles makes it suitable for environments where it is necessary to ensure hygiene.

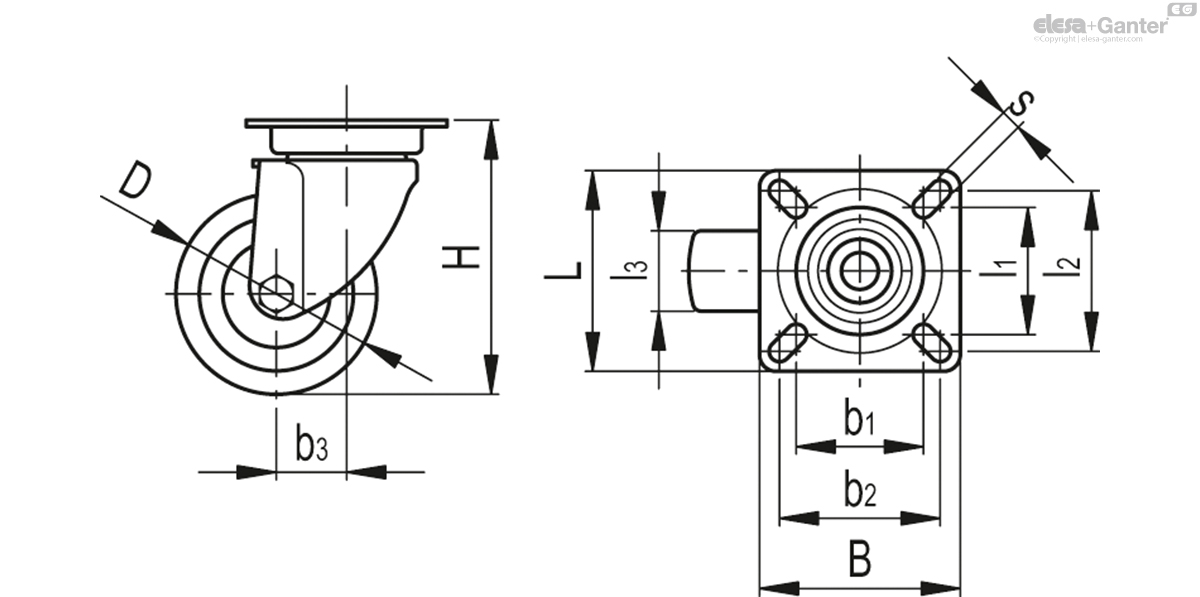

RE.C6-SBL

		D	l₁	l₂	l₃	H	B	L	s	b₁	b₂	b₃	Dynamic carrying capacity# [N]
Code	Description														Actions
451926	RE.C6-040-SBL-C	40	30	32	18	59	42	42	5	30	32	23	400	110
451928	RE.C6-050-SBL-C	50	38.5	40	18	66	55	55	6	38.5	40	24	550	130
451930	RE.C6-060-SBL-C	60	38.5	45	24	82	60	60	6	38.5	45	21	700	240
