RE.C6-G

Twin castors for the general public with steel bracket

Injected polyurethane coating

Enquire Now

RE.C6-SBL-G

Twin castors for the general public with steel bracket

Turning plate bracket, without brake

RE.C6-SBF-G

Twin castors for the general public with steel bracket

Turning plate bracket, with brake

RE.C6-CBL-G

Twin castors for the general public with steel bracket

Turning plate bracket and threaded centre pin, without brake.

RE.C6-CBF-G

Twin castors for the general public with steel bracket

Turning plate bracket and threaded centre pin, with brake.

RE.C6-FBL-G

Twin castors for the general public with steel bracket

Turning plate bracket and centre pass-through hole, without brake.

RE.C6-FBF-G

Twin castors for the general public with steel bracket

Turning plate bracket and centre pass-through hole, with brake.

Description

Main specifications

Covering

Injected polyurethan, hardness 55 Shore D.

Wheel centre body

Polyamide-based technopolymer (PA).

Rolling action

Hub with pass-through hole.

Turning plate bracket

Electrolytically zinc-plated steel sheet bracket.

The presence of a double ball race turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.

Front-actuated brake

Total brake that locks rotation of the wheel and the technopolymer bracket.

The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.

Standard executions

SBL-G: turning plate bracket, without brake.
SBF-G: turning plate bracket, with brake.
CBL-G: turning plate bracket and threaded centre pin, without brake.
CBF-G: turning plate bracket and threaded centre pin, with brake.
FBL-G: turning plate bracket and centre pass-through hole, without brake.
FBF-G: turning plate bracket and centre pass-through hole, with brake.

General information

Applications

Wheels for the general public with high carrying capacity, excellent smoothness and elasticity features, good wear and tearing resistance.

Environmental conditions

RE.C6 twin wheels are suitable for use in industrial and institutional environments, even in the presence of moisture and chemical agents.

The good resistance to frequent cleaning cycles makes it suitable for environments where it is necessary to ensure hygiene.

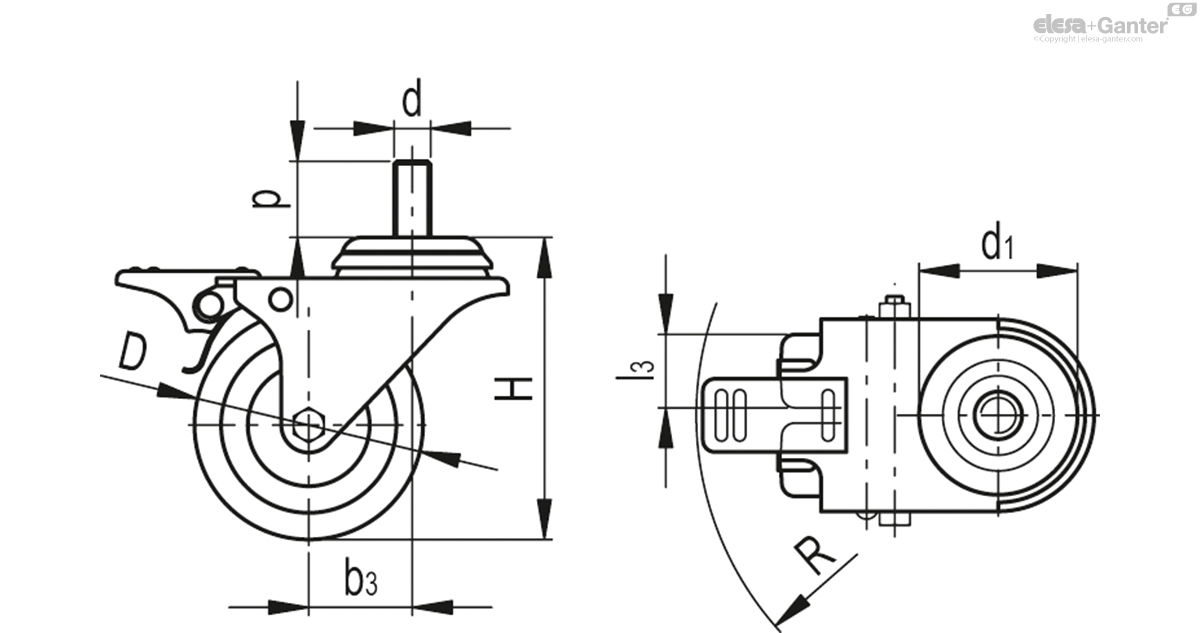

RE.C6-CBF-G

		D	d	p	d₁	l₃	H	b₃	R	Dynamic carrying capacity# [N]
Code	Description											Actions
451969	RE.C6-050-CBF-G	50	M10	25	52	18	71	25.5	83	1400	360
