RDB-F

Toothed clamping elements

Front mounting, holes for cylindrical-head screws

RDB-CF

Toothed clamping elements

Integral with case, front mounting, holes for cylindrical-head screws

RDB-B

Toothed clamping elements

Back mounting, pass-through holes, stainless steel hexagonal nuts

RDB-CB

Toothed clamping elements

Integral with case, back mounting, pass-through holes, stainless steel hexagonal nuts

Description

Main specifications

Material

Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Standard executions

Central plain pass-through hole and two holes for pins.

RDB-F: front mounting by means of two holes for cylindrical-head screws.

RDB-CF: integral with case, front mounting by means of two holes for cylindrical-head screws.

RDB-B: rear mounting by means of two pass-through holes and two stainless steel hexagonal nuts (included in the supply).

RDB-CB: integral with case, rear mounting by means of two pass-through holes and two stainless steel hexagonal nuts (included in the supply).

General information

Features and applications

The toothed clamping elements RDB-F and RDB-B, coupled between them or with the executions RDB-CF or RDB-CB, allow to lock the position of two components rotating around an axis.

The locking angle is adjustable with a pitch of 6 °.

Accessories

Accessories on request

AISI 301 stainless steel push springs facilitating the detachment of the toothed clamping elements.

Code

Description

Max load

[N]

51965

ML-RDB.32

51967

ML-RDB.40

RDB-CF

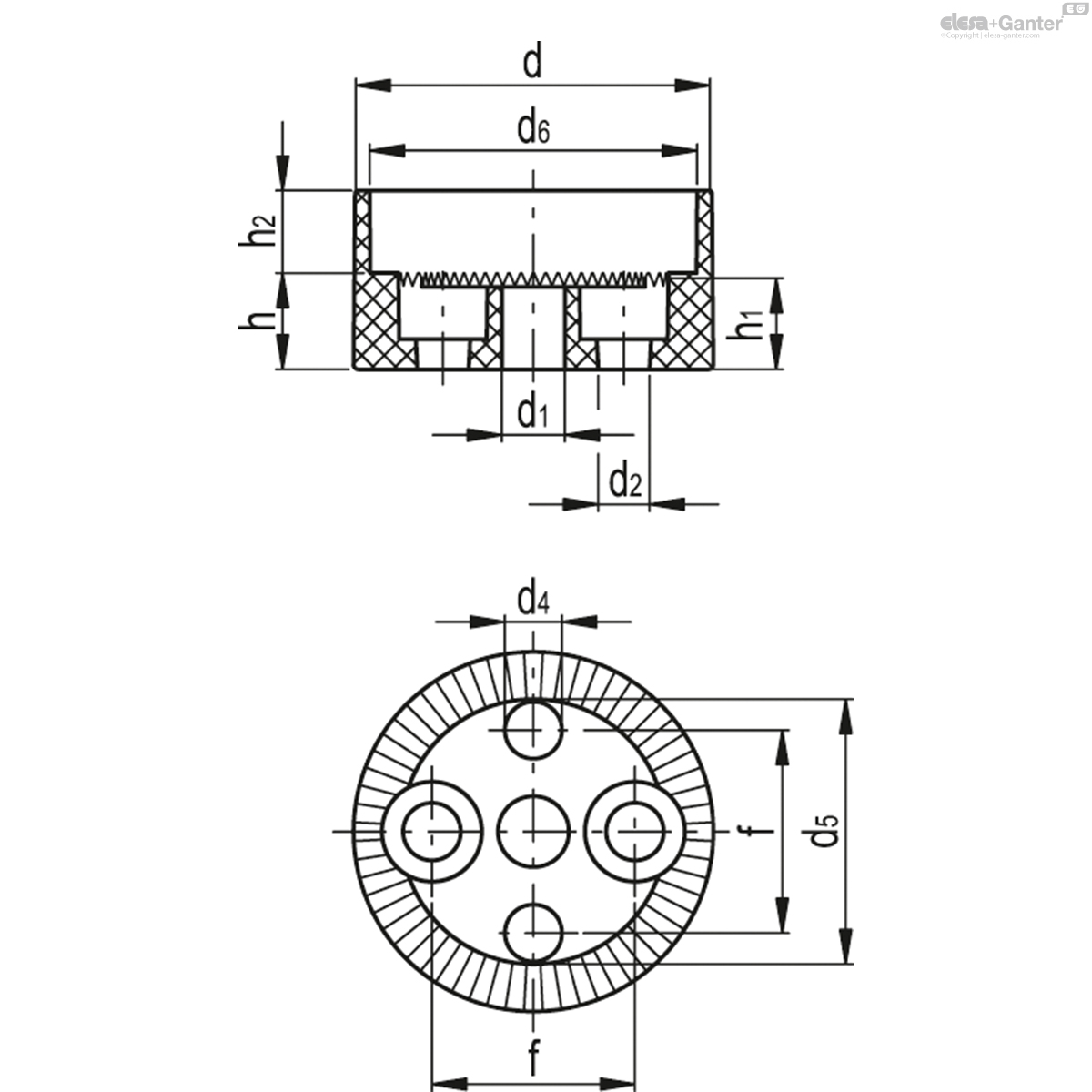

		d	d₁	d₂	d₄	d₅	d₆	f	h	h₁	h₂	h₃	w _min.	C# [Nm]
Code	Description															Actions
51985	RDB.32-60-CF	35.5	6.3	5	5	23.5	32.5	18	9.5	9	8.2	18	1.2	80	15
51995	RDB.40-60-CF	43.5	8.3	6	6	30	40	23	12	11.4	10.5	22.8	1.3	140	26
