Home Machine Elements Cam locking levers RDB

RDB

Toothed clamping elements

SUPER-technopolymer

Enquire Now

RDB-F

Toothed clamping elements

Front mounting, holes for cylindrical-head screws

RDB-CF

Toothed clamping elements

Integral with case, front mounting, holes for cylindrical-head screws

RDB-B

Toothed clamping elements

Back mounting, pass-through holes, stainless steel hexagonal nuts

RDB-CB

Toothed clamping elements

Integral with case, back mounting, pass-through holes, stainless steel hexagonal nuts

Description

Main specifications

Material

Special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Standard executions

Central plain pass-through hole and two holes for pins.

RDB-F: front mounting by means of two holes for cylindrical-head screws.

RDB-CF: integral with case, front mounting by means of two holes for cylindrical-head screws.

RDB-B: rear mounting by means of two pass-through holes and two stainless steel hexagonal nuts (included in the supply).

RDB-CB: integral with case, rear mounting by means of two pass-through holes and two stainless steel hexagonal nuts (included in the supply).

General information

Features and applications

The toothed clamping elements RDB-F and RDB-B, coupled between them or with the executions RDB-CF or RDB-CB, allow to lock the position of two components rotating around an axis.

The locking angle is adjustable with a pitch of 6 °.

Accessories

Accessories on request

AISI 301 stainless steel push springs facilitating the detachment of the toothed clamping elements.

Code

Description

Max load

[N]

51965

ML-RDB.32

51967

ML-RDB.40

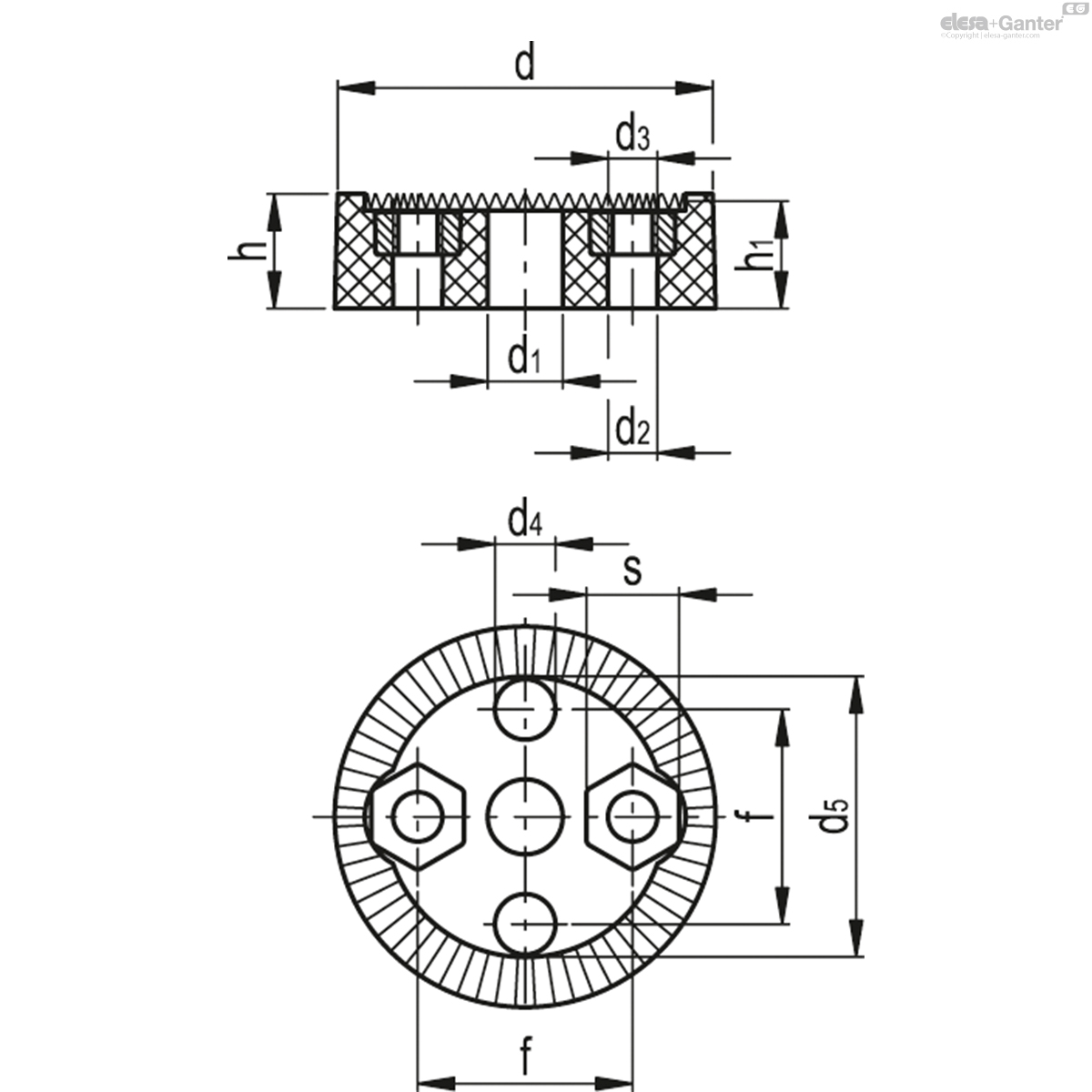

RDB-B

		d	d₁	d₂	d₃	d₄	d₅	f	h	h₁	h₃	s	w _min.	C# [Nm]
Code	Description															Actions
51983	RDB.32-60-B	32	6.3	4	M4	5	23.5	18	9.5	9	18	7	1.2	80	17
51993	RDB.40-60-B	40	8.3	5	M5	6	30	23	12	11.4	22.8	8	1.3	120	18
