Indexing plungers

Rest position, SUPER-technopolymer body

Enquire Now

PMT.200-A

Indexing plungers

Black-oxide steel plunger, without locking nut

PMT.200-AK

Indexing plungers

Black-oxide steel plunger, with locking nut

PMT.200-SST-A

Indexing plungers

AISI 303 stainless steel plunger, without locking nut

PMT.200-SST-AK

Indexing plungers

AISI 303 stainless steel plunger, with locking nut

Description

Main specifications

Threaded body

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.

Plunger

Black-oxide hardened steel or AISI 303 stainless steel.

Suggested tolerance H7 for matching hole.

Lever

Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Spring

AISI 302 stainless steel.

Locking nut

NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.

Available also as accessory sold separately (see table).

Standard executions

PMT.200-A: black-oxide steel plunger, without locking nut.
PMT.200-AK: black-oxide steel plunger, with locking nut (supplied not assembled).
PMT.200-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic.
PMT.200-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic.

General information

Features and applications

PMT.200 lever indexing plungers are used when the plunger must be retracted quickly.
By rotating the lifting lever by 180°, the plunger stops in the retracted position in which the lever is kept by a notch.
High lightness and high mechanical resistance of the product.
Anticorrosive material: suitable even in the presence of liquid or humidity (PMT.200-SST).
The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is required.

Assembly instructions

Make sure that no machining residues are left on the threaded hole for the assembly of PMT.200 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).

SUPER-technopolymer product based on ELESA technology, dimensions of the threaded body and plunger according to GN 612 standards as agreed with Otto Ganter GmbH Co. KG.

Knob: Elesa original design.

Accessories

Accessories on request

NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer locking nut (see table).

PMT.200-AK

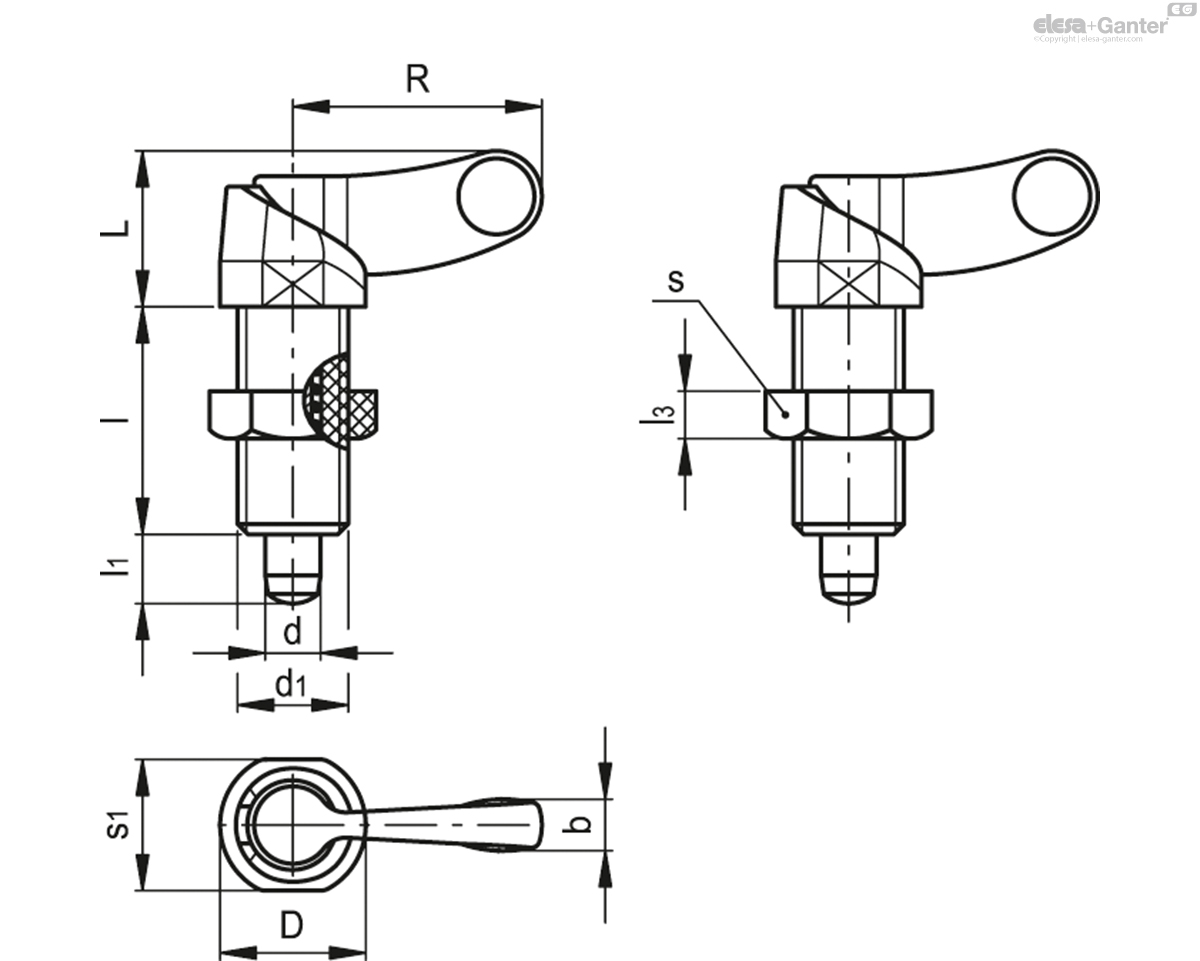

		d Plunger _{-0.15 -0.1} Hole _H7	d₁	L	D	R	b	l	l₁	l₃	s	s₁	[N]*	[N]#	Max. tightening torque [Nm]	Max. static load F[N]
Code	Description																	Actions
51718	PMT.200-4-M10x1-AK	4	M10x1	14	13	22	5	19	6	7	16	12	7	20	5	1500	33
51719	PMT.200-5-M10x1-AK	5	M10x1	14	13	22	5	19	6	7	16	12	7	20	5	1500	33
51720	PMT.200-5-M12x1,5-AK	5	M12x1.5	17	15.5	26.5	5.5	26	8	8	19	14	9	35	9	3000	33
51722	PMT.200-6-M12x1,5-AK	6	M12x1.5	17	15.5	26.5	5.5	26	8	8	19	14	9	35	9	3000	33
51724	PMT.200-6-M16x1,5-AK	6	M16x1.5	21	20.5	32.5	7	30	10	10	24	19	10	40	18	3000	33
51731	PMT.200-8-M16x1,5-AK	8	M16x1.5	21	20.5	32.5	7	30	10	10	24	19	10	40	18	3000	50
51732	PMT.200-8-M20x1,5-AK	8	M20x1.5	25	25.5	40	9	36	12	11	30	24	20	60	25	4500	33
51736	PMT.200-10-M20x1,5-AK	10	M20x1.5	25	25.5	40	9	36	12	11	30	24	20	60	25	4500	33
