PMT.100

Indexing plungers

SUPER-technopolymer body

Enquire Now

PMT.100-A

Indexing plungers

Black-oxide steel plunger, without locking nut

PMT.100-AK

Indexing plungers

Black-oxide steel plunger, with locking nut

PMT.100-SST-A

Indexing plungers

AISI 303 stainless steel plunger, without locking nut

PMT.100-SST-AK

Indexing plungers

AISI 303 stainless steel plunger, with locking nut

Description

Main specifications

Threaded body

Glass-fibre reinforced polyamide based (PA) SUPER-tecnopolymer.

Plunger

Black-oxide hardened steel or AISI 303 stainless steel.

Suggested tolerance for matching hole = H7.

Knob

High-resilience polyamide based (PA) technopolymer, black colour or RAL 3000 red colour (C6), matte finish.

Spring

AISI 302 stainless steel.

Locking nut

NTT: glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.

Available also as accessory sold separately (see table).

Standard executions

PMT.100-A: black-oxide steel plunger, without locking nut.

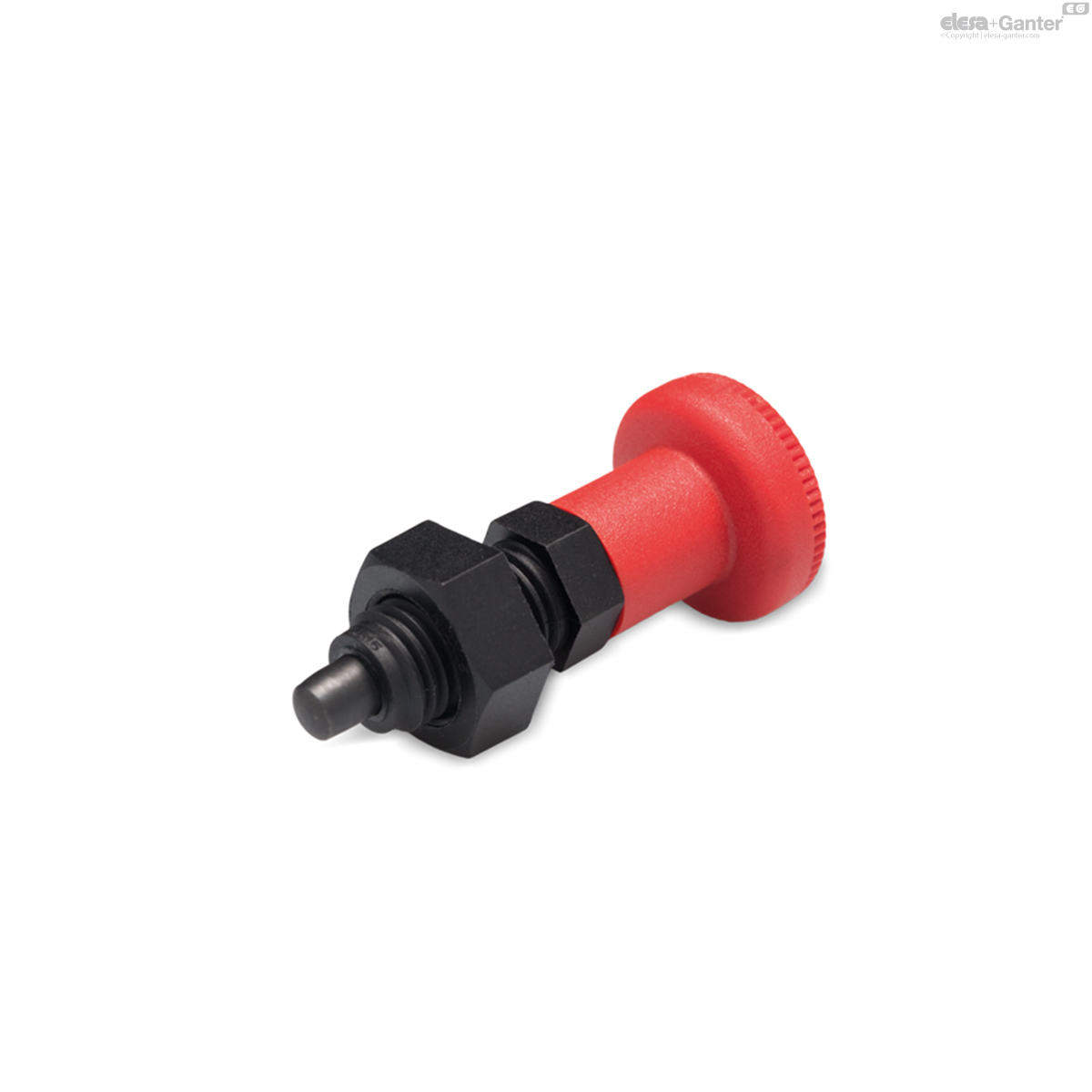

PMT.100-AK: black-oxide steel plunger, with locking nut (supplied not assembled).
PMT.100-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic.
PMT.100-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic.

General information

Features and applications

Lightness and high mechanical resistance of the product.
The SUPER-technopolymer threaded body of the plunger offers a low friction factor to the plunger stroke; no lubricating maintenance is required.
Anticorrosive material: suitable even in the presence of liquid or humidity (PMT.100-SST).
Resistant to several cleaning cycles with solvents and other chemical agents, for this reason they are suitable for applications as in the pharmaceutical or food industry.

Assembly instructions

Make sure that no machining residues are left on the threaded hole for the assembly of PMT.100 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).

SUPER-technopolymer product based on ELESA technology, dimensions according to GN 617 standards as agreed with Otto Ganter GmbH Co. KG.

Accessories

Accessories on request

NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer locking nut (see table).

PMT.100-AK

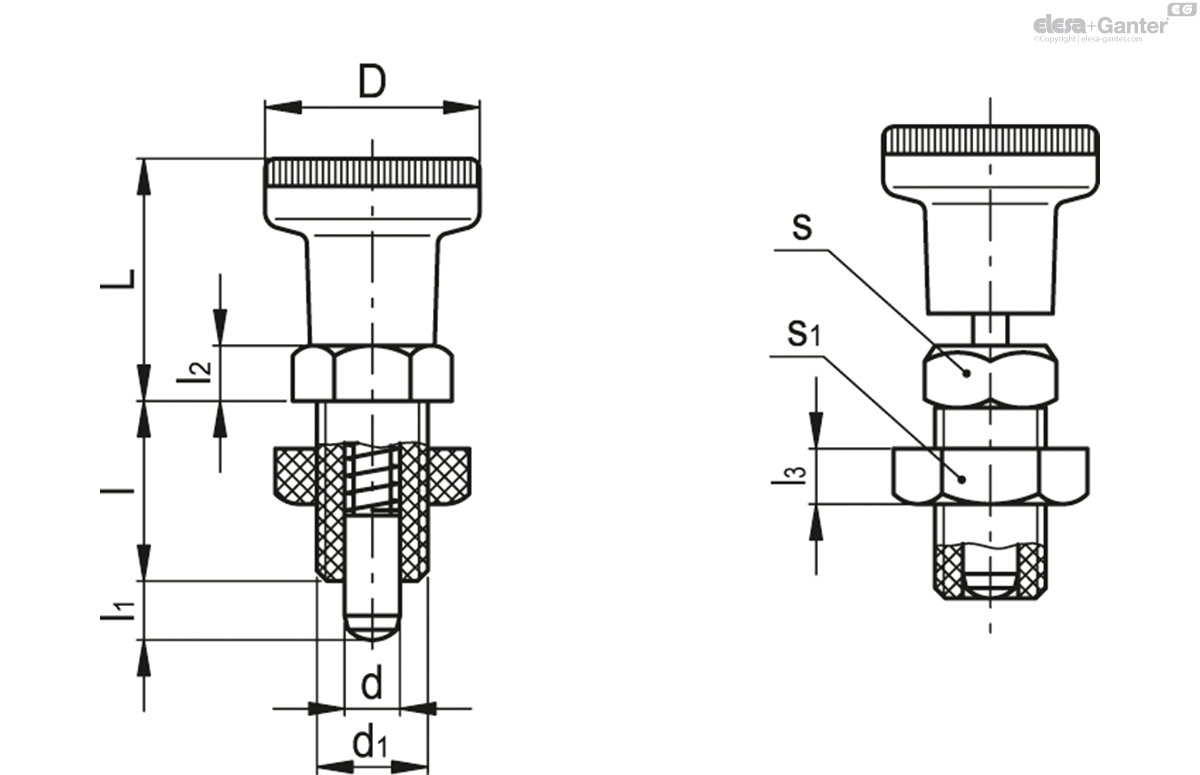

		Color	d Plunger _{-0.15 -0.1} Hole _H7	d₁	L	D	l	l₁	l₂	l₃	s	s₁	[N]*	[N]#	Max. tightening torque [Nm]	Static load at breakage F [N]
Code	Description																	Actions
51521	PMT.100-5-M10x1-AK	C9 - RAL 9005	5	M10x1	23	21	17	5	5	7	12	16	7	17	5	2300	23
51521-C6	PMT.100-5-M10x1-AK-C6	C6 - RAL 3000	5	M10x1	23	21	17	5	5	7	12	16	7	17	5	2300	23
51522	PMT.100-6-M12x1,5-AK	C9 - RAL 9005	6	M12x1.5	28	25	20	6	6	8	14	19	9	24	10	3500	33
51522-C6	PMT.100-6-M12x1,5-AK-C6	C6 - RAL 3000	6	M12x1.5	28	25	20	6	6	8	14	19	9	24	10	3500	33
51531	PMT.100-8-M16x1,5-AK	C9 - RAL 9005	8	M16x1.5	35	31	26	8	8	10	19	24	11	30	18	5900	50
51531-C6	PMT.100-8-M16x1,5-AK-C6	C6 - RAL 3000	8	M16x1.5	35	31	26	8	8	10	19	24	11	30	18	5900	50
51532	PMT.100-10-M20x1,5-AK	C9 - RAL 9005	10	M20x1.5	37	31	33	10	10	11	22	30	19	45	25	7700	69
51532-C6	PMT.100-10-M20x1,5-AK-C6	C6 - RAL 3000	10	M20x1.5	37	31	33	10	10	11	22	30	19	45	25	7700	69
