Connection Joint
Side brackets
Description
Basic features
| Type: | Connecting joint |
|---|---|
| Material: | Stainless steel |
| Unit of measure: | Ea |
| Box: | 4 |

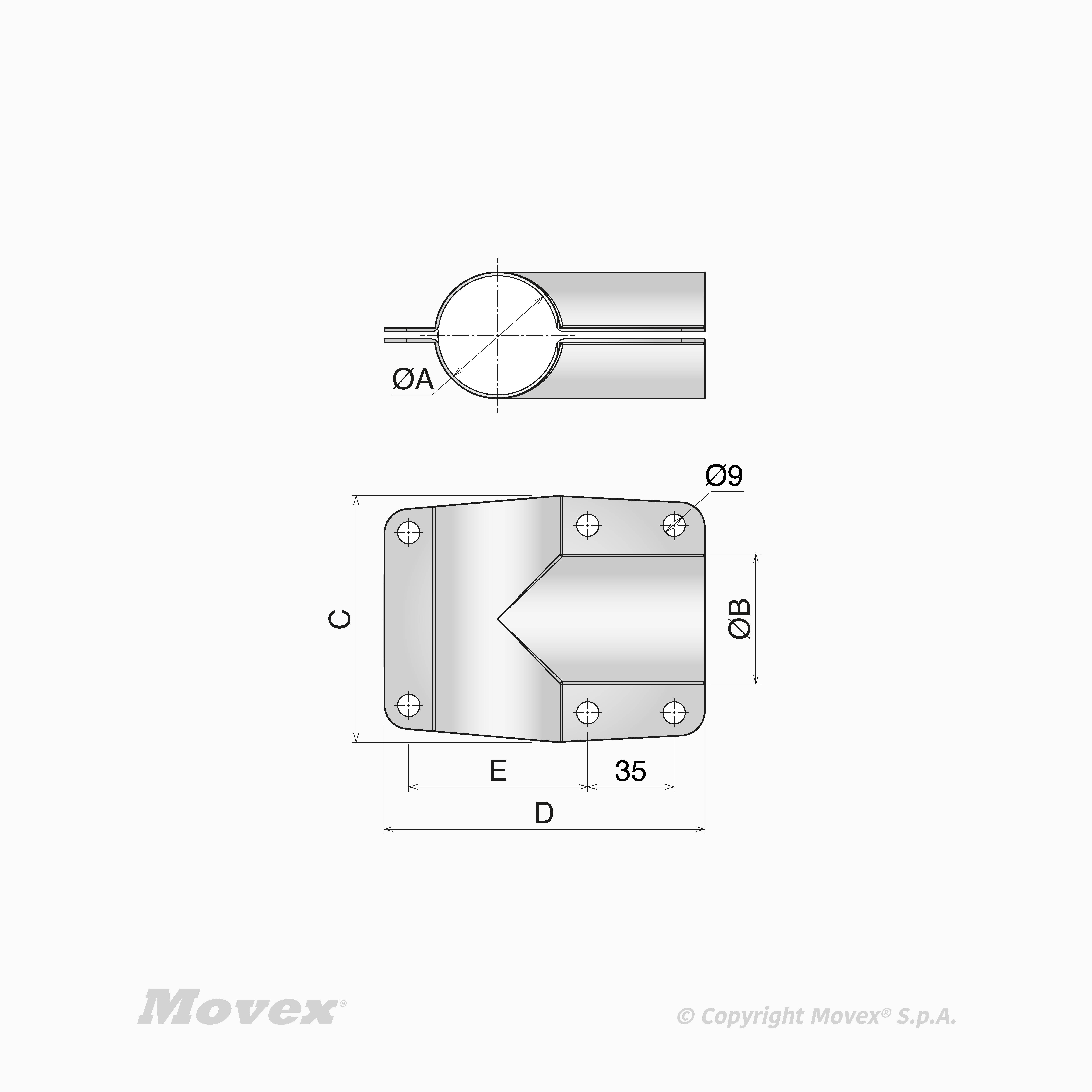

Part 414
| Part | Material | A | B | E | C | D | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P41401 | P414 | AISI 304 | 48.3 mm | 48.3 mm | 72.5 mm | 100 | 130 mm | -30÷400 °C | -30÷130 °C |
|
| P41402 | P414 | AISI 304 | 60.3 mm | 60.3 mm | 92.5 mm | 100 | 150 mm | -30÷400 °C | -30÷130 °C |
|
