03 5941 7177
Side Mount
Side brackets
Description
Basic features
| Type: | Side bracket |
|---|---|
| Material: | Plastic |
| Unit of measure: | Ea |
| Box: | 4 |

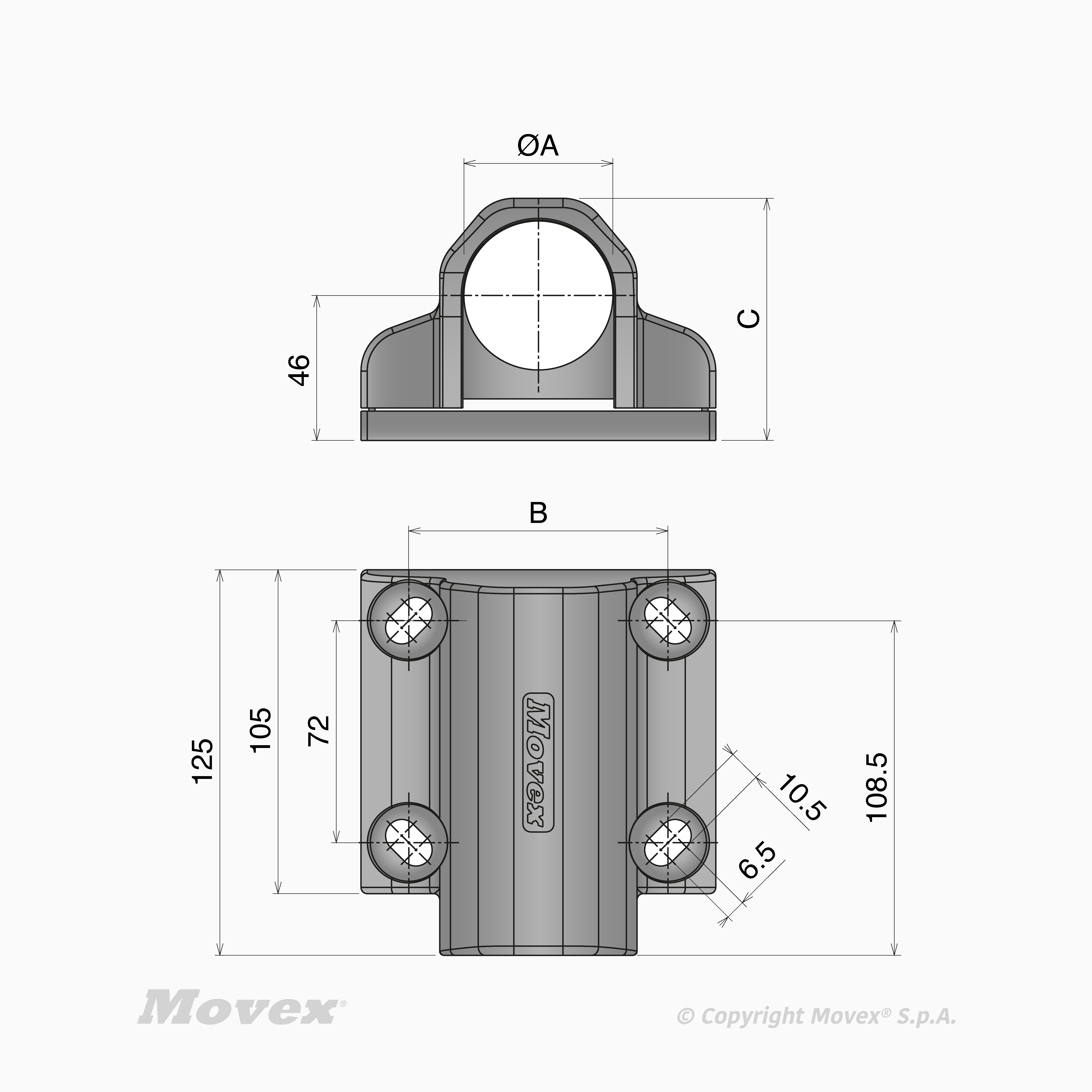

Part 408
| Part | Material | A | B | C | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||
| P40801 | P408 | Reinforced polyamide | 48.3 mm | 84 mm | 72.5 | -20÷120 °C | -20÷120 °C |
|
| P40802 | P408 | Reinforced polyamide | 50.9 mm | 94 mm | 83.5 | -20÷120 °C | -20÷120 °C |
|
| P40803 | P408 | Reinforced polyamide | 60.3 mm | 94 mm | 83.5 | -20÷120 °C | -20÷120 °C |
|
