Home Components Brackets Part 398 Medium Adjustable with Head

Part 398 Medium Adjustable with Head

Brackets

Enquire Now

Description

Basic features

Type:	Bracket
Material:	Plastic
Version:	Adjustable
Unit of measure:	Ea
Box:	-

Part 398 Medium Adjustable with Head

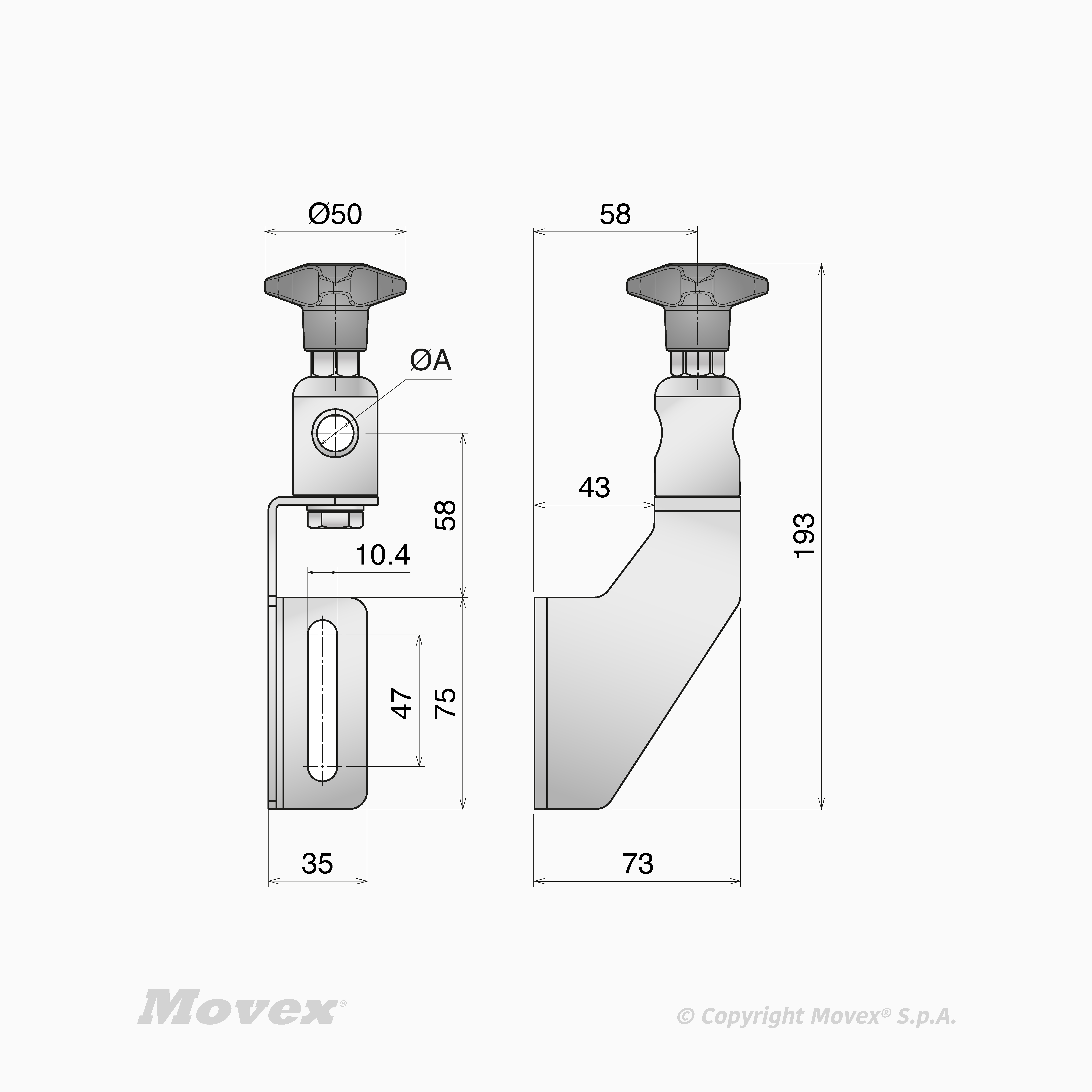

	Part	Material	ØA	B	Knob type	Knob color	Temperature range dry	Temperature range wet
Code									Actions
P39860	P398	Support: Stainless steel AISI 304 ; Knob: PA+nickel plated brass	12	10.4 mm	Plastic	Black	-20÷120 °C	-20÷120 °C
P39860HB	P398	Support: Stainless steel AISI 304 ; Knob: PA+nickel plated brass	12	10.4 mm	Plastic	Hygienic blue	-20÷120 °C	-20÷120 °C
P39861	P398	Support: Stainless steel AISI 304 ; Knob: PA+nickel plated brass	16	10.4 mm	Plastic	Black	-20÷120 °C	-20÷120 °C
P39861HB	P398	Support: Stainless steel AISI 304 ; Knob: PA+nickel plated brass	16	10.4 mm	Plastic	Hygienic blue	-20÷120 °C	-20÷120 °C
P39862	P398	Support: Stainless steel AISI 304 ; Knob: PA+nickel plated brass	14	10.4 mm	Plastic	Black	-20÷120 °C	-20÷120 °C
P39862HB	P398	Support: Stainless steel AISI 304 ; Knob: PA+nickel plated brass	14	10.4 mm	Plastic	Hygienic blue	-20÷120 °C	-20÷120 °C
