Part 383
Knob-handle-hinge
Description
Basic features
| Type: | Hinge |
|---|---|
| Material: | Plastic |
| Unit of measure: | Ea |
| Box: | - |
Part 383

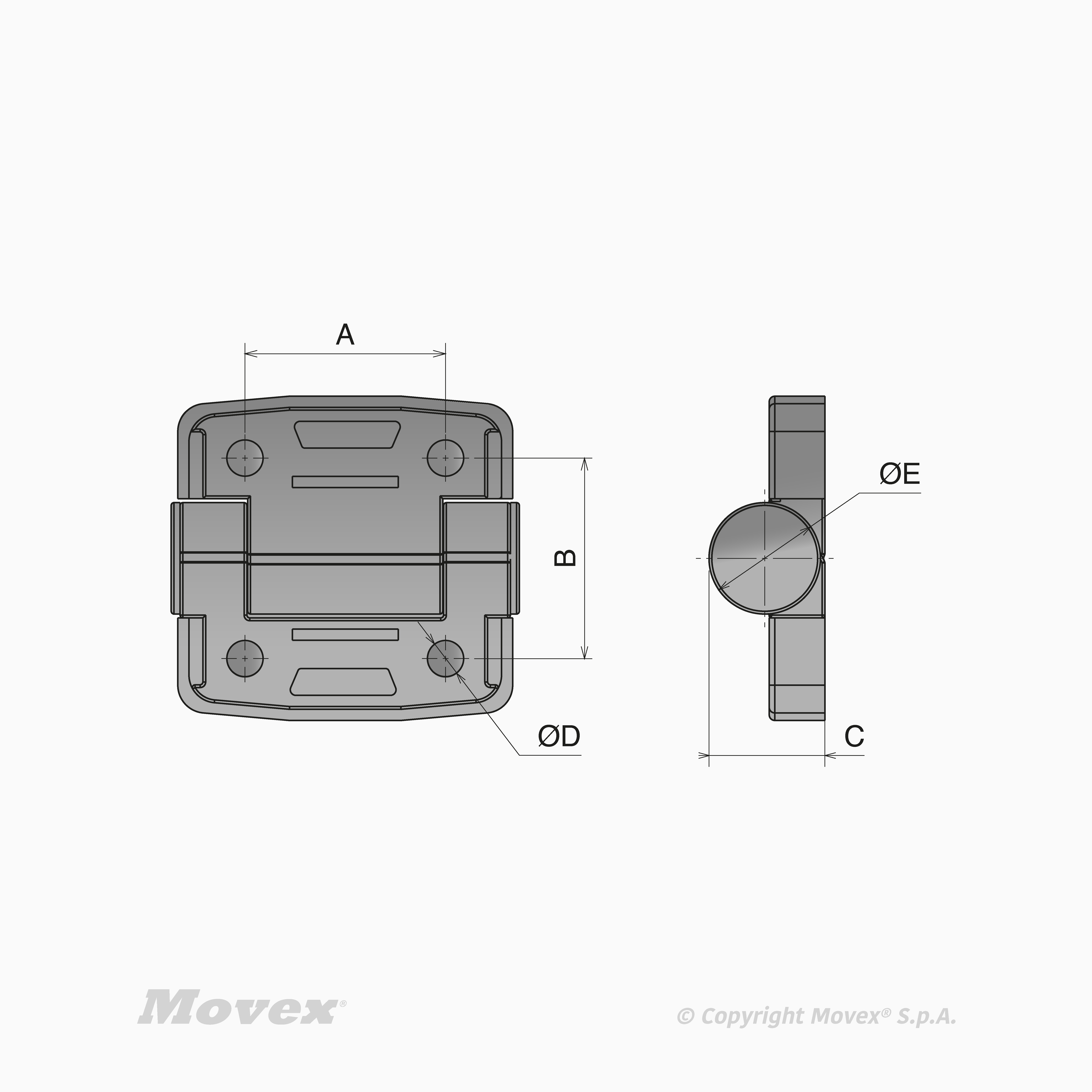

| Part | Material | A | B | D | E | C | F | G | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P38301 | P383 | Reinforced polyamide | 24 mm | 25 mm | 4,5 mm | 14 mm | 14.5 mm | 44,6 mm | 41 mm | -20÷120 °C | -20÷120 °C | Pin material: Stainless steel |
|
| P38302 | P383 | Reinforced polyamide | 36 mm | 36 mm | 6,5 mm | 20 mm | 20.8 mm | 62,5 mm | 58 mm | -20÷120 °C | -20÷120 °C | Pin material: Stainless steel |
|
