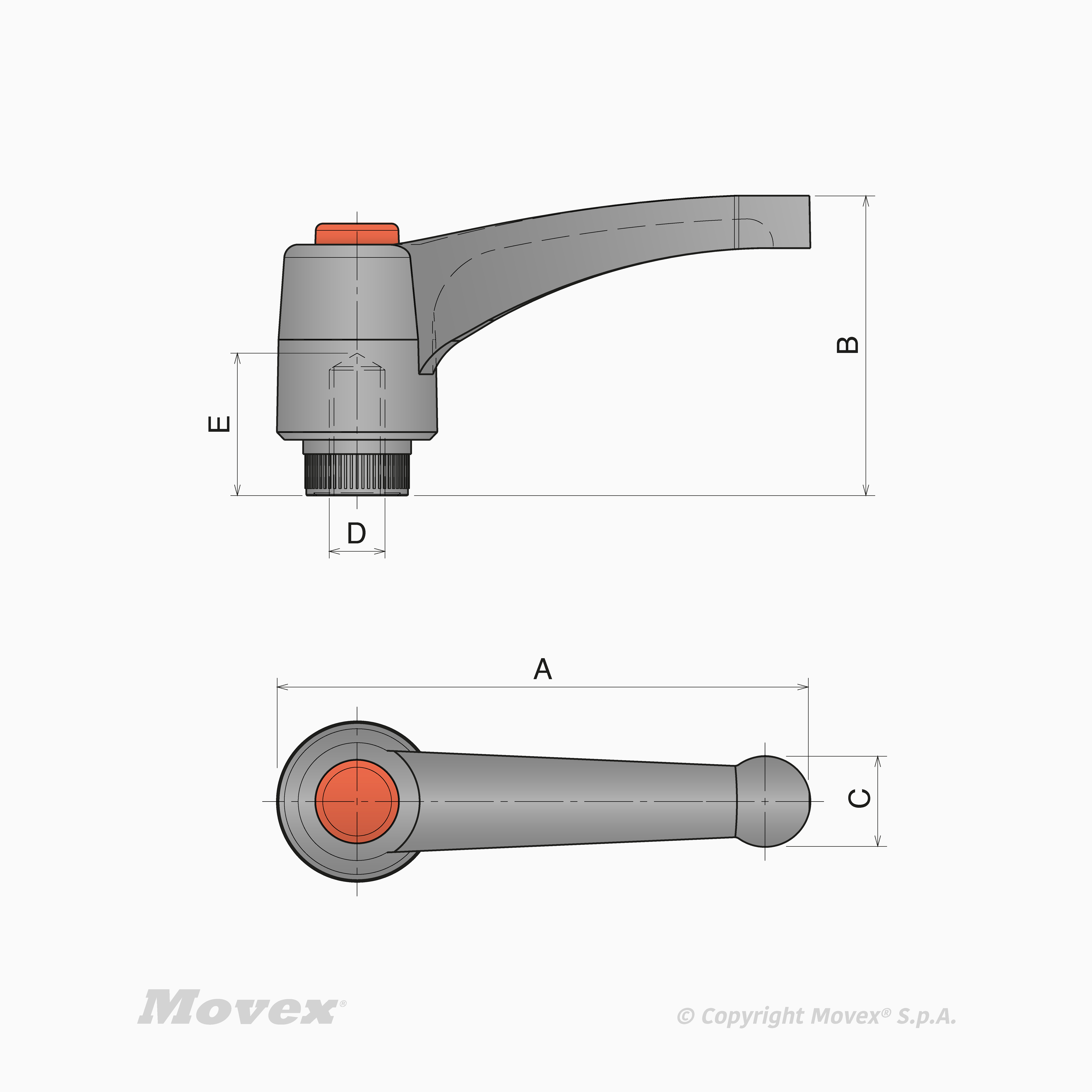

Part 374

Part 374

	Part	Material	A	B	D	Color	E	Threaded bush material	C	Temperature range dry	Temperature range wet	Supplementary informations
Code	All P374	All Reinforced polyamide	All 51 mm 63 mm 76,5 mm 93,5 mm	All 33 mm 41 mm 43 mm 54 mm	All M10 M12 M5 M6 M8	All Black	All 12 mm 18 mm 22 mm	All Brass	All 12 mm 13 mm 15.5 mm 9 mm	All -20÷120 °C	All -20÷120 °C	All Button color: Red	Actions
P37401	P374	Reinforced polyamide	76,5 mm	43 mm	M8	Black	18 mm	Brass	13 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37402	P374	Reinforced polyamide	93,5 mm	54 mm	M10	Black	22 mm	Brass	15.5 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37403	P374	Reinforced polyamide	51 mm	33 mm	M5	Black	12 mm	Brass	9 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37404	P374	Reinforced polyamide	51 mm	33 mm	M6	Black	12 mm	Brass	9 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37405	P374	Reinforced polyamide	63 mm	41 mm	M6	Black	18 mm	Brass	12 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37406	P374	Reinforced polyamide	63 mm	41 mm	M8	Black	18 mm	Brass	12 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37407	P374	Reinforced polyamide	63 mm	41 mm	M10	Black	18 mm	Brass	12 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37408	P374	Reinforced polyamide	93,5 mm	54 mm	M12	Black	22 mm	Brass	15.5 mm	-20÷120 °C	-20÷120 °C	Button color: Red
P37409	P374	Reinforced polyamide	76,5 mm	43 mm	M10	Black	18 mm	Brass	13 mm	-20÷120 °C	-20÷120 °C	Button color: Red

•
