Part 305
Brackets
Description
Basic features
| Type: | Bracket |
|---|---|
| Material: | Plastic |
| Version: | Fixed |
| Unit of measure: | Ea |
| Box: | 12 |
Part 305

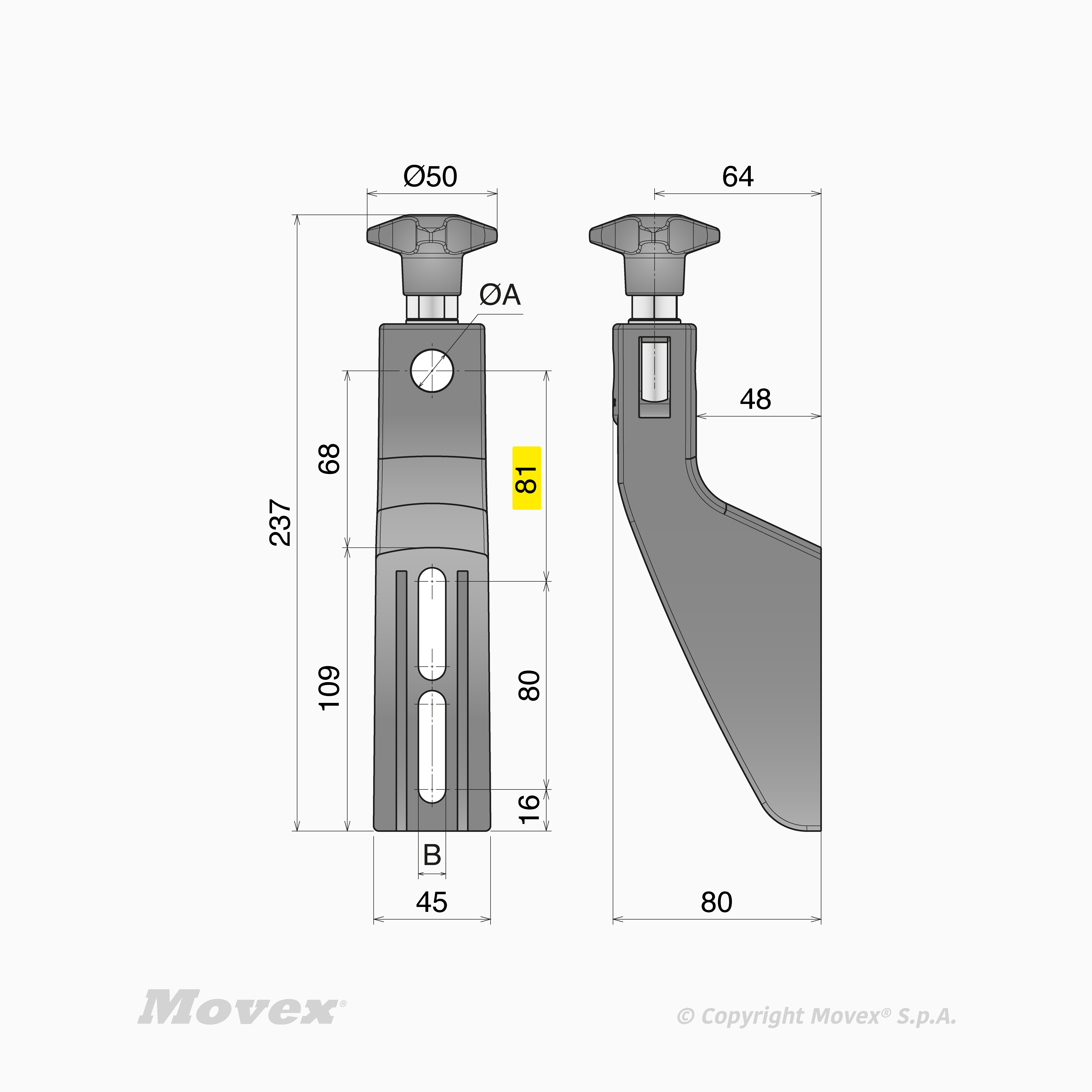

| Part | Material | ØA | B | Knob type | Knob color | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P30501 | P305 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 12 | 9 mm | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30502 | P305 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 16 | 9 mm | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30503 | P305 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 12 | 10.5 mm | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30504 | P305 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 16 | 10.5 mm | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30505 | P305 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 14 | 9 mm | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30506 | P305 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 14 | 10.5 mm | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
