Part 302
Brackets
Description
Basic features
| Type: | Bracket |
|---|---|
| Material: | Plastic |
| Version: | Fixed |
| Unit of measure: | Ea |
| Box: | 12 |

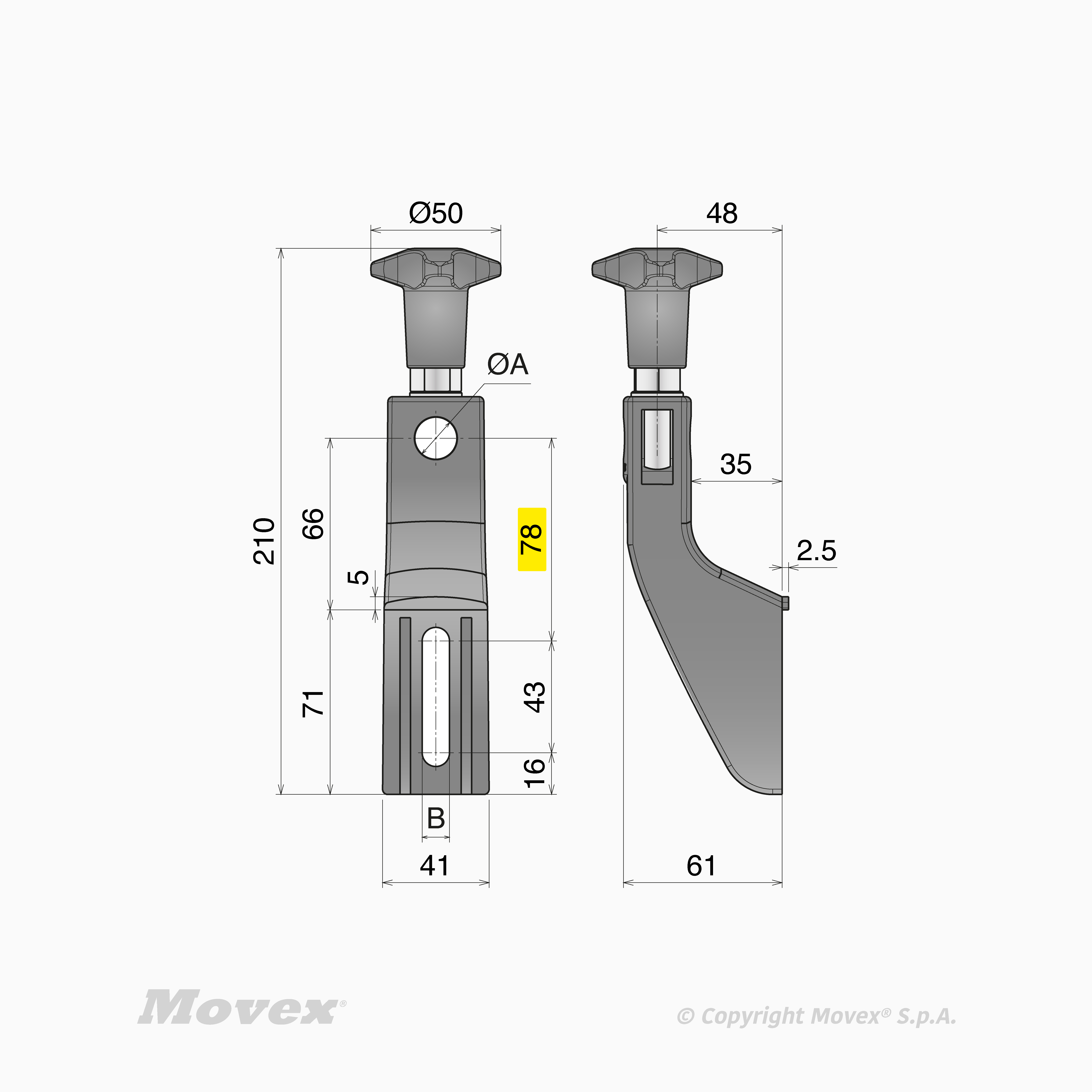

Part 302
| Part | Material | ØA | B | Color | Knob type | Knob color | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P30201 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 12 | 9 mm | Black | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30202 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 16 | 9 mm | Black | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30203 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 12 | 10.5 mm | Black | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30204 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 16 | 10.5 mm | Black | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30205 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 14 | 9 mm | Black | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30206 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 14 | 10.5 mm | Black | Plastic | Black | -20÷120 °C | -20÷120 °C |
|
| P30251 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 12 | 9 mm | Hygienic blue | Plastic | Hygienic blue | -20÷120 °C | -20÷120 °C |
|
| P30252 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 16 | 9 mm | Hygienic blue | Plastic | Hygienic blue | -20÷120 °C | -20÷120 °C |
|
| P30253 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 12 | 10.5 mm | Hygienic blue | Plastic | Hygienic blue | -20÷120 °C | -20÷120 °C |
|
| P30254 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 16 | 10.5 mm | Hygienic blue | Plastic | Hygienic blue | -20÷120 °C | -20÷120 °C |
|
| P30255 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 14 | 9 mm | Hygienic blue | Plastic | Hygienic blue | -20÷120 °C | -20÷120 °C |
|
| P30256 | P302 | Support: Reinforced PA; Knob: Reinforced PA + nickel plated brass; Eyebolt: Stainless steel | 14 | 10.5 mm | Hygienic blue | Plastic | Hygienic blue | -20÷120 °C | -20÷120 °C |
|
