Part 232
Return rollers & Sliding Shoe
Description
Basic features
| Type: | Flanged |
|---|---|
| Outer diameter: | 68 |
| Unit of measure: | Ea |

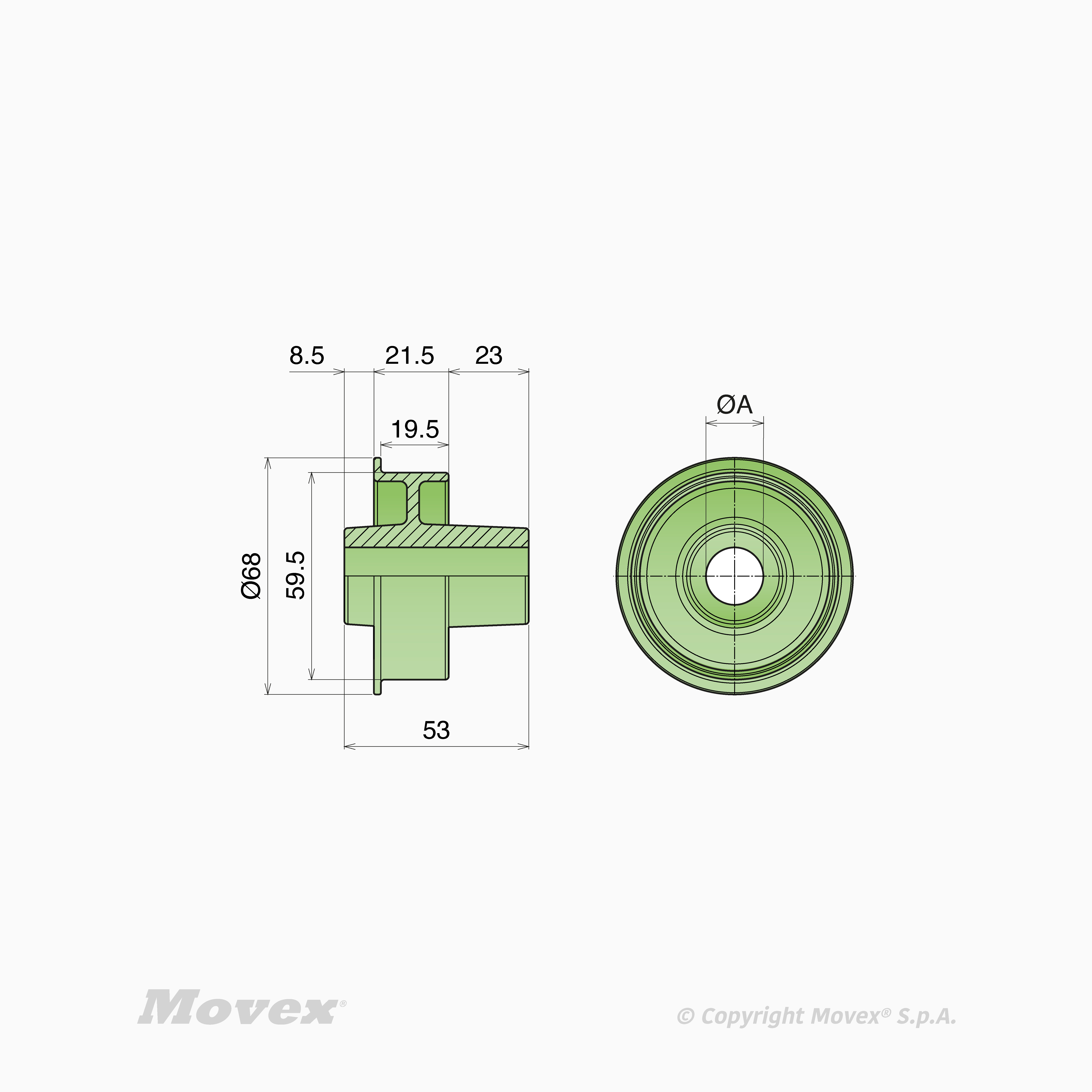

Part 232
Bore |
Part | Box | L | Roller material | Outer diameter | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P23201 | 15 mm | P232 | 18 | 53 mm | PE - Polyethylene | 68 | -40÷80 °C | -40÷80 °C |
|
| P23202 | 16 mm | P232 | 18 | 53 mm | PE - Polyethylene | 68 | -40÷80 °C | -40÷80 °C |
|
| P23203 | 18 mm | P232 | 18 | 53 mm | PE - Polyethylene | 68 | -40÷80 °C | -40÷80 °C |
|
| P23204 | 20 mm | P232 | 18 | 53 mm | PE - Polyethylene | 68 | -40÷80 °C | -40÷80 °C |
|
