Part 215

Part 215

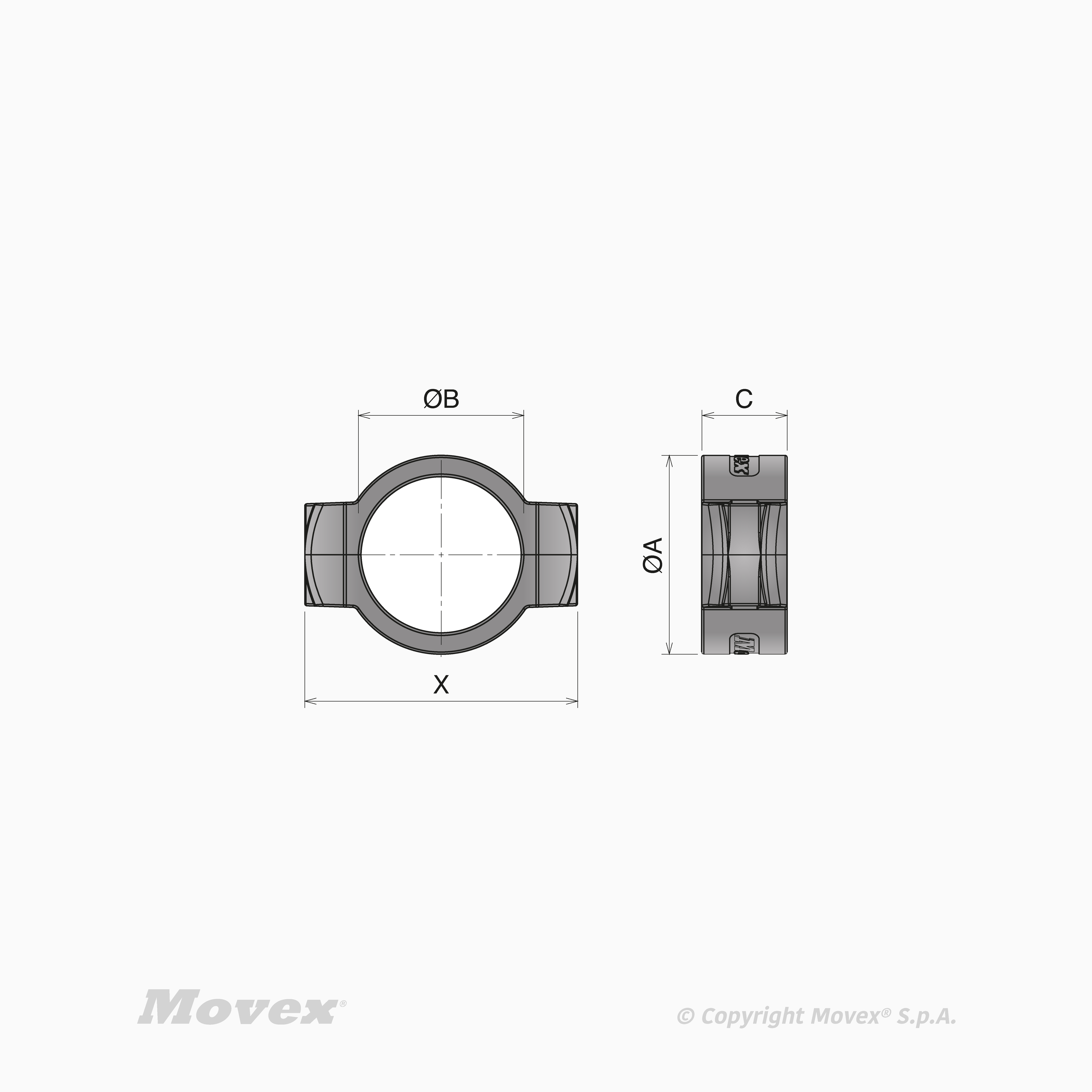

	Bore	Part	Box	A	C	X	Mass	Temperature range dry	Temperature range wet
Code	All 12 mm 14 mm 16 mm 18 mm 20 mm 25 mm 30 mm 35 mm 40 mm	All P215	All 12 24	All 20 mm 22 mm 24 mm 26 mm 28 mm 32 mm 38 mm 43 mm 48 mm	All 12 mm 14 mm 16 mm 18 mm	All 29.5 mm 31.5 mm 37 mm 42 mm 46 mm 51 mm 57 mm 64 mm	All 0.01 kg 0.012 kg 0.013 kg 0.02 kg 0.022 kg 0.026 kg	All -20÷120 °C	All -20÷120 °C	Actions
P21501	12 mm	P215	24	20 mm	12 mm	29.5 mm	0.01 kg	-20÷120 °C	-20÷120 °C
P21502	14 mm	P215	24	22 mm	12 mm	31.5 mm	0.01 kg	-20÷120 °C	-20÷120 °C
P21503	18 mm	P215	24	26 mm	14 mm	42 mm	0.012 kg	-20÷120 °C	-20÷120 °C
P21504	20 mm	P215	24	28 mm	14 mm	42 mm	0.012 kg	-20÷120 °C	-20÷120 °C
P21505	25 mm	P215	24	32 mm	14 mm	46 mm	0.013 kg	-20÷120 °C	-20÷120 °C
P21506	30 mm	P215	24	38 mm	16 mm	51 mm	0.02 kg	-20÷120 °C	-20÷120 °C
P21507	35 mm	P215	12	43 mm	16 mm	57 mm	0.022 kg	-20÷120 °C	-20÷120 °C
P21508	40 mm	P215	12	48 mm	18 mm	64 mm	0.026 kg	-20÷120 °C	-20÷120 °C
P21509	16 mm	P215	24	24 mm	12 mm	37 mm	0.01 kg	-20÷120 °C	-20÷120 °C

•
