Part 207
Return rollers & Sliding Shoe
Description
Basic features
| Type: | Single Flange |
|---|---|
| Outer diameter: | 80 |
| Unit of measure: | Ea |

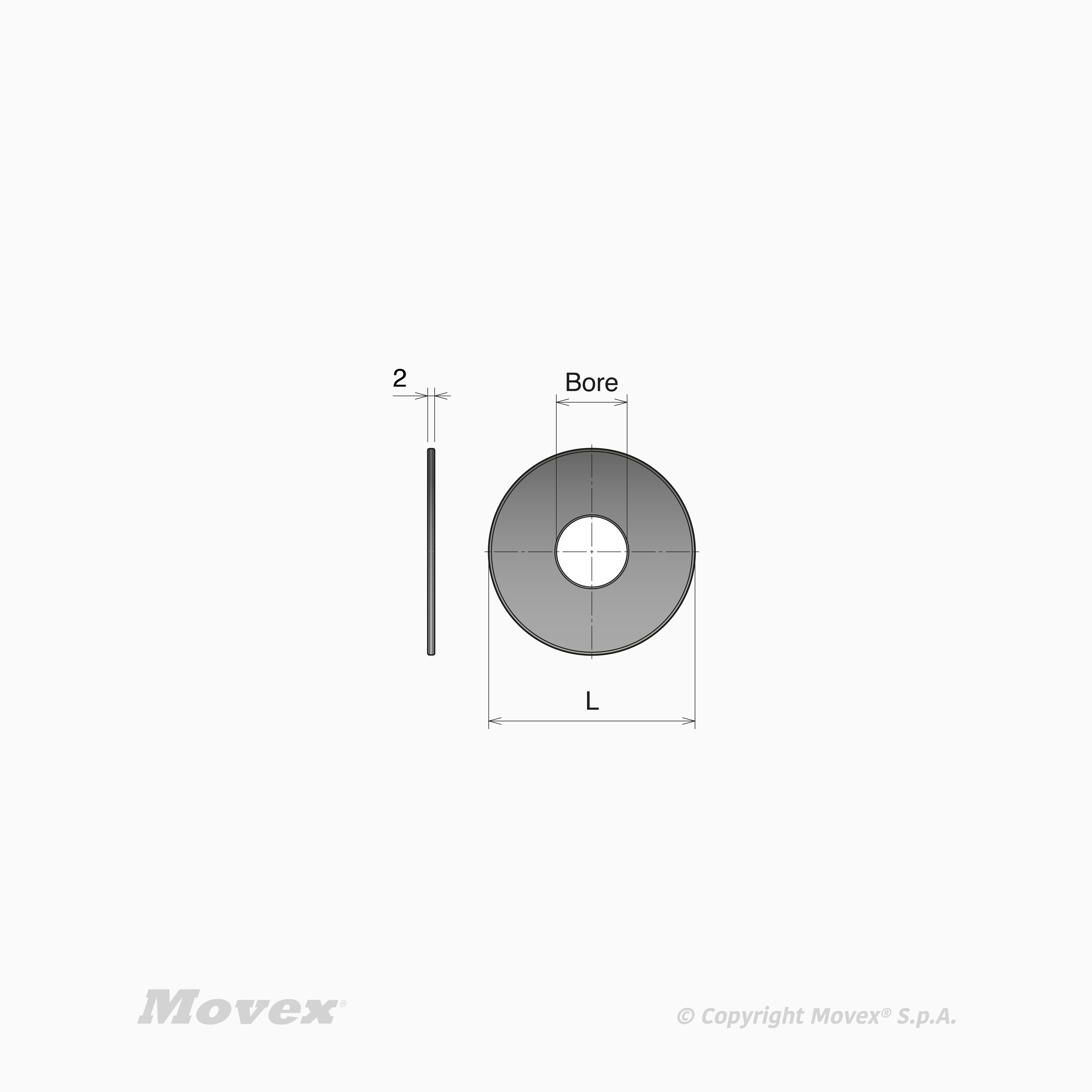

Part 207
Bore |
Part | Box | L | Roller material | Outer diameter | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||
| P20701 | 16 mm | P207 | 48 | 2 mm | PA - Polyamide | 60 | -40÷80 °C | -40÷80 °C |
|
| P20702 | 18 mm | P207 | 48 | 2 mm | PA - Polyamide | 60 | -40÷80 °C | -40÷80 °C |
|
| P20703 | 20 mm | P207 | 48 | 2 mm | PA - Polyamide | 60 | -40÷80 °C | -40÷80 °C |
|
| P20704 | 16 mm | P207 | 48 | 2 mm | PA - Polyamide | 70 | -40÷80 °C | -40÷80 °C |
|
| P20705 | 18 mm | P207 | 48 | 2 mm | PA - Polyamide | 70 | -40÷80 °C | -40÷80 °C |
|
| P20706 | 20 mm | P207 | 48 | 2 mm | PA - Polyamide | 70 | -40÷80 °C | -40÷80 °C |
|
| P20707 | 16 mm | P207 | 48 | 2 mm | PA - Polyamide | 80 | -40÷80 °C | -40÷80 °C |
|
| P20708 | 18 mm | P207 | 48 | 2 mm | PA - Polyamide | 80 | -40÷80 °C | -40÷80 °C |
|
| P20709 | 20 mm | P207 | 48 | 2 mm | PA - Polyamide | 80 | -40÷80 °C | -40÷80 °C |
|
| P20712 | 16 mm | P207 | 48 | 2 mm | PA - Polyamide | 50 | -40÷80 °C | -40÷80 °C |
|
| P20713 | 18 mm | P207 | 48 | 2 mm | PA - Polyamide | 50 | -40÷80 °C | -40÷80 °C |
|
| P20714 | 20 mm | P207 | 48 | 2 mm | PA - Polyamide | 50 | -40÷80 °C | -40÷80 °C |
|
| P20719 | 12 mm | P207 | 48 | 2 mm | PA - Polyamide | 50 | -40÷80 °C | -40÷80 °C |
|
| P20720 | 12 mm | P207 | 48 | 2 mm | PA - Polyamide | 60 | -40÷80 °C | -40÷80 °C |
|
| P20721 | 12 mm | P207 | 48 | 2 mm | PA - Polyamide | 70 | -40÷80 °C | -40÷80 °C |
|
| P20722 | 12 mm | P207 | 48 | 2 mm | PA - Polyamide | 80 | -40÷80 °C | -40÷80 °C |
|
