PA11 - PA12

Position indicators

positive drive, technopolymer

Enquire Now

Description

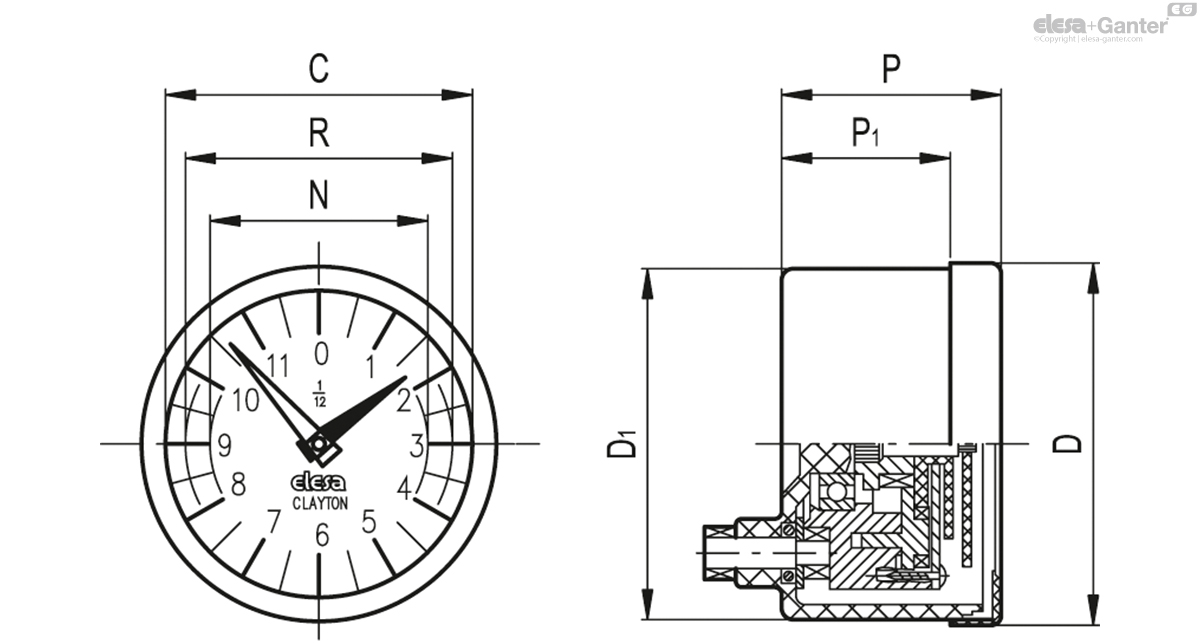

Main specifications

Case

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Moulded-in spindle.

Bezel

Technopolymer. Moulded over the window.

Window

Transparent polyamide based (PA-T) technopolymer (practically unbreakable).

Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).

Dial

Natural matte anodised aluminium.

Clockwise (D) or anti-clockwise (S) graduation, black colour.

Reading

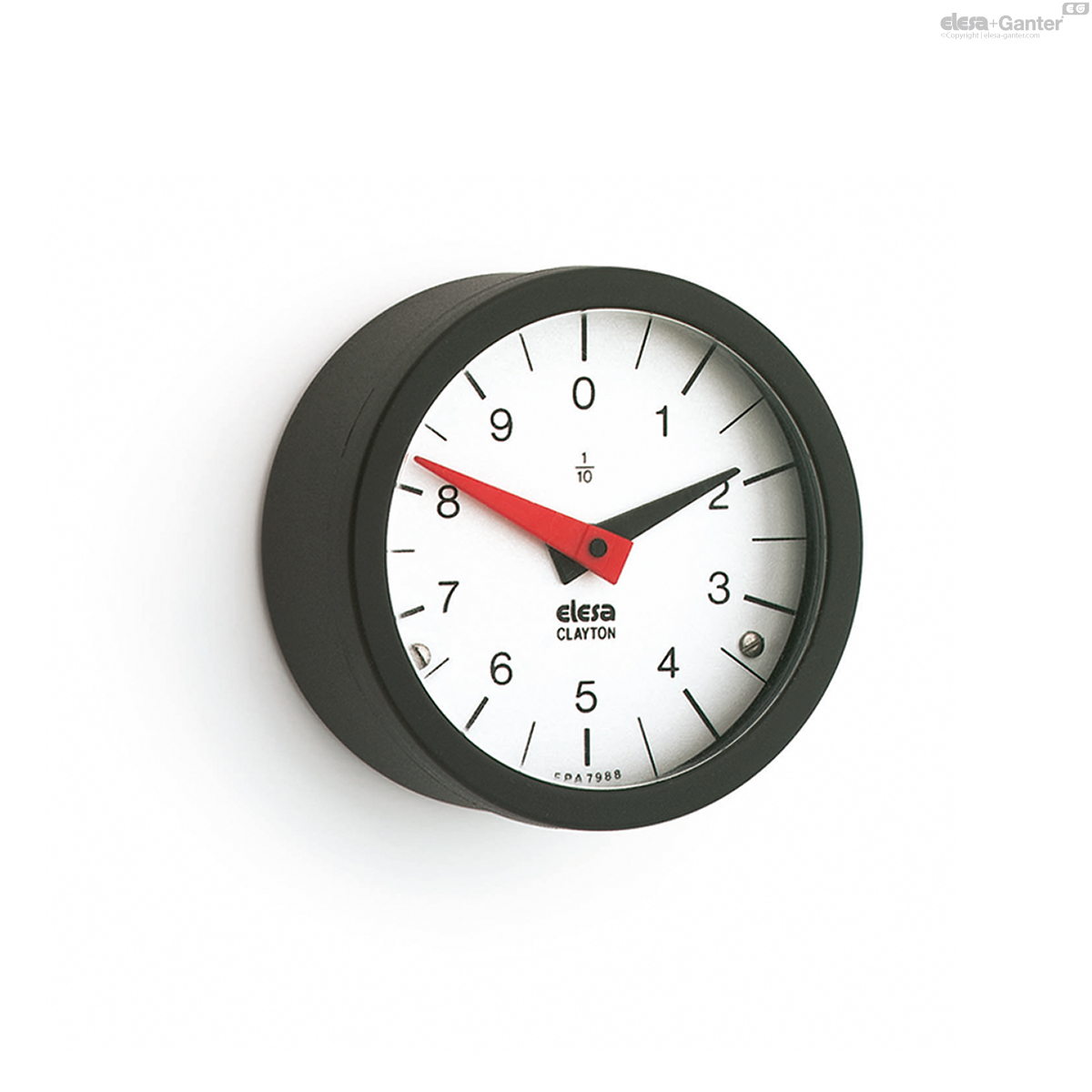

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

Ratio

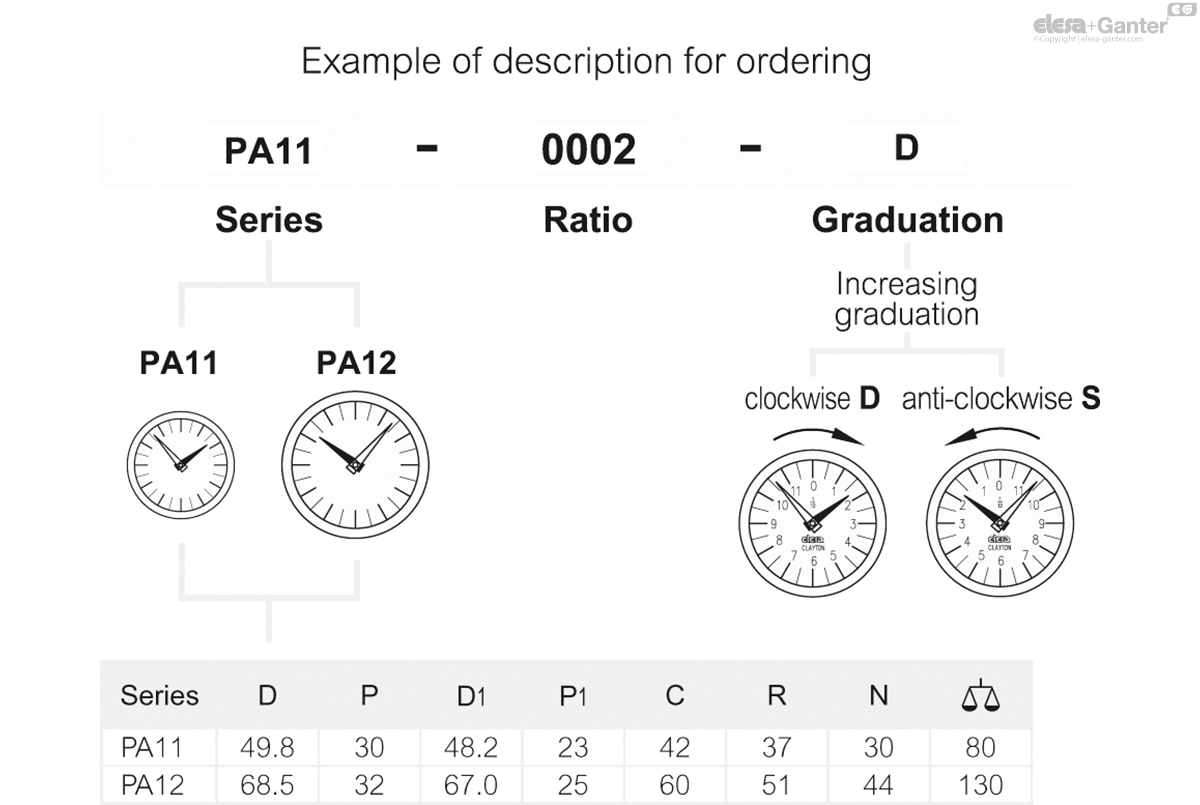

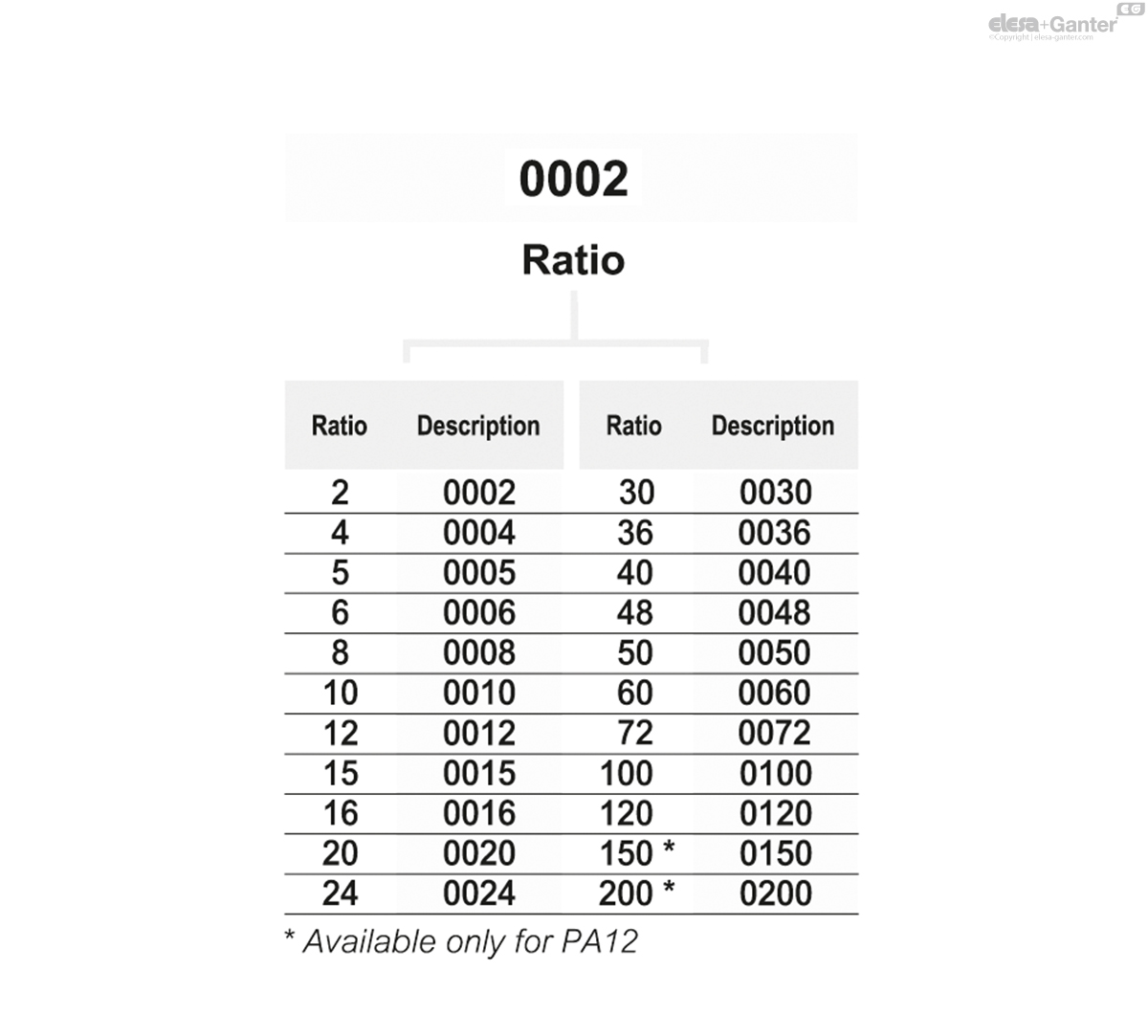

To choose the ratio see 'Positive drive indicators introduction'-.

IP protection

The ultrasonic welding of the window to the case guarantees the complete sealing with IP 65 protection class, see EN 60529 table.

General information

Features and applications

Digital-analogue positive drive indicators are suitable with spindles in any position.

To choose the handwheel see the table 'Handwheels/knobs-possible assembly with indicators'-.

Special executions on request

Special dial with logo or customized graduations
Special ratios
Single pointer

		Series	Ratio	Increasing numbering
Code	Description					Actions
CE.74001	PA11-0002-D	PA11	2	D	110
CE.74002	PA11-0002-S	PA11	2	S	79
CE.74005	PA11-0004-D	PA11	4	D	80
CE.74006	PA11-0004-S	PA11	4	S	80
CE.74008	PA11-0005-D	PA11	5	D	80
CE.74009	PA11-0005-S	PA11	5	S	80
CE.74011	PA11-0006-D	PA11	6	D	80
CE.74012	PA11-0006-S	PA11	6	S	80
CE.74015	PA11-0008-D	PA11	8	D	80
CE.74016	PA11-0008-S	PA11	8	S	80
CE.74021	PA11-0010-D	PA11	10	D	111
CE.74022	PA11-0010-S	PA11	10	S	110
CE.74031	PA11-0012-D	PA11	12	D	111
CE.74032	PA11-0012-S	PA11	12	S	112
CE.74035	PA11-0015-D	PA11	15	D	77
CE.74036	PA11-0015-S	PA11	15	S	80
CE.74041	PA11-0016-D	PA11	16	D	77
CE.74042	PA11-0016-S	PA11	16	S	80
CE.74053	PA11-0020-D	PA11	20	D	80
CE.74054	PA11-0020-S	PA11	20	S	12
CE.74061	PA11-0024-D	PA11	24	D	80
CE.74062	PA11-0024-S	PA11	24	S	80
CE.74069	PA11-0030-D	PA11	30	D	80
CE.74070	PA11-0030-S	PA11	30	S	80
CE.74075	PA11-0036-D	PA11	36	D	80
CE.74076	PA11-0036-S	PA11	36	S	80
CE.74081	PA11-0040-D	PA11	40	D	80
CE.74082	PA11-0040-S	PA11	40	S	80
CE.74089	PA11-0048-D	PA11	48	D	80
CE.74090	PA11-0048-S	PA11	48	S	80
CE.74091	PA11-0050-D	PA11	50	D	80
CE.74092	PA11-0050-S	PA11	50	S	80
CE.74101	PA11-0060-D	PA11	60	D	80
CE.74102	PA11-0060-S	PA11	60	S	80
CE.74111	PA11-0072-D	PA11	72	D	80
CE.74112	PA11-0072-S	PA11	72	S	80
CE.74121	PA11-0100-D	PA11	100	D	80
CE.74122	PA11-0100-S	PA11	100	S	80
CE.74131	PA11-0120-D	PA11	120	D	80
CE.74132	PA11-0120-S	PA11	120	S	80
CE.74281	PA12-0002-D	PA12	2	D	130
CE.74282	PA12-0002-S	PA12	2	S	130
CE.74291	PA12-0004-D	PA12	4	D	130
CE.74292	PA12-0004-S	PA12	4	S	130
CE.74295	PA12-0005-D	PA12	5	D	121
CE.74296	PA12-0005-S	PA12	5	S	130
CE.74301	PA12-0006-D	PA12	6	D	121
CE.74302	PA12-0006-S	PA12	6	S	130
CE.74351	PA12-0008-D	PA12	8	D	130
CE.74352	PA12-0008-S	PA12	8	S	130
CE.74401	PA12-0010-D	PA12	10	D	123
CE.74402	PA12-0010-S	PA12	10	S	154
CE.74501	PA12-0012-D	PA12	12	D	152
CE.74502	PA12-0012-S	PA12	12	S	122
CE.74541	PA12-0015-D	PA12	15	D	130
CE.74542	PA12-0015-S	PA12	15	S	130
CE.74551	PA12-0016-D	PA12	16	D	130
CE.74552	PA12-0016-S	PA12	16	S	130
CE.74601	PA12-0020-D	PA12	20	D	156
CE.74602	PA12-0020-S	PA12	20	S	123
CE.74701	PA12-0024-D	PA12	24	D	130
CE.74702	PA12-0024-S	PA12	24	S	130
CE.74801	PA12-0030-D	PA12	30	D	123
CE.74802	PA12-0030-S	PA12	30	S	130
CE.74901	PA12-0036-D	PA12	36	D	120
CE.74902	PA12-0036-S	PA12	36	S	130
CE.74951	PA12-0040-D	PA12	40	D	123
CE.74952	PA12-0040-S	PA12	40	S	130
CE.74959	PA12-0048-D	PA12	48	D	123
CE.74960	PA12-0048-S	PA12	48	S	130
CE.75001	PA12-0050-D	PA12	50	D	124
CE.75002	PA12-0050-S	PA12	50	S	125
CE.75101	PA12-0060-D	PA12	60	D	130
CE.75102	PA12-0060-S	PA12	60	S	130
CE.75201	PA12-0072-D	PA12	72	D	130
CE.75202	PA12-0072-S	PA12	72	S	130
CE.75301	PA12-0100-D	PA12	100	D	130
CE.75302	PA12-0100-S	PA12	100	S	120
CE.75401	PA12-0120-D	PA12	120	D	130
CE.75402	PA12-0120-S	PA12	120	S	130
CE.75501	PA12-0150-D	PA12	150*	D	130
CE.75502	PA12-0150-S	PA12	150*	S	130
CE.75701	PA12-0200-D	PA12	200*	D	130
CE.75702	PA12-0200-S	PA12	200*	S	130
