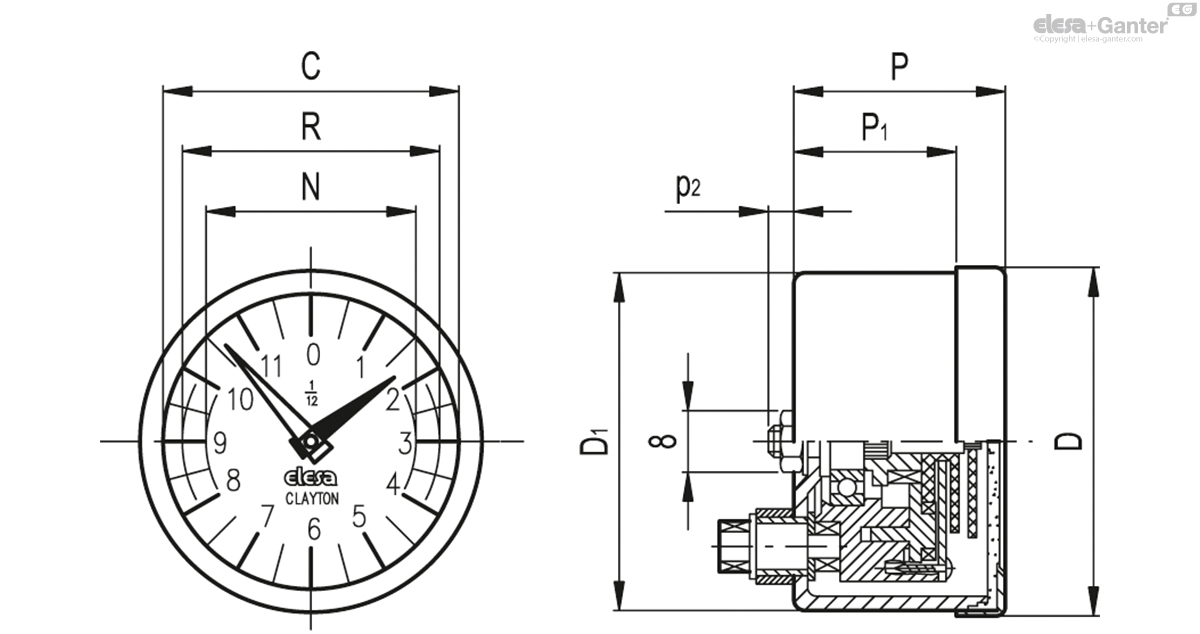

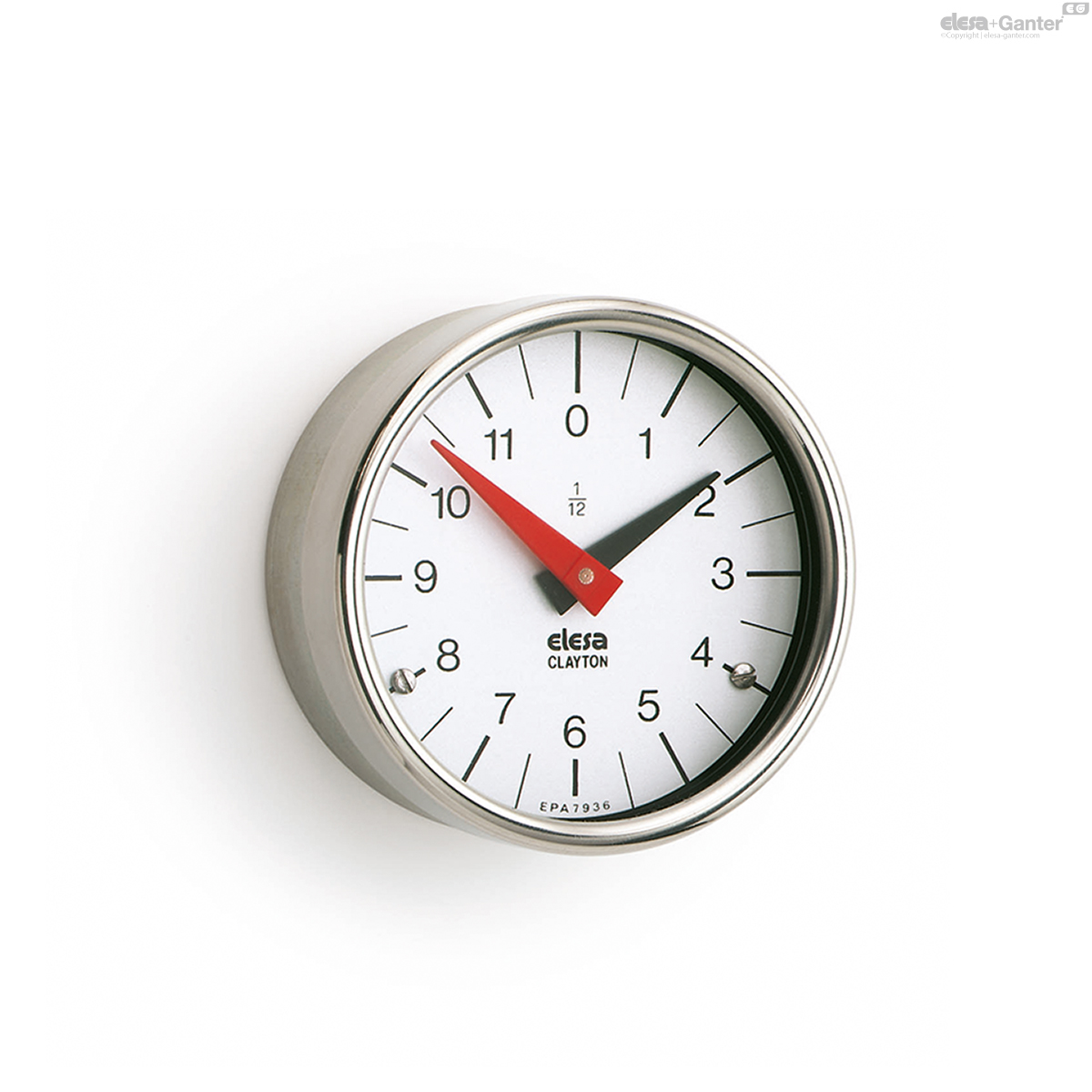

PA01 - PA02 - PA05

Position indicators

positive drive, steel

Enquire Now

Description

Main specifications

Case

Zinc-plated steel.

Bezel

AISI 303 stainless steel.

Window

Glass.

Dial

Natural matte anodised aluminium.

Clockwise (D) or anti-clockwise (S) graduation, black colour.

Reading

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

Ratio

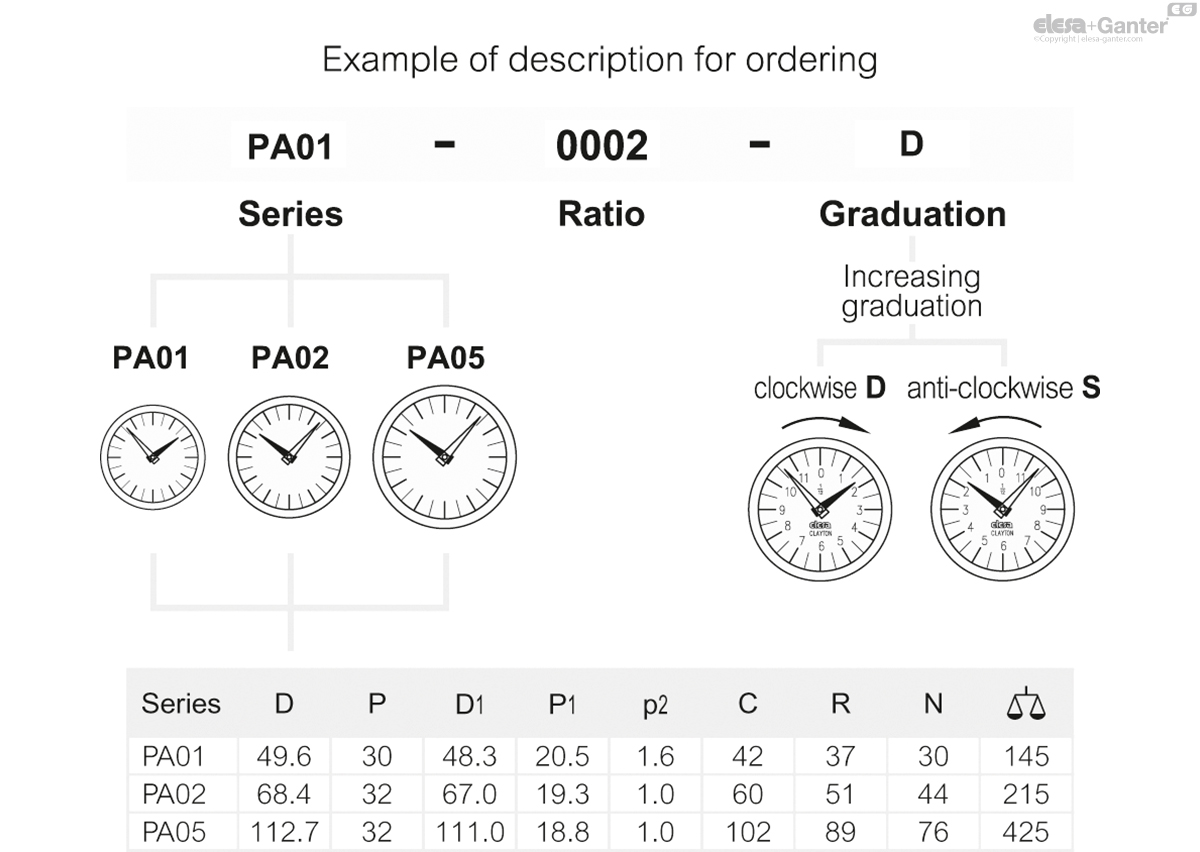

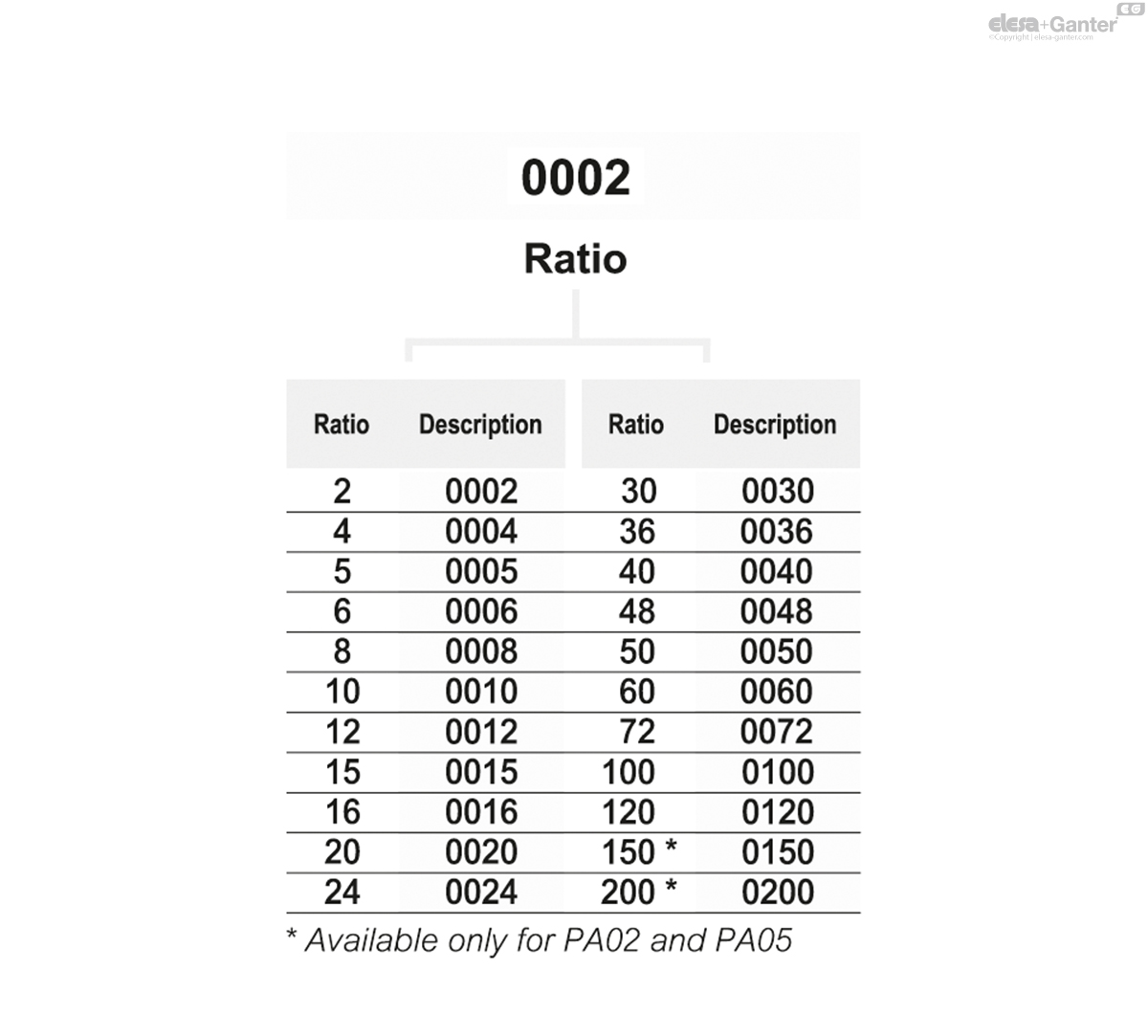

To choose the ratio see 'Positive drive indicators introduction'-.

General information

Features and applications

Digital-analogue positive drive indicators are suitable with spindles in any position.

To choose the handwheel see the table 'Handwheels/knobs-possible assembly with indicators'-.

Special executions on request

Special dial with logo or customized graduations
Special ratios
Single pointer
Window in plexiglass instead of glass.

		Series	Ratio	Increasing numbering
