Description

The P400R series, with plastic baseplate, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a medium-high level of hygiene is required. The compact baseplate and the smooth edges guarantee an excellent cleanability, even in critical conditions and the stainless steel washer ensures complete closure between the spindle and the baseplate. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	80 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

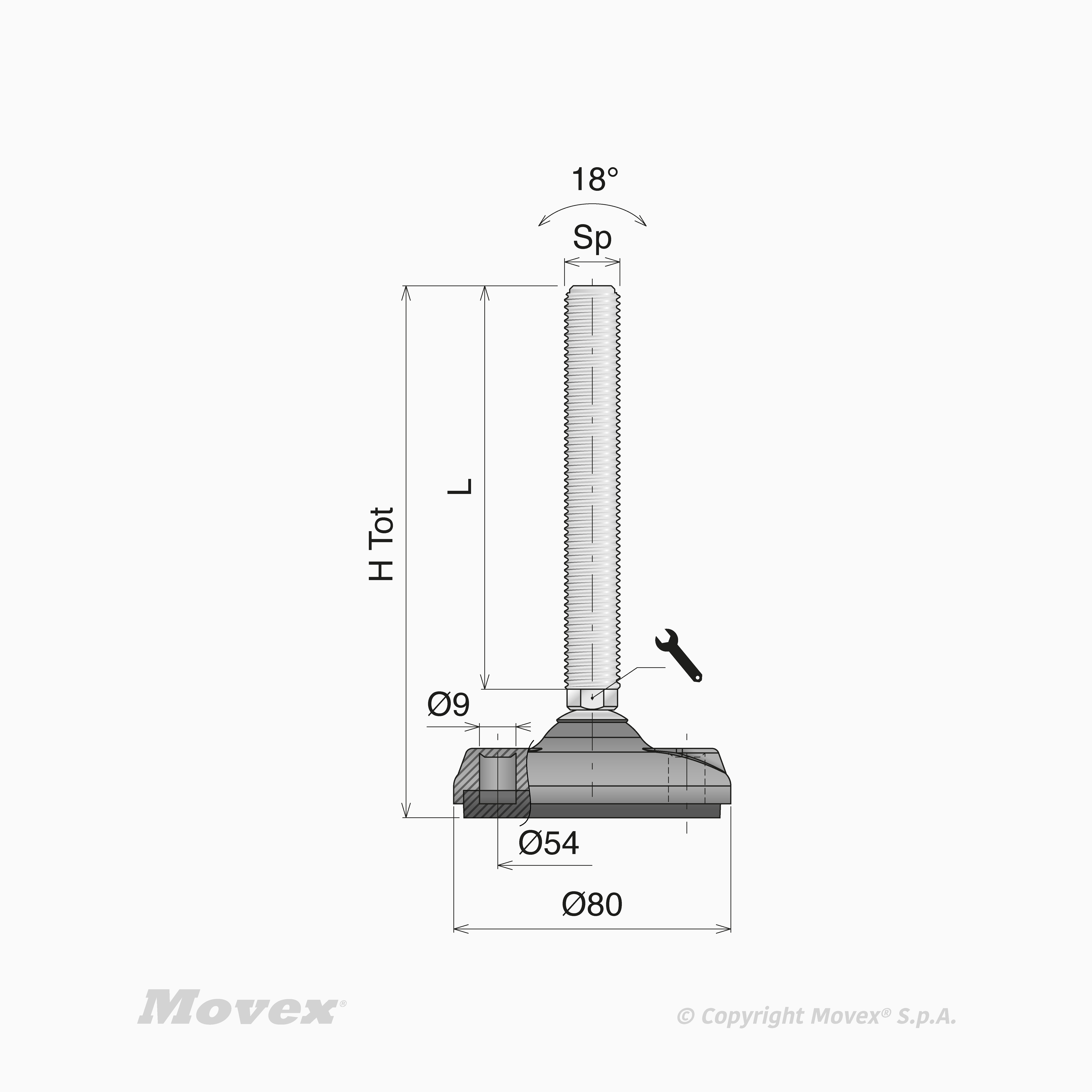

P400R Ø80 2 Fixing point Anti-Slip

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P91001R	67 mm	Standard	Stainless steel	M12	103	Standard	9 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91001ZR	67 mm	Standard	Zinc Plated Steel	M12	103	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91002R	117 mm	Standard	Stainless steel	M12	153	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91002ZR	117 mm	Standard	Zinc Plated Steel	M12	153	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91003R	167 mm	Standard	Stainless steel	M12	203	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91003ZR	167 mm	Standard	Zinc Plated Steel	M12	203	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91101HR	61 mm	Hexagonal	Stainless steel	M16	98	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91101R	61 mm	Standard	Stainless steel	M16	98	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91101ZHR	61 mm	Hexagonal	Zinc Plated Steel	M16	98	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91101ZR	61 mm	Standard	Zinc Plated Steel	M16	98	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91102HR	111 mm	Hexagonal	Stainless steel	M16	148	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91102R	111 mm	Standard	Stainless steel	M16	148	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91102ZHR	111 mm	Hexagonal	Zinc Plated Steel	M16	148	Standard	16 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P91102ZR	111 mm	Standard	Zinc Plated Steel	M16	148	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91103HR	161 mm	Hexagonal	Stainless steel	M16	198	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91103R	161 mm	Standard	Stainless steel	M16	198	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91103ZHR	161 mm	Hexagonal	Zinc Plated Steel	M16	198	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91103ZR	161 mm	Standard	Zinc Plated Steel	M16	198	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91201HR	84 mm	Hexagonal	Stainless steel	M20	123	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91201R	84 mm	Standard	Stainless steel	M20	123	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91201ZHR	84 mm	Hexagonal	Zinc Plated Steel	M20	123	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91201ZR	84 mm	Standard	Zinc Plated Steel	M20	123	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91202HR	134 mm	Hexagonal	Stainless steel	M20	173	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91202R	134 mm	Standard	Stainless steel	M20	173	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91202ZHR	134 mm	Hexagonal	Zinc Plated Steel	M20	173	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91202ZR	134 mm	Standard	Zinc Plated Steel	M20	173	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91203HR	184 mm	Hexagonal	Stainless steel	M20	223	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91203R	184 mm	Standard	Stainless steel	M20	223	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91203ZHR	184 mm	Hexagonal	Zinc Plated Steel	M20	223	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91203ZR	184 mm	Standard	Zinc Plated Steel	M20	223	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
