Description

The P400R series, with plastic baseplate, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a medium-high level of hygiene is required. The compact baseplate and the smooth edges guarantee an excellent cleanability, even in critical conditions and the stainless steel washer ensures complete closure between the spindle and the baseplate. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	80 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

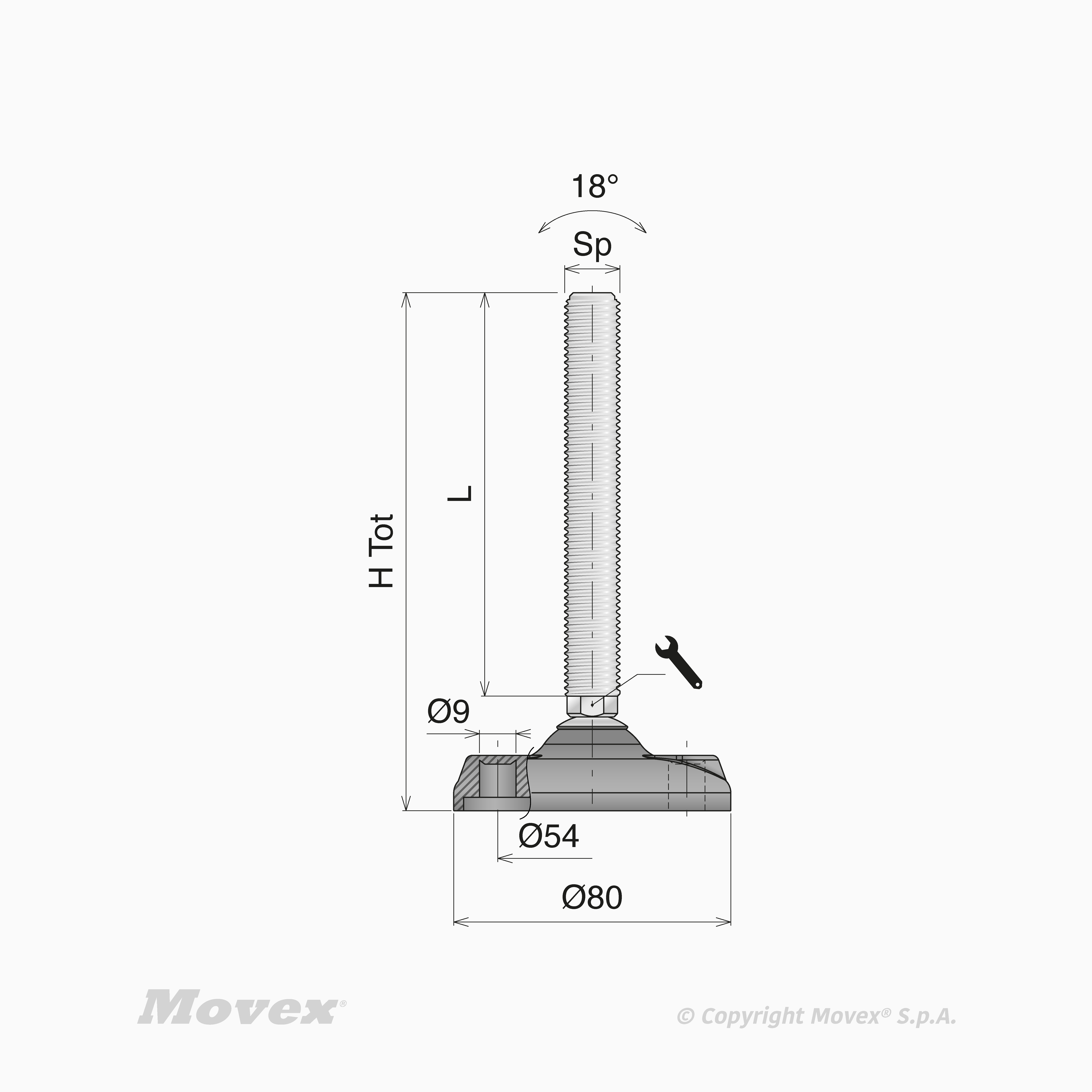

P400R Ø80 2 Fixing point

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P91001	67 mm	Standard	Stainless steel	M12	100	Standard	9 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91001Z	67 mm	Standard	Zinc Plated Steel	M12	100	Standard	9 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P91002	117 mm	Standard	Stainless steel	M12	150	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91002Z	117 mm	Standard	Zinc Plated Steel	M12	150	Standard	9 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P91003	167 mm	Standard	Stainless steel	M12	200	Standard	9 mm	-20÷120 °C	-20÷120 °C
P91003Z	167 mm	Standard	Zinc Plated Steel	M12	200	Standard	9 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91101	61 mm	Standard	Stainless steel	M16	95	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91101H	61 mm	Hexagonal	Stainless steel	M16	95	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91101Z	61 mm	Standard	Zinc Plated Steel	M16	95	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91101ZH	61 mm	Hexagonal	Zinc Plated Steel	M16	95	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91102	111 mm	Standard	Stainless steel	M16	145	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91102H	111 mm	Hexagonal	Stainless steel	M16	145	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91102Z	111 mm	Standard	Zinc Plated Steel	M16	145	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91102ZH	111 mm	Hexagonal	Zinc Plated Steel	M16	145	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91103	161 mm	Standard	Stainless steel	M16	195	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91103H	161 mm	Hexagonal	Stainless steel	M16	195	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91103Z	161 mm	Standard	Zinc Plated Steel	M16	195	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91103ZH	161 mm	Hexagonal	Zinc Plated Steel	M16	195	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91201	84 mm	Standard	Stainless steel	M20	120	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91201H	84 mm	Hexagonal	Stainless steel	M20	120	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91201Z	84 mm	Standard	Zinc Plated Steel	M20	120	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91201ZHY	84 mm	Hexagonal	Zinc Plated Steel	M20	120	Standard	20 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91202	134 mm	Standard	Stainless steel	M20	170	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91202H	134 mm	Hexagonal	Stainless steel	M20	170	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91202Z	134 mm	Standard	Zinc Plated Steel	M20	170	Standard	16 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91202ZHY	134 mm	Hexagonal	Zinc Plated Steel	M20	170	Standard	20 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91203	184 mm	Standard	Stainless steel	M20	220	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91203H	184 mm	Hexagonal	Stainless steel	M20	220	Standard	20 mm Max Load 12000 N	-20÷120 °C	-20÷120 °C
P91203Z	184 mm	Standard	Zinc Plated Steel	M20	220	Standard	16 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91203ZH	184 mm	Hexagonal	Zinc Plated Steel	M20	220	Standard	20 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
