Description

The P400R series, with plastic baseplate, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a medium-high level of hygiene is required. The compact baseplate and the smooth edges guarantee an excellent cleanability, even in critical conditions and the stainless steel washer ensures complete closure between the spindle and the baseplate. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	100 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

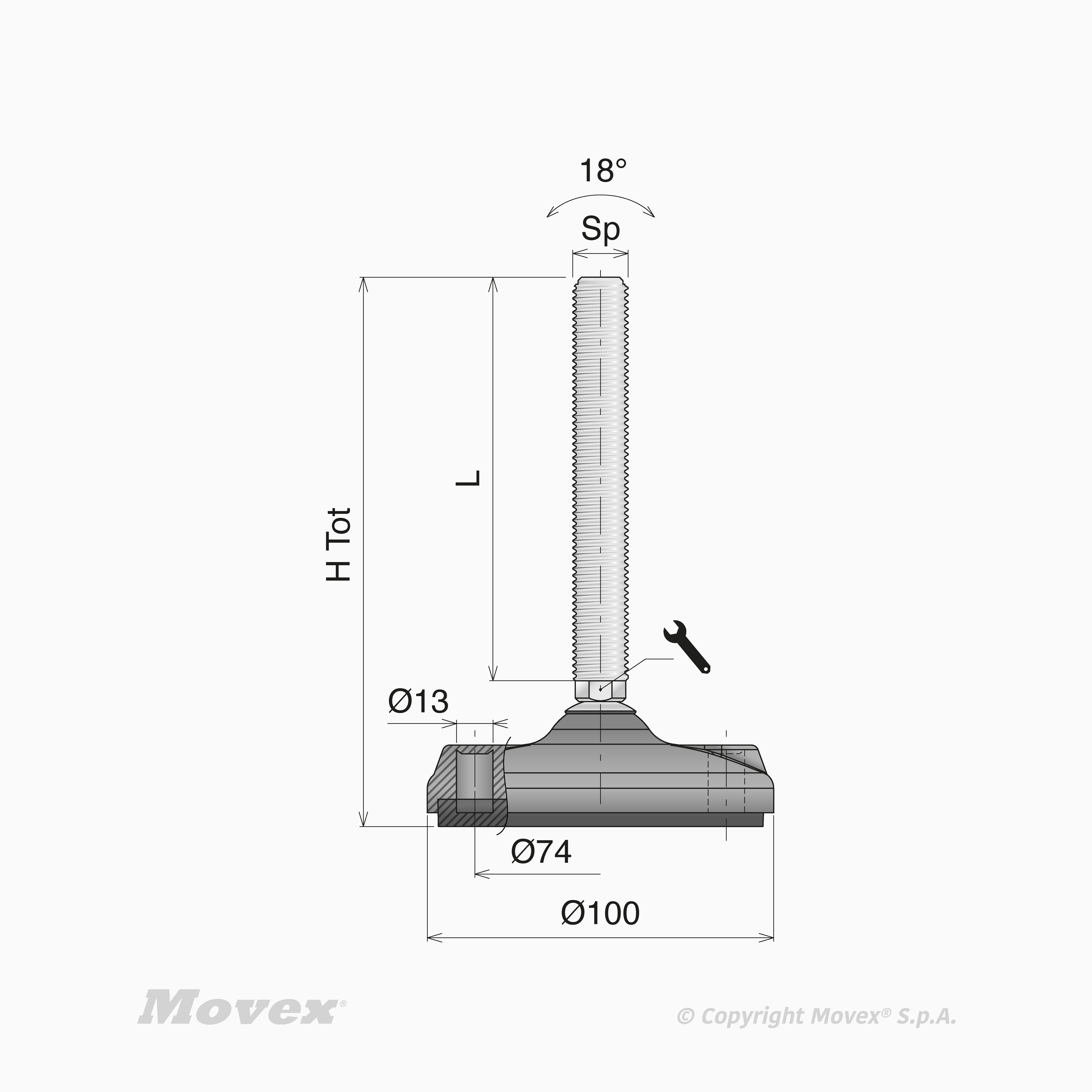

P400R Ø100 2 Fixing point Anti-Slip

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P91301HR	61 mm	Hexagonal	Stainless steel	M16	103	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91301R	61 mm	Standard	Stainless steel	M16	103	Standard	13 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91301ZHR	61 mm	Hexagonal	Zinc Plated Steel	M16	103	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91301ZR	61 mm	Standard	Zinc Plated Steel	M16	103	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91302HR	111 mm	Hexagonal	Stainless steel	M16	153	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91302R	111 mm	Standard	Stainless steel	M16	153	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91302ZHR	111 mm	Hexagonal	Zinc Plated Steel	M16	153	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91302ZR	111 mm	Standard	Zinc Plated Steel	M16	153	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91303HR	161 mm	Hexagonal	Stainless steel	M16	203	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91303R	161 mm	Standard	Stainless steel	M16	203	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91303ZHR	161 mm	Hexagonal	Zinc Plated Steel	M16	203	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91303ZR	161 mm	Standard	Zinc Plated Steel	M16	203	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91401HR	84 mm	Hexagonal	Stainless steel	M20	128	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91401R	84 mm	Standard	Stainless steel	M20	128	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91401ZHR	84 mm	Hexagonal	Zinc Plated Steel	M20	128	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91401ZR	84 mm	Standard	Zinc Plated Steel	M20	128	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91402HR	134 mm	Hexagonal	Stainless steel	M20	178	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91402R	134 mm	Standard	Stainless steel	M20	178	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91402ZHR	134 mm	Hexagonal	Zinc Plated Steel	M20	178	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91402ZR	134 mm	Standard	Zinc Plated Steel	M20	178	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91403HR	184 mm	Hexagonal	Stainless steel	M20	228	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91403R	184 mm	Standard	Stainless steel	M20	228	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91403ZHR	184 mm	Hexagonal	Zinc Plated Steel	M20	228	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91403ZR	184 mm	Standard	Zinc Plated Steel	M20	228	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91501R	83 mm	Standard	Stainless steel	M24	128	Standard	19 mm	-20÷120 °C	-20÷120 °C
P91501ZR	83 mm	Standard	Zinc Plated Steel	M24	128	Standard	19 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91502R	133 mm	Standard	Stainless steel	M24	178	Standard	19 mm	-20÷120 °C	-20÷120 °C
P91502ZR	133 mm	Standard	Zinc Plated Steel	M24	178	Standard	19 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
P91503R	183 mm	Standard	Stainless steel	M24	228	Standard	19 mm	-20÷120 °C	-20÷120 °C
P91503ZR	183 mm	Standard	Zinc Plated Steel	M24	228	Standard	19 mm Max Load 16000 N	-20÷120 °C	-20÷120 °C
