Home Leveling feet P400R P400R Ø100 2 Fixing point

P400R Ø100 2 Fixing point

P400R

Enquire Now

Description

The P400R series, with plastic baseplate, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a medium-high level of hygiene is required. The compact baseplate and the smooth edges guarantee an excellent cleanability, even in critical conditions and the stainless steel washer ensures complete closure between the spindle and the baseplate. Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 500 N.

Basic features

Design:	Standard
Base material:	Plastic
Diameter:	100 mm
Max Load:	10000÷19999 N
Fixing point:	2
Anti-slip:	No
Unit of measure:	Ea
Box:	-

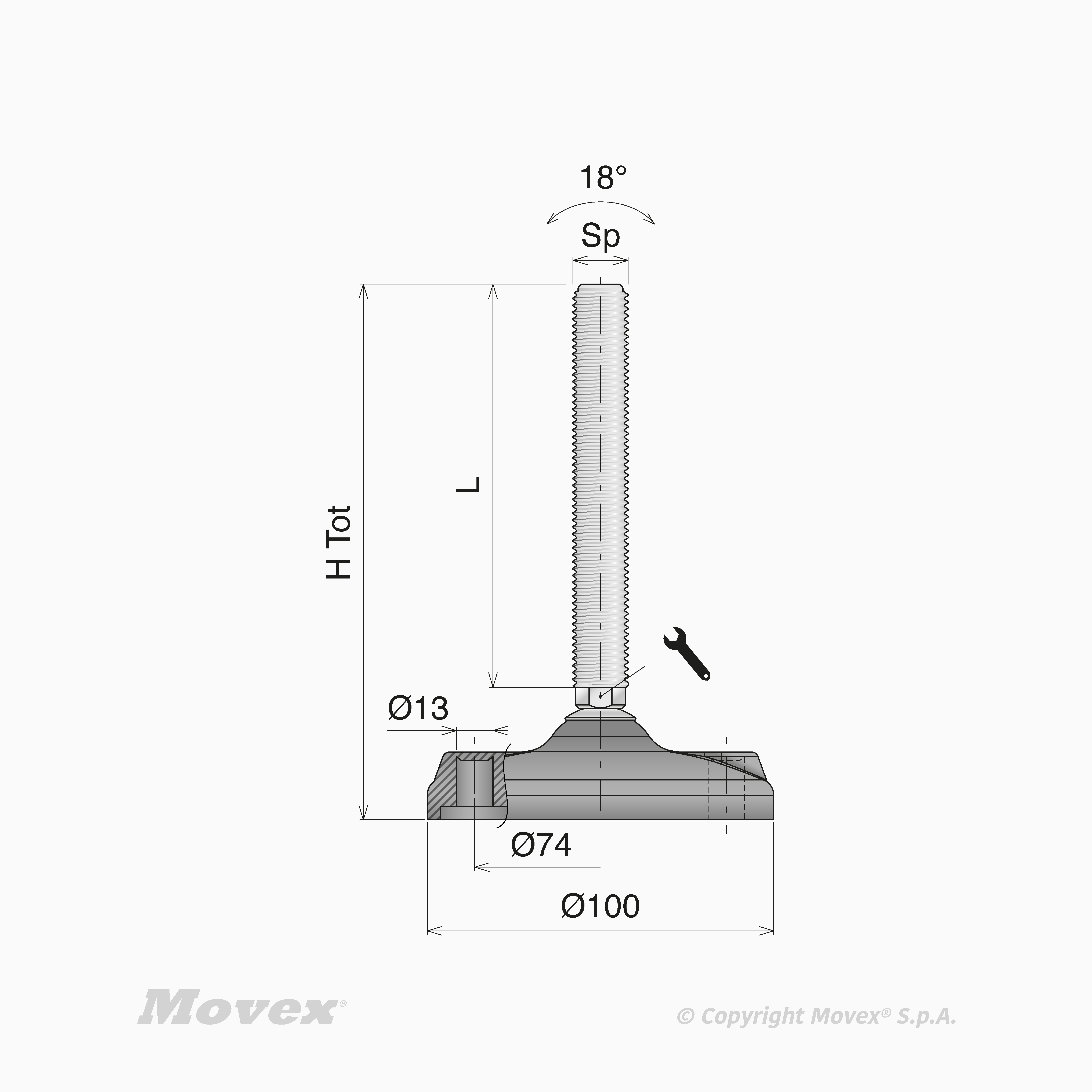

P400R Ø100 2 Fixing point

	L	Key slot	Spindle material	Thread size	H tot	Design	Key 1	Temperature range dry	Temperature range wet
Code										Actions
P91301	61 mm	Standard	Stainless steel	M16	100	Standard	13 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91301H	61 mm	Hexagonal	Stainless steel	M16	100	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91301Z	61 mm	Standard	Zinc Plated Steel	M16	100	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91301ZH	61 mm	Hexagonal	Zinc Plated Steel	M16	100	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91302	111 mm	Standard	Stainless steel	M16	150	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91302H	111 mm	Hexagonal	Stainless steel	M16	150	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91302Z	111 mm	Standard	Zinc Plated Steel	M16	150	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91302ZH	111 mm	Hexagonal	Zinc Plated Steel	M16	150	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91303	161 mm	Standard	Stainless steel	M16	200	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91303H	161 mm	Hexagonal	Stainless steel	M16	200	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91303Z	161 mm	Standard	Zinc Plated Steel	M16	200	Standard	13 mm	-20÷120 °C	-20÷120 °C
P91303ZH	161 mm	Hexagonal	Zinc Plated Steel	M16	200	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91401	84 mm	Standard	Stainless steel	M20	125	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91401H	84 mm	Hexagonal	Stainless steel	M20	125	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91401Z	84 mm	Standard	Zinc Plated Steel	M20	125	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91401ZH	84 mm	Hexagonal	Zinc Plated Steel	M20	125	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91402	134 mm	Standard	Stainless steel	M20	175	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91402H	134 mm	Hexagonal	Stainless steel	M20	175	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91402Z	134 mm	Standard	Zinc Plated Steel	M20	175	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91402ZH	134 mm	Hexagonal	Zinc Plated Steel	M20	175	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91403	184 mm	Standard	Stainless steel	M20	225	Standard	16 mm	-20÷120 °C	-20÷120 °C
P91403H	184 mm	Hexagonal	Stainless steel	M20	225	Standard	20 mm	-20÷120 °C	-20÷120 °C
P91403Z	184 mm	Standard	Zinc Plated Steel	M20	225	Standard	16 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91403ZH	184 mm	Hexagonal	Zinc Plated Steel	M20	225	Standard	20 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91501	83 mm	Standard	Stainless steel	M24	125	Standard	19 mm	-20÷120 °C	-20÷120 °C
P91501Z	83 mm	Standard	Zinc Plated Steel	M24	125	Standard	19 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91502	133 mm	Standard	Stainless steel	M24	175	Standard	19 mm	-20÷120 °C	-20÷120 °C
P91502Z	133 mm	Standard	Zinc Plated Steel	M24	175	Standard	19 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
P91503	183 mm	Standard	Stainless steel	M24	225	Standard	19 mm	-20÷120 °C	-20÷120 °C
P91503Z	183 mm	Standard	Zinc Plated Steel	M24	225	Standard	19 mm Max Load 15000 N	-20÷120 °C	-20÷120 °C
