Nosebars with rollers for 530 series
Nosebars
Description
Description
Dynamic NoseBars with Rollers and bearings are long-lasting component that increase the efficiency of the processing line.
Thanks to its sturdy stainless steel rollers, they are also the ideal choice for heavy load applications or high abrasive working conditions like dusts, liquids, etc.

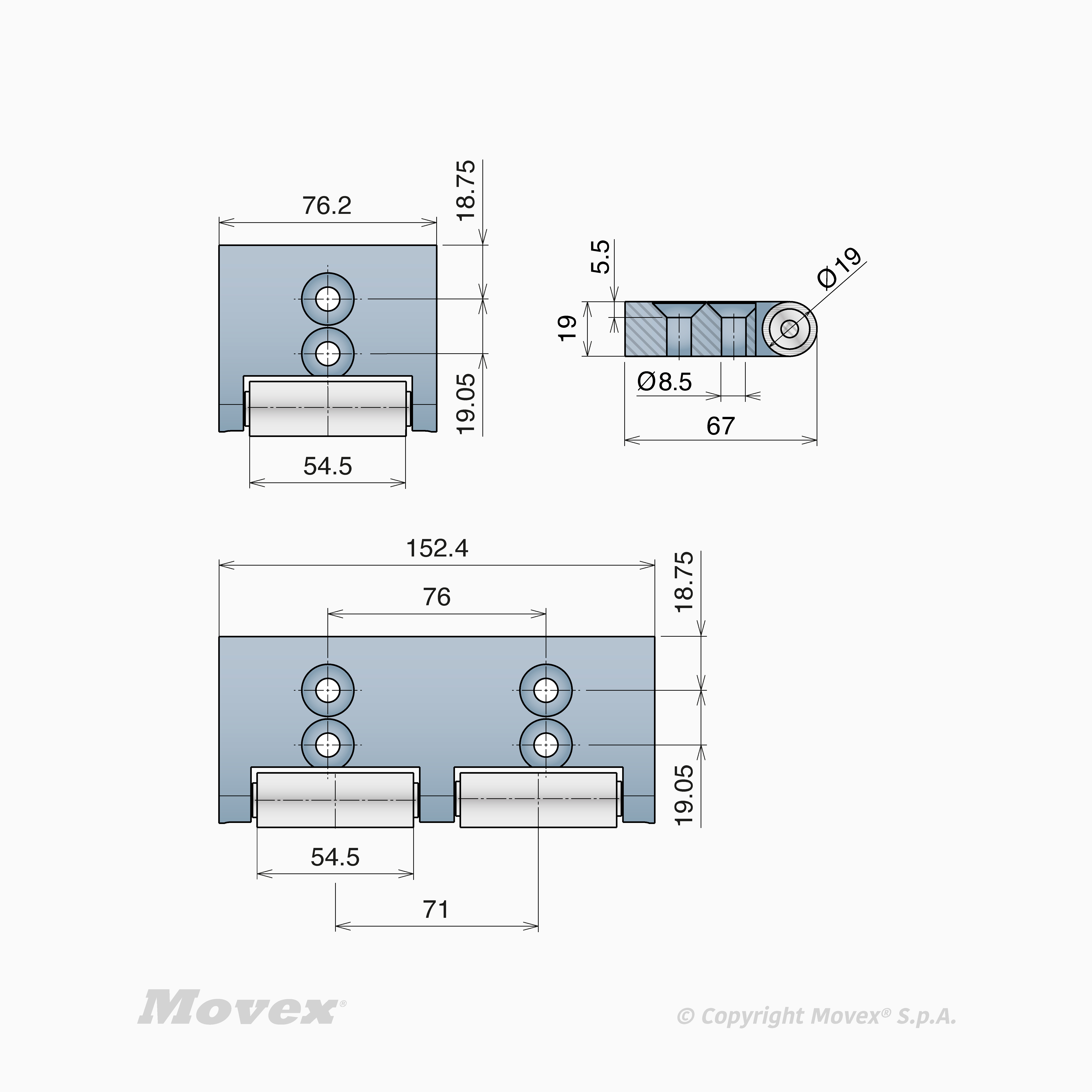

Available diameter: 19 mm; available also with grooves for positioners (only for 521 FT); can be machined to width, according your needs
Basic features
| Series: | 530 (LBP version excluded) |
|---|---|
| Type: | With rollers |
| Unit of measure: | Ea |
| Box: | - |
Nosebars with rollers for 530 series
| Version | Material | K | Temperature range dry | ||
|---|---|---|---|---|---|
| Code | Actions | ||||
| P22808B-1 | Standard | BluLub | 76,2 mm (3") | -40÷50 °C |
|
| P22809B | Standard | BluLub | 152,4 mm (6") | -40÷50 °C |
|
