Nosebars with bearings for 522 HD series
Nosebars
Description
Description
Dynamic NoseBars with Bearings help improving the line efficiency and grant a longer life compared to traditional ones, minimizing the coefficient of friction and generating less wear.
The rotating chrome steel bearings create an improved situation specific for high-speed applications.
Available diameters: 19 / 22 mm; available also with grooves for positioners; can be machined to width, according your needs
Basic features
| Series: | 522 HD |
|---|---|
| Type: | With bearings |
| Unit of measure: | Ea |
| Box: | - |

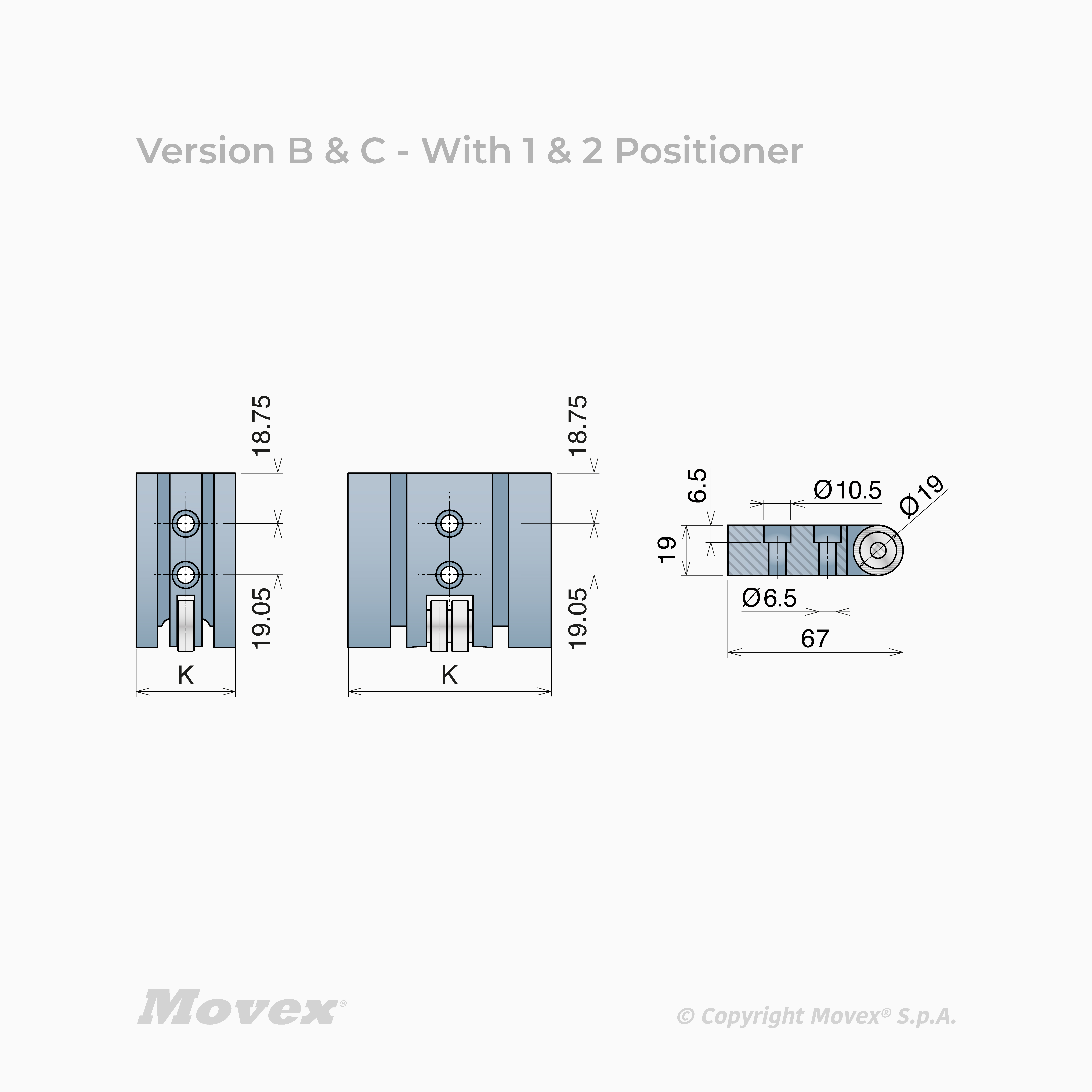

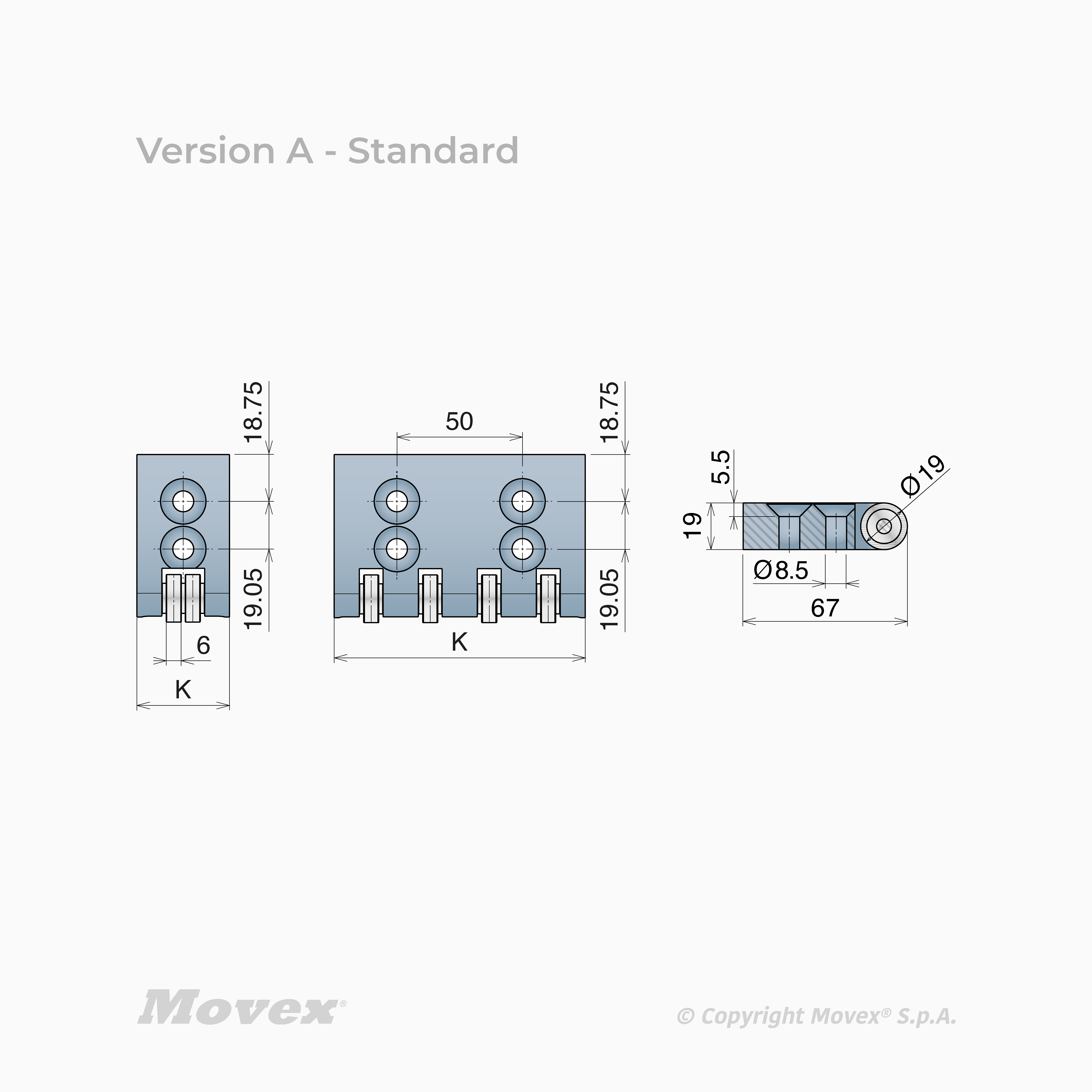

Nosebars with bearings for 522 HD series
| Version | Material | Type | K | Temperature range dry | ||
|---|---|---|---|---|---|---|
| Code | Actions | |||||
| P22850 | Standard | BluLub | A | 29 mm | -40÷50 °C |
|
| P22850P | With positioners | BluLub | B | 29 mm | -40÷50 °C |
|
| P22851 | Standard | BluLub | A | 34 mm | -40÷50 °C |
|
| P22851P | With positioners | BluLub | B | 34 mm | -40÷50 °C |
|
| P22852 | Standard | BluLub | A | 37 mm | -40÷50 °C |
|
| P22852P | With positioners | BluLub | B | 37 mm | -40÷50 °C |
|
| P22853 | Standard | BluLub | A | 51 mm (2") | -40÷50 °C |
|
| P22853P | With positioners | BluLub | B | 51 mm (2") | -40÷50 °C |
|
| P22854 | Standard | BluLub | B | 100 mm | -40÷50 °C |
|
| P22861 | Standard | BluLub | A | 76,2 mm (3") | -40÷50 °C |
|
| P22861P | With positioners | BluLub | B | 76,2 mm (3") | -40÷50 °C |
|
